Warranty ..............................12 Introduction Congratulations on the purchase of a quality MobileVision 7” LCD Monitor. This system has been designed to provide years of trouble-free operation. The information enclosed provides a quick reference of the operations and maintenance of the new monitor.
Monitor Features and Controls MENU LEFT RIGHT REAR 1. LCD Screen 6. Volume Down / Menu Item Adjustment Button: Press this button to decrease the 2. IR Sensor: Receives signal from the monitor’s volume. remote control. Note: When the menu is displayed, press this button to adjust the selected menu 3.
Remote Control Functions POWER MUTE VOLUME MENU 1. Power ( ): Press this button to turn the 6. Mute: Push to “Mute” the speaker. unit “On” or “Off”. 7. MENU: Press this button to select a 2. Volume : Press these buttons to desired menu.
General Operation (continued) Selecting a Camera View or Input Source to Monitor: Camera View: Select any camera view by pressing the SRC button. AUX, A/V Input (Front and Rear Panel Input): (Optional HAR-M130-AUX harness required.) Manually select the audio/video input by pressing the SRC button on the monitor until AUX appears in the display.
Front Panel Video Input (optional) Front Auxiliary Audio/Video Input You can connect the audio/video output signal of a digital camera, camcorder or video device. Select the auxiliary audio/video input mode by pressing the SRC button on the monitor until AUX 1 appears in the display. Optional cable from HAR-M130-AUX kit.
Wiring Diagram 8-Pin Din 13-Pin Din Red Wire: 12 Volt Switched 2 Amp Black Wire: Ground White Wire: Left Trigger Gray Wire: Right Trigger Green Wire: Rear Trigger Rear View Camera (Model: C125, Optional) Rear Camera (Green) Right View Camera (Model:C-SDR, Optional)) Right Camera (Gray) Left View Camera...
Wiring Diagram (continued) Optional: Optional cable from HAR-M30 AUX 8-Pin Din kit not included 13-Pin Din Optional Video Player or Accessory Video Out Yellow RCA: Video In Audio Out White RCA: Audio Right In (mono) IR Control Black 3.5mm Socket: IR In Orange Wire: Connect to the Vehicle’s (+) Dimmer Switch Output...
Installation Instructions The monitor can be mounted via a pedestal-mount, U-support bracket or a flush-mount. Pedestal Mounting the Monitor 1. Loosen the thumb wheel on the base support so the nut attached to the thumb wheel can slide into the monitor’s mounting channel. 2.
Installation Instructions Flush Mounting the Monitor 1. Locate a suitable location for mounting the monitor (In-Dash, In-Wall, Headrest, etc.). Then cut a 7-3/8” (W) x 5” (H) opening and insert and secure the flush-mount housing. 2. After securing the housing, insert the monitor into the housing. Do Not Apply Pressure Directly to the LCD Monitor’s Screen.
Maintenance Although this monitor requires little care, you can still maintain its condition and performance by following these steps: • Keep the system away from excessive moisture, extreme heat or cold, and magnetic fields. • Occasionally clean the monitor screen with a damp soft cloth. Should you experience any problem with the system please refer to the troubleshooting guide prior to returning your system for repair.
Need help?
Do you have a question about the M130C and is the answer not in the manual?
Questions and answers
Adjustment of rear mirror cameras

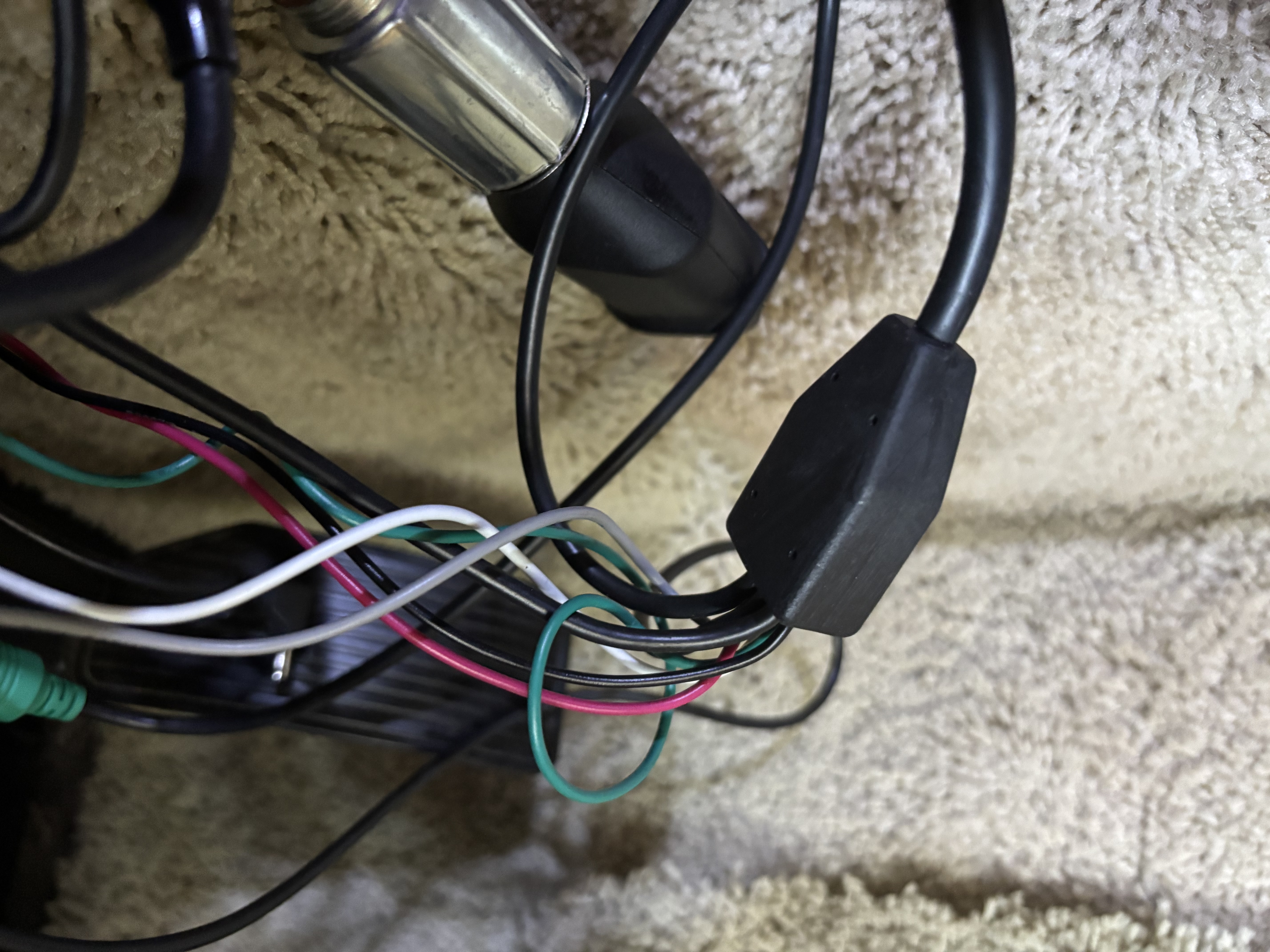

My left camera is not working and it appears to be the switch. Do you carry a switch for a mobile vision model 130C
