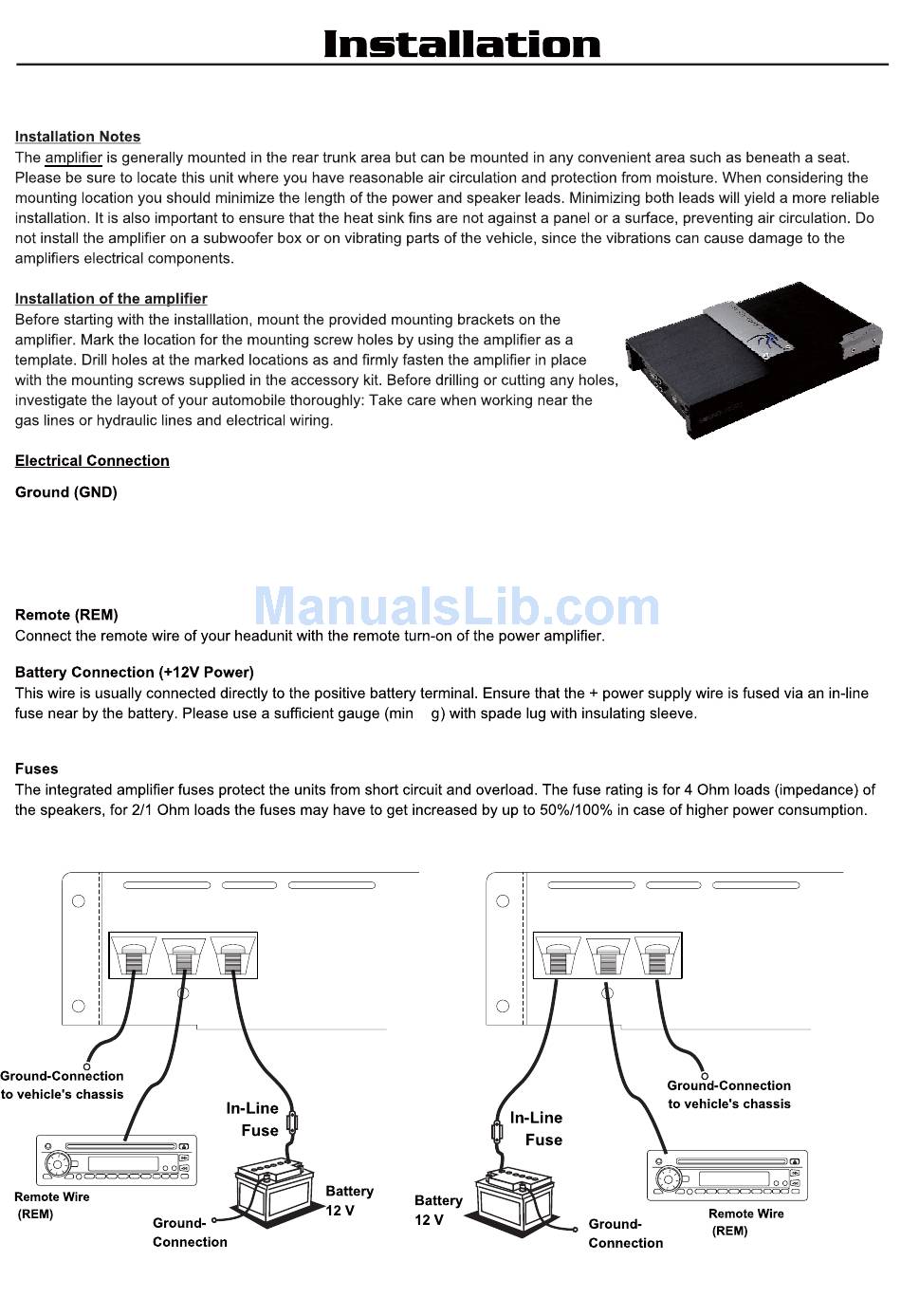

This wire is the electrical ground and must be fastened securely to the vehicle chassis. The best method is to use a threading
sheet metal screw since the threads cut into bare metal. Ensure that all paint or other insulationis removed from around the hole
area, and using self tapping screw, securely affix the ground wire to the vehicle chassis using an appropriate ring terminal. Use
as short a piece of cable as possible - use the same gauge as was used for the +12V cable. Make sure that the connection is
safe and stable.
The In-line fuse should have an amperage rating totaling the on-board fuse ratings of all amplifiers and processors receiving power...
P4.260/P4.500/P4.800
GND
REM
POWER
+
12V
INPUT
4
P2.160/P2.200/P2.400/P4.140/P5.610/
P1.210/P1.600D/P1.1000D/P1.1200D/P1.1500D
+
12V
POWER
REM
GND
INPUT
