Summary of Contents for Harvia harmonia

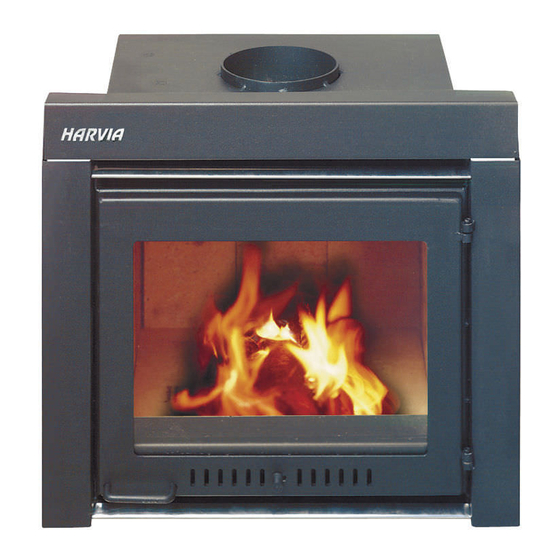

- Page 1 HARVIA FIREPLACES, FIREPLACE INSERTS AND IRON STOVES Instructions for installation and use FIREPLACES TERMIA NOSTALGIA MINI FESTIA HARMONIA FIREPLACE INSERTS HARVIA 550 HARVIA 400 HARVIA 650 IRON STOVE Harvia Oy PL 12 FIN-40951 Muurame www.harvia.fi HARVIA 10 16042003W...
-
Page 2: Table Of Contents
Harvia fireplaces and iron stoves ........4 Fireplace structure ..........4 Iron stove structure ..........4 Input of combustion air ..........4 Using Harvia fireplaces and iron stoves ......5 Fuel ..............5 Heating ..............5 Removing the ash ........... 5 Maintenance ............ -
Page 3: Harvia Fireplaces And Iron Stoves
The extended flame channel in the top part of the Fireplace structure heating chamber contributes to the efficiency of the To increase safety and comfort of use, all Harvia hot plates in the iron stoves and makes the stoves fireplaces feature double sheathing. This allows the air excellent for heating room air. -
Page 4: Using Harvia Fireplaces And Iron Stoves
Fuel is too much ash in the chamber. Harvia’s fireplaces and stoves can use wood (with a length of 20–30 cm), wood and peat briquettes, and Removing the ash combustible waste such as paper and cardboard. The We recommend removing the ash before each time of fuel must be dry. -
Page 5: Installing Harvia Fireplaces And Iron Stoves
The smoke flue can be connected to the top or back of planning the location. Harvia’s fireplaces, and to the top, back or sides of The space required for installation consists of the Harvia’s iron stoves. The fireplaces and stoves... -
Page 6: Installation Of Harvia Fireplace Inserts
Harvia’s protective sheath for fireplaces is also a good chamber must be designed so that both its size and option. Brochures can be obtained from your retailer. - Page 7 Surface temperature category Safety distance mm Category of furnace Surface Horizontally Down or component temperature ºC Warm surface Max. 80 Hot surface Over 80-140 Scalding surface Over 140-350 Glowing surface Over 350-600 1000 1200 1000 1) Single lightweight shields shorten the safety distance by 50% and double shields by 75%.
-
Page 9: Technical Data
Technical data FIREPLACES FIREPLACE INSERTS IRON STOVES HARVIA 650 HARMONIA FESTIA TERMIA HARVIA 550 HARVIA 400 HARVIA 10 NOSTALGIA MINI RATED POWER kW ROOM 30-250 10-130 10-100 20-100 15-65 10-50 20-200 50-600 WEIGHT KG ca. 80 ca. 65 ca. 50 ca.
