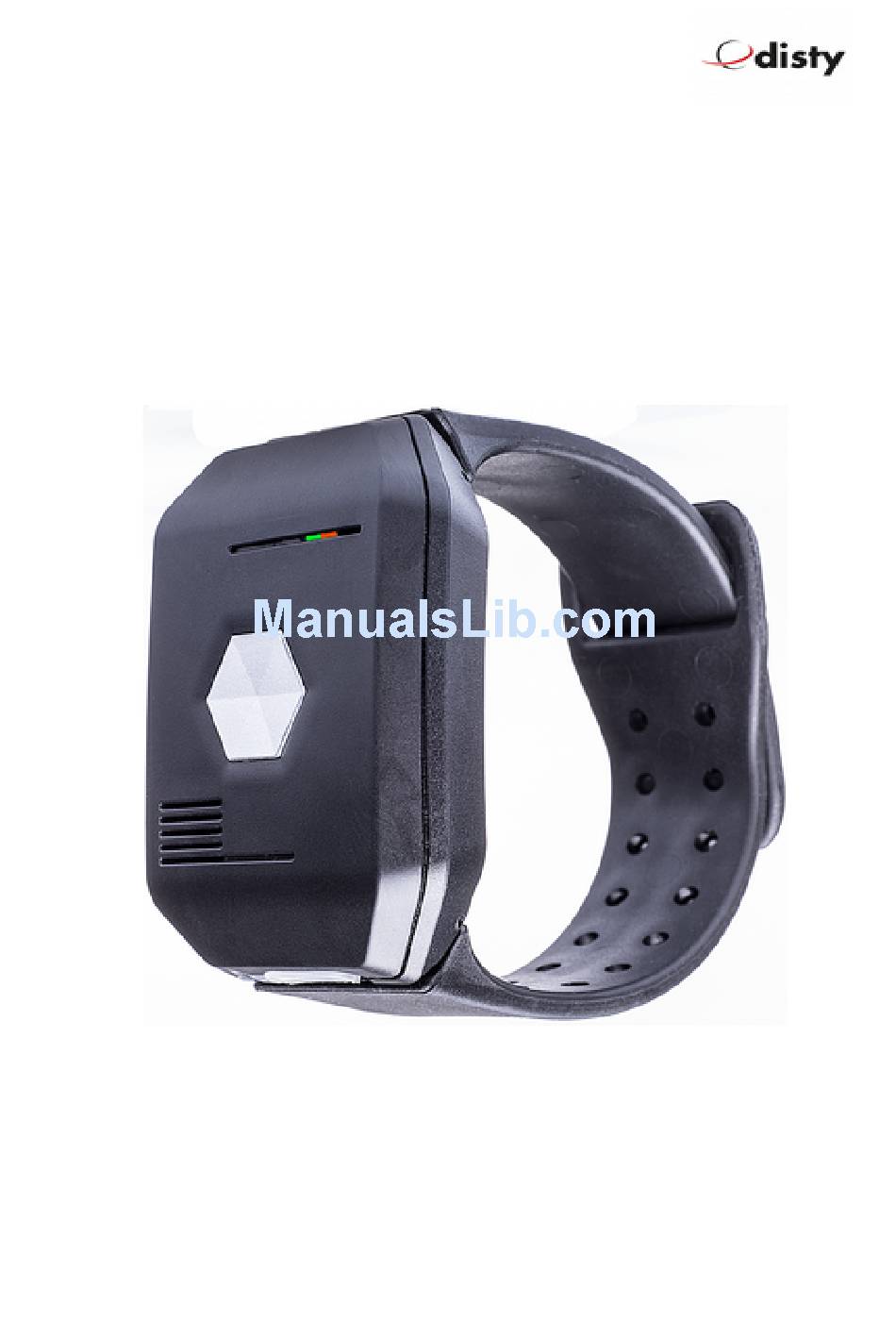

- Page 1 distyNotruf Ascom Operating Instructions...
-
Page 2: Table Of Contents
Table of contents Safety instructions.......................1 Intended use......................1 Notes on lithium - ion batteries.................1 Recycling and Disposal...................1 General........................2 Application........................3 ASCOM – Protocol (DECT location service per SMS)............4 Various ways to wear the tag..................5 Putting into operation....................6 Subscription.......................6 ASCOM system/multi - cell system................7 Configuration......................7 Unsubscription......................8 Factory setting......................8... -
Page 3: Safety Instructions
DistyNotruf Ascom, operating instructions Safety instructions Intended use This unit is foreseen for communication in a DECT - provided installation. The user must be instructed on the use of this device. Do not use the device under extreme environmental conditions. Use only accessories and replacement parts supplied by us. -
Page 4: General
DistyNotruf Ascom, operating instructions General To maintain an overview over the position of a stranger or staff in a difficult or dangerous environment at all times, the DECT installation is complemented by a localization function. This requires a mobile unit distyNotruf pro that is fastened e.g. to the wrist, belt or the protective helmet. -
Page 5: Application
DistyNotruf Ascom, operating instructions Application Page 3 of 24... -
Page 6: Ascom - Protocol (Dect Location Service Per Sms)
DistyNotruf Ascom, operating instructions ASCOM – Protocol (DECT location service per SMS) ASCOM - Beacon - service Page 4 of 24... -
Page 7: Various Ways To Wear The Tag
DistyNotruf Ascom, operating instructions Various ways to wear the tag The distyNotruf pro can be worn or fastened to your body in three different ways. a paper clip, into the outside of the hole from the tag so that the spring bar can be removed. -
Page 8: Putting Into Operation
DistyNotruf Ascom, operating instructions Possibility 3: Fastening with the Neckband Mount the belt clip as described above and connect the snap hook through the hole of the clip. Close the lock and it should now look like the picture on right hand side. The lock will open automatically, if the neckband is pulled with too much force. -
Page 9: Ascom System/Multi - Cell System
DistyNotruf Ascom, operating instructions ASCOM system/multi - cell system Normally, the distyNotruf pro is subscribed as described in the previous chapter. The system has already been activated for subscription. The system administrator enters the new terminal device into the system. Is the distyNotruf pro required to function in a specific facility? If yes, please follow the following instructions. -
Page 10: Unsubscription
DistyNotruf Ascom, operating instructions Unsubscription The logical disconnection of the distyNotruf pro and the DECT base station is done by deleting the DECT subscriber in the base station. This process also includes the removal of relevant data in the distyNotruf pro through the DECT protocol as long as the function is supported by the base station. -
Page 11: Requesting/Setting Parameters & Functions
The programming tool ( ‘disty Programmer App’ ) can be downloaded from the homepage of the company Disty. Save it in a folder of your choice and activate it. A window will appear with the question: Execute or Cancel. Clicking on Execute will open up the operating program. - Page 12 DistyNotruf Ascom, operating instructions The App has the sheet “PC-COM” selected. This is the default after start of the program. On this sheet the appropriate COM port should be selected via the drop-down list. With the upper left button the APP starts into programming mode. The lower line, which shows the hint and/ or status gives the command to insert the distyNotruf pro.
- Page 13 DistyNotruf Ascom, operating instructions As an Example: alarm number: go to sheet 'Configuration 1' • write the appropriate number, which shall be dialed by pressing the alarm button, • into the field 'Alarm number' initiate the transmission by clicking the 'write' button •...
-
Page 14: Performance Characteristics (Features)
DistyNotruf Ascom, operating instructions Performance characteristics (features) For setting or activation through ‘disty Programmer App’, see preceding chapter. Exchange of messages via SMS and the Beacon service are possible only during operation with ASCOM facilities. Emergency call (default: disabled) If the button is pressed for longer than 3 seconds in a normal state, a link will be established with a programmed number;... -
Page 15: Dect Activity (Default: Disabled)
DistyNotruf Ascom, operating instructions DECT Activity (default: disabled) DECT remains switched off during charging. This can be modified through the configuration data in such a way that the device remains switched on also during charging ( see Function 24.2 ) Moreover, the event “Set in CS”... -
Page 16: Announcement Tone Off (Ring Tone, Default: Disabled)
DistyNotruf Ascom, operating instructions The values for “threshold” and “time out” can be set through configuration. The profile can be adapted to needs by varying parameters and timeout. Timeout time can be set in this case, between 20 and 254 seconds. The ‘man down’... -
Page 17: Performance Characteristics "Hospital" (Default: Disabled)
DistyNotruf Ascom, operating instructions Performance characteristics “Hospital” (default: disabled) The feature is described as follows: Alarm case Patient presses button → distyNotruf pro is switched on for at least 10 minutes and • → dispatches a SMS message ( Alarm & Coordinates, depending on configuration) Patient receives visual and acoustic feedback •... -
Page 18: Call Setup (With Oapt - Interface)
DistyNotruf Ascom, operating instructions Call setup (with OAPT – interface) Call setup SMS: if a SMS with the content (PTP)CS;A=12345;S=0 is sent to the distyNotruf pro, it calls the subscriber 12345. With an additional parameter only the microphone is enabled. No optic/acoustic indication will be observed at the distyNotruf pro, when a SMS with this parameter setting is sent. -
Page 19: Configuration Via Microphone
DistyNotruf Ascom, operating instructions To avoid disturbing noises during transmission, it is advisable to switch off the microphone of the transmitting device. Configuration via microphone To configure a distyNotruf pro without programming station, it is possible to adjust the parameter sent by DTMF tones through the microphone. This may be necessary if the base station uses an AC, which differs from the default setting. -
Page 20: Sms - Messages (@ Oapt, 2011-12-05)
DistyNotruf Ascom, operating instructions SMS - messages (@ OAPT, 2011-12-05) For a complete overview of the implemented protocol, please refer to the documents SSD – Ascom IP-DECT concept (B).pdf • SSG-Bedienungsanleitung.pdf • SSG-COTA.pdf (COTA = Configuration Over The Air) • Locate Request/ Locate Query (handling of coordinates) The following text will be sent to our distyNotruf pro as a SMS: (PTP)LQ;Z=1... - Page 21 DistyNotruf Ascom, operating instructions Removing from Charger <?xml ...> <User_data> <Data>(PTP)AI;Z=58;B=9014BC1008:50;F=1</Data> </User_data> <...> Acceleration detection (motion detection) <?xml ...> <User_data> <Data>(PTP)PA;Z=33;B=9014BC2009:50;D=3</Data> <...> Man Down <?xml ...> <User_data> <Data>(PTP)PA;Z=88;B=9014BC1008:51;D=2</Data> <...> Alarm (button, Personal Alarm, user initiated) <?xml ...> <User_data> <Data>(PTP)PA;Z=77;B=9014BC300A:47;D=1;C=01C7:0001;C=0002:99</Data> <...> Testalarm (button, Personal Alarm, test) <?xml ...>...
- Page 22 DistyNotruf Ascom, operating instructions Special location alarm (Trigger via 9dLD) <?xml ...> <User_data> <Data>(PTP)LI;Z=55;B=9014BC2009:50;C=0002:1;C=0E23:65535</Data> </User_data> <...> Battery low <?xml ...> <User_data> <Data>(PTP)DS;Z=44;B=9014BC1008:63;H=1;C=002A:20</Data> </User_data> <...> It is allowed, to send the protocol element ‚H‘ together with other SMS – messages. The range of the reference numbers = 01..99, decimal notation. The Beacon –...
-
Page 23: Charging
DistyNotruf Ascom, operating instructions Charging Charging takes approximately 4 hours for a complete charging cycle. Power supply plug: 5 VDC, 500 mA (Type Europlug KA 1504001) • Operating temperature: 0 °C to + 35 °C • Storage temperature: - 20 °C to + 60 °C •... -
Page 24: Package List
Green and red LED illuminate station and is ready for data transmission Package list The following items will be found together with the distyNotruf pro in the box. distyNotruf pro Ascom • two spring bars (mounted) • Bracelet (mounted) •... -
Page 25: Technical Data
• Product approval/ mark Disty communications GmbH hereby declares that the distyNotruf pro conforms to the fundamental requirements and other relevant regulations stated in Directive 1999/5/EU ( Radio and Telecommunication Terminal Equipment, R&TTE ). Conformity is declared by the CE mark. - Page 26 DistyNotruf Ascom, operating instructions Operating instructions distyNotruf pro Ascom http://www.disty.eu All rights to changes reserved! Any copy from this document needs a written permission! disty communications gmbh Holzkoppelweg 14 D - 24118 Kiel Version 1.1 Germany Edition 11/ 2016 Page 24 of 24...
