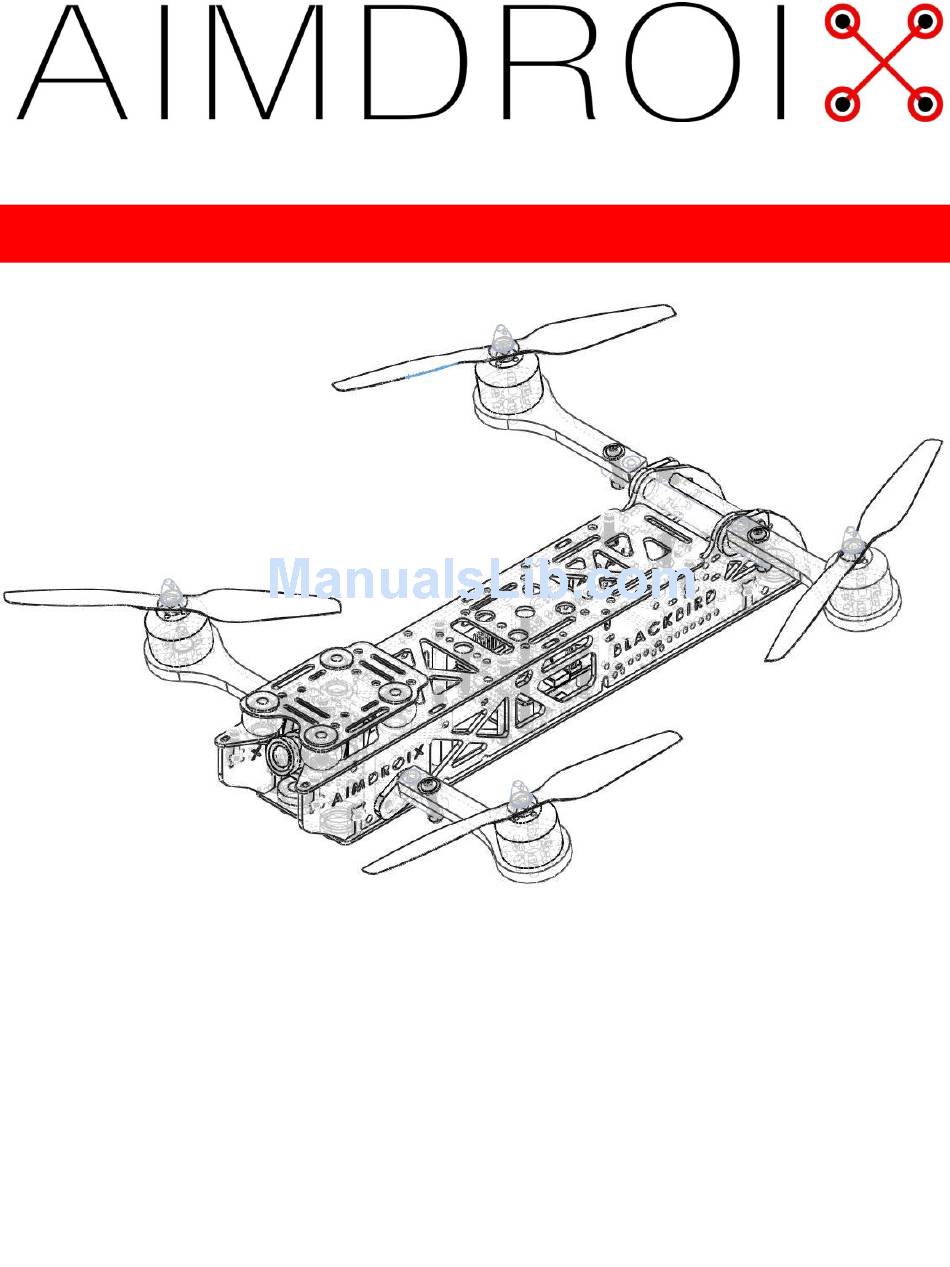

- Page 1 BLACKBIRD 250 INSTRUCTION MANUAL...
- Page 2 · Rubber landing supports for low profile flying and soft landing. · Arms accept any mini size motors with mounting dimensions of M2 12mm-16mm and M3 12m to 19mm · Mini Hex upgradable with optional Hexa arms kit · Full support of AIMDROIX optional accessories.
- Page 3 REQUIRED PARTS *Images are not at real scale*...
- Page 4 FASTENERS Threadlock Recommended (TL) M3 x 20mm M3 x 16mm M3 x 12mm M3 x 8mm M3 x WASHER M3 x 6mm PLASTIC M3 NYLON 8mm PLASTIC 39mm 32mm M3 PLASTIC NUT LOCK NUT SPACER STANDOFF STANDOFF...
- Page 5 LANDING SUPPORTS SIDE PLATES TO BOTTOM PLATE M3 NUT M3x12...
- Page 6 TOP TO BOTTOM PLATE STANDOFFS 32mm STANDOFF M3x6 M3x6 PDB AND FC ASSEMBLY M3 PLASTIC NUT IS NOT NECESARRY TO INSTALL THE FLIGHT CONTROLLER ON THIS STEP. IT’S SHOWN ONLY AS A REFERENCE. 8mm PLASTIC SPACER M3 x 20mm PLASTIC...
- Page 7 ARMS SHAFTS ASSEMBLY REAR ARM FIXING PLATE APPLY CA GLUE 17mm REAR SHAFT FRONT SHAFT ARM TO FRAME ASSEMBLY...
- Page 8 ARMS 39mm standoff 39mm standoff ARMS TO SHAFT M3x16 WASHER M3 Nylon lock X 8...
- Page 9 MAIN FRAME ASSEMBLY IS NOW COMPLETE AT THIS LEVEL, YOU CAN NOW START INSTALLING THE MOTOR S, ESC, RECEIVER, AND OTHER ELECTRONICS THAT YOU WANT TO HAVE IN YOUR BLACKBIRD 250. CAMERA PLATE...
- Page 10 FPV CAMERA BRACKET NOT INCLUDED. WE OFFER CUSTOM MOUNT FOR FPV CAMERAS THAT DOESN’T HAVE A MOUNTING BRACKET . PLEASE CONTACT US AT M3 Nylon lock support@aimdroix.com CAMERAS AND VTX CONFIGURATION EXAMPLE MOBIUS OR RUNCAM HD CAMERA WE ARE WORKING HARD TO COMPLETE THIS MANUAL .
