AIMDROIX EVO ONE Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

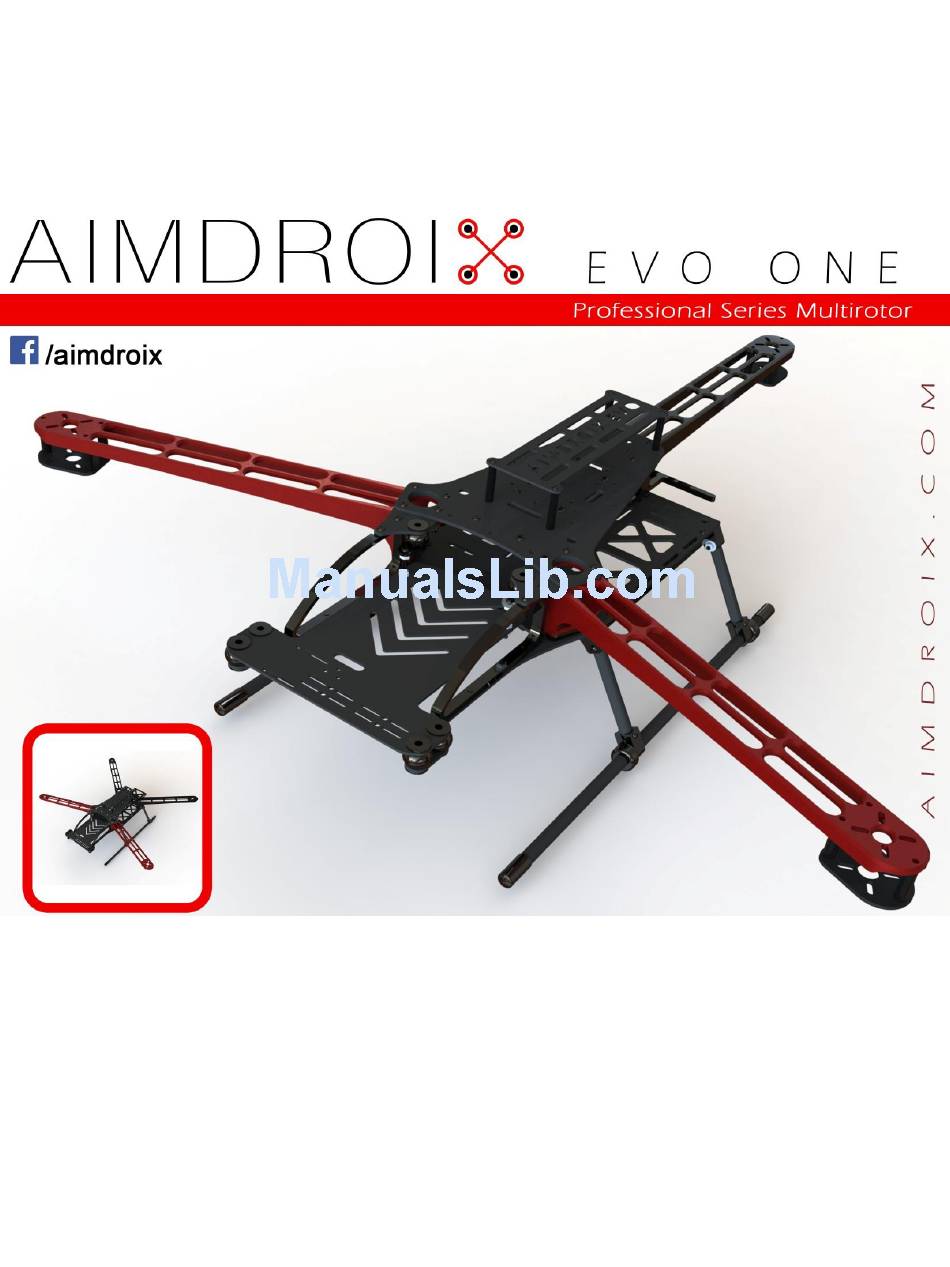

INSTRUCTION MANUAL
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the EVO ONE and is the answer not in the manual?

Questions and answers

Related Manuals for AIMDROIX EVO ONE

Summary of Contents for AIMDROIX EVO ONE

  • Page 1 INSTRUCTION MANUAL...
  • Page 2 With this in mind, a high stiffness frame was developed by using the exclusive aluminum beam stiffeners and an integrated aluminum landing gear frame. As an AIMDROIX signature, CNC aluminum parts are all around the frame giving the frame its distinctive look and performance of AIMDROIX.
  • Page 3 SPECS Y6 Specs: - Frame size: 610mm (with extended length arms) -Max props size:16in on top motor / 15in props on lower motor. -1.5mm and 2mm G10 plates. (Optional 1.5mm Carbon fiber plates) -Aprox frame weight: 670g - Battery space between plates: 160 x 50mm x 40xmm (LxWxH) - Large battery capacity under the bottom plate, up to 180mm x105mmx 60mm (LxWxH).

  • Page 4: Required Parts

    REQUIRED PARTS *Images are not at real scale* *Not included in base kit* *Not included in base kit*...
  • Page 5 REQUIRED PARTS II *Images are not at real scale* *Not included in base kit* *Not included in base kit*...
  • Page 6 FASTENERS Threadlock Recommended (TL) M3 x 16mm M3 x 12mm M3 x 6mm M3 x 4mm M3 x 25mm M3 x 7mm HEX M3 NYLON M3 x NUT M3 x WASHER M2 x 8mm M2 x 14mm LOCK NUT...

  • Page 7: Arm Assembly

    ARM ASSEMBLY M3X6 M3x6 FLAT TOP PLATE M3x6...
  • Page 8 TOP PLATE M3x6 ARMS AND TOP PLATE ASSEMBLY...
  • Page 9 FRONT ARMS ASSEMBLY M2.5x8 REAR ARM ASSEMBLY M2.5x8...

  • Page 10: Vibration Isolation

    VIBRATION ISOLATION CAMERA SUPPORT...
  • Page 11 VIBRATION ISOLATION BALLS CAMERA SUPPORT TO TOP ASSEMBLY M3x4 M3x6...
  • Page 12 CAMERA PLATE HARDWARE M3x25 Camera Plate Hardware M3 Nylon lock COMPLETE TOP ASSEMBLY...
  • Page 13 LANDING GEAR FRAME M3x6 LANDING GEAR FRAME M3x12...
  • Page 14 BOTTOM PLATE TO LANDING GEAR FRAME M3x5 FLAT M3x6 BOTTOM PLATE SUPPORTS M3x12...
  • Page 15 BOTTOM PLATE SUPPORTS M3x6 LANDING LEG M3 Nylon Lock M3x16 *Optional: Use M3 Washers between fastener to part...
  • Page 16 LANDING SKID 65mm LANDING SKID -LEG M3x16 M3 NYLON LOCK NUT *Optional: Use M3 Washers between fastener to part...
  • Page 17 TOP AND BOTTOM ASSEMBLY...
  • Page 18 RAER ARM – LEANDING GEAR M2.5x14 FOREARMS – LANDING GEAR M2.5x14...
  • Page 19 COMPLETE TOP AND BOTTOM ASSEMBLY...
  • Page 20 CAMERA PLATE – FRAME M3 NUT CAMERA PLATE – FRAME M3 NYLON LOCK NUT...

  • Page 21: Final Assembly

    AIMDROIX COVER PLATE M3X6 *Install after electronics installation* FINAL ASSEMBLY Congratulations, you have completed the assembly of your new Aimdroix Evo One Frame!
