Big Shot™
ULTRA SHORT THROW SMART PROJECTOR

Advertisement

Table of Contents
loading

Related Manuals for Brookstone Big Shot

Summary of Contents for Brookstone Big Shot

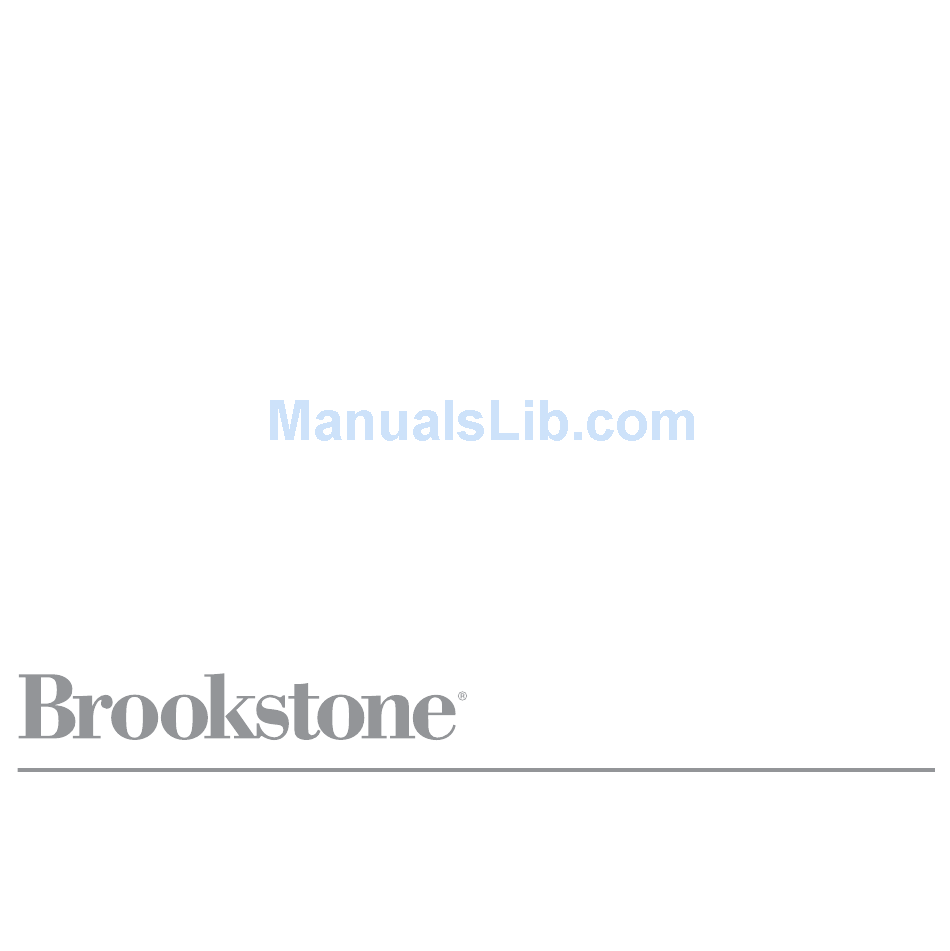

  • Page 1 Big Shot™ ULTRA SHORT THROW SMART PROJECTOR...
  • Page 2 Brookstone assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice. All trademarks referenced herein are the property of their respective owners.

  • Page 3: Table Of Contents

    Contents Caution ............2 Warning! .

  • Page 4: Caution

    Caution • TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. THERE ARE NO SERVICEABLE PARTS INSIDE • TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. The lightning flash with arrow-head symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage”...
  • Page 5 Danger To reduce the risk of electric shock, burns, fire or injury: 1. Do not use while bathing or in a shower. 2. Do not place or store unit where it can fall or be pulled into a tub or sink. 3.
  • Page 6 7. The unit should be situated away from direct sunlight or heat sources such as radiators, electric heaters, heat registers, stoves, or other units (including amplifiers) that produce heat. Avoid placing on top of stereo equipment that radiates heat. 8. Never block the air openings of the unit with materials such as clothing, plastic bags or papers, or place it on a soft surface such as a bed or couch, where the air openings may be blocked.

  • Page 7: Warning

    Warning! • Do not store this product in high temperatures, damp areas, or in direct sunlight. • Never disassemble the product. • Never dispose of the product in fire or water, which may result in explosion and/or injury. • Keep product out of reach of children. •...

  • Page 8: Fcc Information

    fCC information This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 9 interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: •...

  • Page 10: Location Of Parts And Controls

    LoCation of parts anD ControLs 1. USB (5V/1A) 5. HDMI 3 2. Bluetooth Reset 6. 3.5mm Audio Out 3. HDMI 1 7. Kensington Security Slot 8. Power port 4. HDMI 2 2 3 4 5 6 7 8...
  • Page 11 LoCation of parts anD ControLs 9. Lens 10. Status light 11. Power button 10 11...

  • Page 12: Specifications

    SPECIFICATIONS Product Dimensions 10.4” x 6.6” x 3.9” Brightness 200 Lumens Lamp Life LED lamp with up to 20,000 hours Focus Auto Image Size Up to 120” projected image (30" from the wall) Min Distance 13" from projection surface (60" projected image*) Throw Ratio 0.33 Contrast Ratio...

  • Page 13: Operating The Remote

    operating the remote PAiRing THE REMOTE The projector is primarily controlled through the included remote. To pair the remote: important: The distance between the remote and the projector should be 6.5 feet or less. 1. Plug the power cord into the projector and the other end into a wall outlet.

  • Page 14: Controls And Functions

    4. Press and hold the volume up (+) and volume down (-) buttons on the remote. The red light on the remote will blink as the remote pairs with the projector. • When paired, the remote icon on the projector's home screen will appear blue .
  • Page 15 8. [oK] Select a menu option 9. [Back] Return to the previous screen 10. [Battery door] 11. [volume up] Increase volume 12. Press [input] to launch the input selection pop up menu. Press and hold for [auto focus] to calibrate the projector's focus.

  • Page 16: Operating The Projector

    operating the projeCtor LAngUAgE 1. Select "Settings" from the projector's home screen. 2. Scroll to "About this projector" on the settings menu. 3. Select the "Language" option. 4. Scroll to the desired language and select. dATE And TiME 1. Select "Settings" from the projector's home screen.

  • Page 17: Projecting Content

    3. Select "Scan" to search for nearby available networks. 4. Select the desired network from the listed options. 5. Enter any required network credentials, then select "Connect." Allow the projector and the network a few seconds to sync. 6. Press the "Home" button on the remote to return to the projector's home screen.
  • Page 18 STANDALONE STREAMING important: Some apps require payment or a subscription to access content. App availability can change. Streaming speeds will vary based on your internet connection. 1. Connect the projector to a wireless network (see "WiFi Connection" on page 14). Downloading apps 2.
  • Page 19 TIP: To navigate and enter passwords for many apps, enable the remote’s mouse mode. Mouse mode will allow the remote to show an on screen cursor, similar to a typical computer mouse. Press the “Mouse” button on the remote to turn mouse mode on or off. For mobile version Apps in the App center, long press "ok"...
  • Page 20 HDMI CONNECTION The projector can be connected to a variety of devices such as smart phones, tablets, laptops, media streamers, and digital cameras via HDMI. important: Devices that do not have an HDMI port will require an adapter to connect or may need to be connected wirelessly. To determine what type of adapter you need to use, reference "What do I need to connect?"...
  • Page 21 note: When connecting a laptop or computer, a multiple display option must be enabled in your display settings. What do i need to connect? source Device needed to Connect Apple iPad , iPhone and iPod touch Apple digital AV adapter (not included) and ®...
  • Page 22 WIRELESS CONNECTION The projector can be connected to some smart phones and tablets via a wireless connection. android Devices important: Android devices require Android OS 4.4 or later and the wireless screen mirroring capability to connect wirelessly with the projector. 1.
  • Page 23 .PPTX files, .KEY files, and .PDF files through the Brookstone Wireless Mobile Projector App. 1. Connect the projector to a wireless network (see the "WiFi Connection" on page 19 of this manual).
  • Page 24 Brookstone Wireless Mobile Projector App on the iOS device. tip: If you don't see the content you wish to project in the folders inside the Brookstone Wireless Mobile Projector App check that the content is a compatible file type. If the file is compatible, AirDrop the file to the app.

  • Page 25: Audio

    AUdiO The projector has built-in speakers that will be automatically used for sound when the projector is powered on. Optionally, connect an external speaker for bigger sound with the 3.5mm audio out port or wirelessly with a Bluetooth speaker. CONNECTING AN EXTERNAL SPEAKER 1.

  • Page 26: Image Adjustments

    CONNECTING A BLUETOOTH SPEAKER 1. Set the Bluetooth speaker to discoverable mode. 2. Select “Settings” from the projector’s home screen. 3. Scroll down to “Bluetooth” on the settings menu page. 4. Select “Search for devices.” 5. Select your Bluetooth speaker from the list of available devices.
  • Page 27 MANUAL FOCUS ADJUSTMENTS 1. Select "Settings" from the projector's home screen. 2. Scroll to "Focus" on the settings menu. 3. Select the "Manual Focus" and use the left (‹) or right (›) buttons on the remote to adjust the focus to the desired level MANUAL KEYSTONE ADJUSTMENT 1.

  • Page 28: Check Internal Storage Capacity

    CHECk inTERnAL STORAgE CAPACiTy 1. Select "Settings" from the projector's home screen. 2. Scroll to "Apps" on the settings menu. The internal storage capacity and free space are shown on the bar at the bottom of the screen. using the projeCtor as a speaKer The projector's built-in internal speakers can be used as a Bluetooth speaker.

  • Page 29: Cleaning The Lens

    CLeaning the Lens An optical lens cleaning solution can be used to clean the projector’s optical lens. Apply a small amount of the cleaning solution to a clean soft cleaning cloth and gently wipe the lens in a circular motion. important: Do not apply cleaning solution directly to the lens.

  • Page 30: Troubleshooting

    2. Scroll to "About this projector " on the settings menu. 3. Select "Factory data reset." 4. Select "Erase everything" and allow the projector a few moments to erase all the data on the projector and restart. trouBLeshooting the projected image is blurry. •...
  • Page 31 the projector is not connecting to your wireless network. • Check that you have selected the correct wireless router name in the setup menu. • Check that you are inputting the correct password if your network is security enabled (passwords are case sensitive). •...
  • Page 32 connected properly. Also check that the Bluetooth speaker is not muted. the projector’s remote control isn’t functioning. • If the status light on the remote flashes each time your press a button on the remote, the problem is not with your remote. •...
  • Page 33 - If connected to a laptop or computer, check your display settings to ensure a multiple display option is selected. - If connected to a gaming console, power down the console and the projector. Check that the HDMI compatible cable is securely connected to the HDMI port on the projector and to the HDMI port on the gaming console.

  • Page 34: One (1) Year Limited Warranty

    (“Warranty Period”). If a defect arises and a valid claim is received within the Warranty Period, at its option, Brookstone will either 1) repair the defect at no charge, using new or refurbished replacement parts, or 2) replace the product with a new product that is at least functionally equivalent to the original product, or 3) provide a store credit in the amount of the purchase price of the original product.
  • Page 35 Manufacturers or suppliers other than Brookstone may provide their own warranties to the purchaser, but Brookstone, in so far as permitted by law, provides these products “as is.” This warranty does not apply to: a) damage caused by failure to follow instructions relating to product’s use or the installation of components;...
  • Page 36 Find thousands more great ideas online 318490 © 2016 Brookstone • Merrimack, New Hampshire USA 03054 • 800-846-3000 • Brookstone.com...
