APPENDIX TO THE INSTALLATION AND OPERATING MANUAL OF

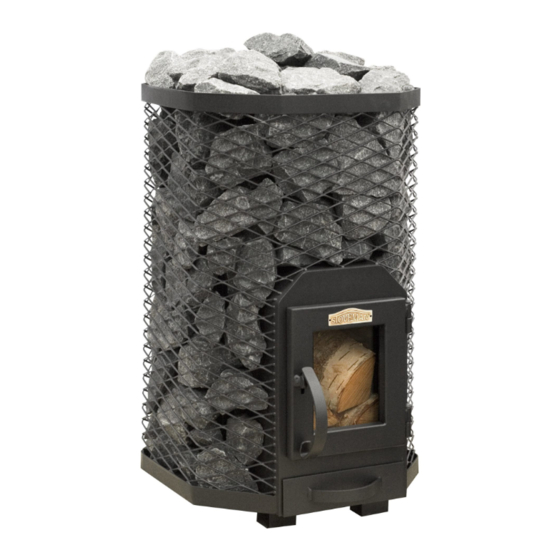

"STOVEMAN" SAUNA STOVE
Technical data of the sauna stove
Sauna stove type
Model
Nominal heat capacity, i.e. ability to
heat the room
Fuel
Fuel quantities to be added
Minimum necessary draught
Carbon dioxide emissions with 13% O
content
Overall efficiency
Flue gas temperature
Weight of sauna stove without stones
Weight of sauna stove's stones
Minimum cross-section of ventilation
openings
Hot room size
Minimum cross-section of smoke flue
Stoveman 13
Stoveman 13-LS
15,4 kW
Wood logs with length up to 30 cm
9 kg in three parts
12 Pa
0,59%
2
67%
430° C
58kg
110kg
7850 mm²
6 m³-13m³
10200mm²
CE – mark
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stoveman 13-LS
Summary of Contents for Stoveman 13-LS
- Page 1 APPENDIX TO THE INSTALLATION AND OPERATING MANUAL OF “STOVEMAN” SAUNA STOVE Technical data of the sauna stove Sauna stove type Stoveman 13 Model Stoveman 13-LS Nominal heat capacity, i.e. ability to 15,4 kW heat the room Fuel Wood logs with length up to 30 cm...
- Page 2 INSTALLATION AND OPERATING MANUAL OF “STOVEMAN” SAUNA STOVE The “STOVEMAN” sauna stove is intended for providing dry or humid heat in a sauna. Our product range includes various modifications of the Stoveman sauna stoves. The selection has round and angular-shaped stoves. The stove can have a hot water boiler, a glass door and a wall penetration for fire chamber.
- Page 3 Connecting the sauna stove to the smoke flue As a rule, the “Stoveman” sauna stoves have the flue gas outlet opening on top of the sauna stove. Special metal flue pipes must be used for connecting the sauna stove to the smoke flue;...
- Page 4 The time needed for heating up the hot room depends on the heat conductivity of the wall materials, the volume of the room and the heating capacity of the sauna stove. The ash drawer of the sauna stove must be cleaned before each heating, because the draught is regulated by way of adjusting the ash drawer’s position.
- Page 5 Fig 1. Heat resistant insulation board Fig 2.
- Page 7 Fig 3. Fig 4.
