Inateck BTSP-10 plus Instruction Manual

Download this manual

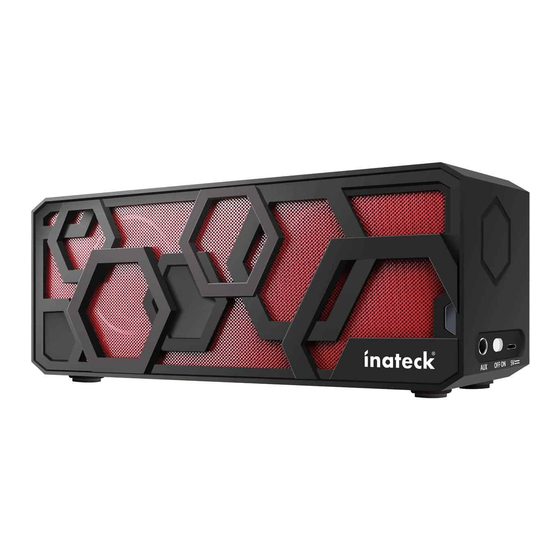

BTSP-10 plus

Bluetooth Speaker

Instruction Manual

w w w . i n a t e c k . c o m

Page 1 BTSP-10 plus Bluetooth Speaker Instruction Manual w w w . i n a t e c k . c o m...
Page 2 BTSP-10 plus Bluetooth Speaker Instruction Manual (EN) I. Packing list ● BTSP-10 plus*1 ● USB Charging Cable*1 ● 3.5mm Audio Cable*1 ● Manual*1 ● Carrying Bag*1 II. BTSP-10 plus Diagram ① ② ③ ④ ⑤ ⑥ ⑦ ① Bluetooth button：...
Page 3: Powering On/Off
III. Specs Product Name Bluetooth Speaker Product Model Inateck BTSP-10 plus Product Size 165mm*60mm*45mm Charging Interface Charging Current 500mA AUX 3.5mm line input impedance 47kΩ Input Sensitivity 560MV Output Power 6W（3W*2） Time needed to fully charge Battery 3.5 hours Battery life while playing music...
Page 4: Battery Charging
VI. Features Multlmedia Controls The buttons on this speaker can control the volume and perform play/pause functions (Only while connected in Bluetooth mode). +: Volume up -: Volume down Bluetooth Button: Play Pause VII. Battery Charging USB port on a PC/ laptop USB Cable USB wall adapter...
Page 5 VIII. Warning/Caution Speaker should be charged with phone USB chargers and computer USB port only! Chargers for other devices such as tablets should not be used. USB chargers that provide more than 1A while chargers (ipad charger etc.) could severely damage speaker’s battery and potentially cause malfunctions.
Page 6 Tel: 0341-5199 8407 (Service time: Mon - Fri 9:00AM - 5:00PM CET) Email: support@inateck.com Website: Http://www.inateck.com...
