Page 1: Dvd Player

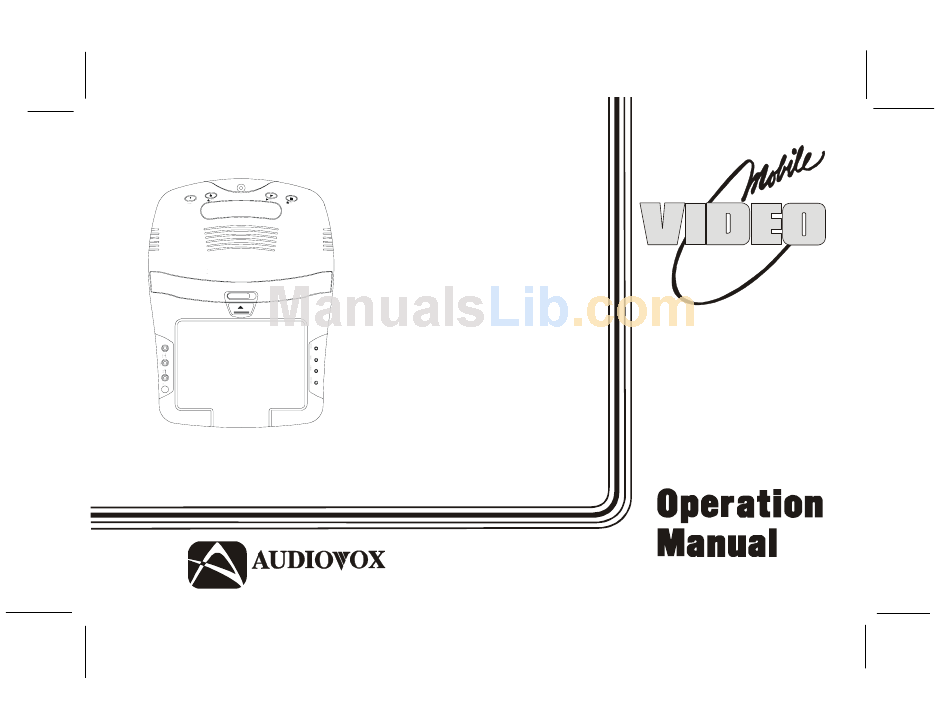

VOD705 DLS VOD705 DLP OPEN 4-R2.0 DVD PLAYER DROP-DOWN VIDEO MONITOR ELECTRONICS CORP . Released 03-08-02. Revision A: Incoporated LCD switch 03-22-02. Revision B: Add DLS and DLP models 6-04-02. VOD705 VOD705 DL WITH ® 128-6247B 128-6247B 1 of 24... -
Page 2: Important Notice
Important Notice It is unlawful in most jurisdictions for a person to drive a motor vehicle which is equipped with a television viewer or screen that is located in the motor vehicle at any point forward of the back of the driver’s seat, or that is visible, directly or indirectly, to the driver while operating the vehicle. -
Page 3: Safety Precaution
Congratulations on your purchase of the Audiovox VOD705 DL/VOD705 DLS/VOD705 DLP DVD Player with Drop-Down Video Monitor. The VOD705 DL/ VOD705 DLS/VOD705 DLP has been designed to give you and your family many years of video entertainment in the mobile environment. Please read... -
Page 4: Controls And Indicators Diagram
Controls and Indicators Diagram NOTE: LCD Backlight Control Switch located on Inside With the Screen in the Closed Position. NOTE: Screen Mode Button Located on Inside With the Screen in the Closed Position. 128-6247B 4 of 24... -
Page 5: Main Function Descriptions
21. LCD Panel Backlight Switch – This switch turns off the LCD backlighting when the screen is in the closed position. NOTE: Audiovox recommends the use of the Audiovox HP275 Headphones when using wired headphones. 128-6247B 5 of 24... -
Page 6: Remote Control Operation
REMOTE CONTROL OPERATION BATTERY INSTALLATION Before attempting to operate your Remote Control, install the batteries as described below. 1) Turn the Remote Control face down. Using a fingernail, lift the battery cover off. 2) Install two “AAA” batteries as shown. Make sure that proper polarity (+ or -) is observed. -
Page 7: Dvd Function Descriptions
DVD Function Descriptions *Function control is available on the unit and the remote control. 1. DVD POWER ON/OFF Button* Press this button to turn the VOD705 DL/ VOD705 DLS / VOD705 DLP on. The DVD or selected video source will be displayed on screen and the picture will appear in a few seconds. - Page 8 12. SLOW Button The DVD viewing speed will be reduced at 1/2, 1/4,1/8 times of normal speed. 13. PIX Button (PICTURE SELECT) Each time this button is pressed, the on screen picture adjustment display cycles through “adjustment bars” for BRIGHTNESS, CONTRAST, COLOR and TINT.
- Page 9 ) Button 25. DOWN ( Allows the user to scroll downward in the menu options. 26. REPEAT Button Allows the user to repeat various positions of a DVD, CD or MP3 and displays the repeat menu. 27. A-B REPEAT Button Allows the user to repeat play of a DVD or CD from point A to point B.
-
Page 10: Overhead Dome Lights
Turning the VOD705 DL/VOD705 DLS/ VOD705 DLP On or Off 1. Sliding the screen release lock forward will unlock the LCD screen and it will drop down slightly. Pivot the screen downward until a comfortable viewing angle is reached. The internal friction will hold the screen in position while the system is in use. -
Page 11: Remote Sensor
The repeater function allows control of auxiliary equipment such as an Audiovox Video Cassette Player. The infrared sensor can relay signals from most manufacturer’s remote controls to its respective component connected to the Video 1 and 2 inputs. - Page 12 Wired Headphones There are two 1/8” headphone jacks on the VOD705 DL/VOD705 DLS/VOD705 DLP that can be used with any standard wired stereo headphones. These jacks are controlled by the volume up / down buttons on the VOD705 DL/VOD705 DLS/ VOD705 DLP remote control.
- Page 13 DVD Basics To get the optimum use out of the DVD section, make sure you read this section completely. Regional Coding Both the DVD player and disc are coded by region. These regional codes must match in order for the disc to play.
- Page 14 Settings and Adjustments This chapter describes how to set and how to adjust using the on-screen SETUP menu. Using the Setup Display Using the setup display, you can do the initial setup, adjust the picture and sound quality, and set the various outputs.
- Page 15 OSD (On-Screen Display) Language Menu The OSD Language Menu allows the user to select the language for the on-screen display. Press ENTER and then use the ( ) buttons to select the desired language. The user can select either English, Frençais, Italiano, Español or Deutsch for the OSD language.
- Page 16 System Settings Aspect This menu allows the user to select the aspect ratio of the monitor. Press ENTER and then use the ) buttons to select the appropriate setting. 4:3 LB (LETTER BOX) : This displays a wide picture with black bands on the upper and lower portions of the screen.
- Page 17 Limiting Playback by Children (Parental Control) The Parental Control function allows you to limit viewing to your preference. 1. Use the ( ) buttons to select RATING, then press ENTER. 2. Enter a password in 4 digits using the number buttons, then press the ENTER button.
- Page 18 Playing DVD Disc --/-- EN 2CH 00:00:00 1 2 3 4 5 Title Displays current title. Use the ( buttons to move the cursor to the icon, use the ( ) buttons to select required title, press ENTER to confirm the selection. Chapter Display current chapter.
- Page 19 Repeat Repeat play function. Use the ( buttons to move the cursor to the icon, use the ( button to select required repeat play function. Repeat A-B Repeat play from A to B selected. Use the ( the icon, use the A-B button or ENTER button to select the A and B points.
- Page 20 Play mode Play mode selection. Use the ( buttons to move the cursor to the icon, use the ( ) buttons to select any of the three play modes: Sequential (Off), Programmed and Random play modes. Repeat Repeat play function. Use the ( buttons to move the cursor to the icon, use the ( ) buttons or REPEAT...
- Page 21 Playback begins automatically when you insert an MP3 disc into the player. The TV/DVD/Radio begins playing the songs in the order they were burned onto the disc. Selecting a directory Because MP3 discs contain a large number of songs, these songs are divided into directories. To select a directory: 1.
- Page 22 Directory Display This feature displays the directory that you have selected. WinAmp 2.64 File Display This feature displays the selected track number which contains in the selected directory. Time Display This feature displays the audio time for the length of the song.
-
Page 23: Troubleshooting
To Use Repeat Feature: 1. While a disc is playing, press Repeat button or right arrow button ( ) on the remote to bring up the Repeat icon. 2. Press the up/down arrow buttons ( ) to highlight the Repeat option ( Repeat Off, Repeat One, Repeat Disk, Repeat Dir). - Page 24 PROBLEM SOLUTION • Make sure your DVD is connected No sound or properly. Make sure all cables are distorted sound securely inserted into the appropriate jacks. • If you are using the IR headphones, make sure you turn on the IR power. •...
-
Page 25: Replacement Parts
Replacement Parts Remote Control Left Protective Cover for IR Sensor Right Protective Cover for Headphones Jacks Specifications 136B2127 LCD Backlighting Resolution 102B3687 Pixels Operation Temperature Storage Temperature 102B3688 Backlight life Video Display System Headphone Audio Output Low Level Audio Output 1 kHz @ -15 dB Video Output Power Source... -
Page 26: Month Limited Warranty
Applies to Audiovox Mobile Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 36 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor. - Page 27 NOTES 128-6247B 27 of 24...
- Page 28 For Customer Service Visit Our Website At .audiovox.com Product Information, Photos, FAQ’s Owner’s Manuals 128-6247A © 2002 Audiovox Electronics Corp., Hauppauge, NY 11788 128-6247B 28 of 24...
