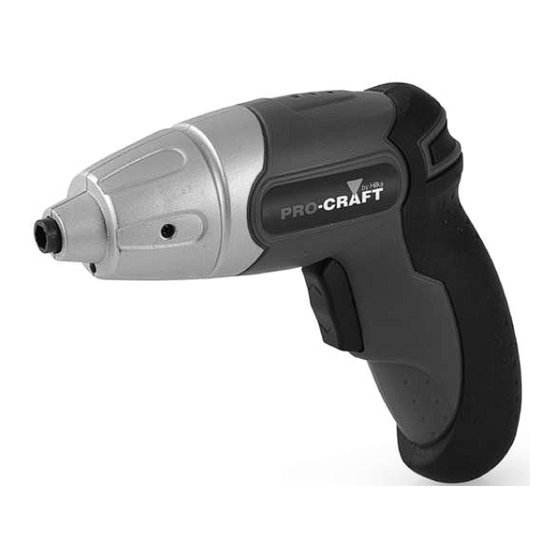

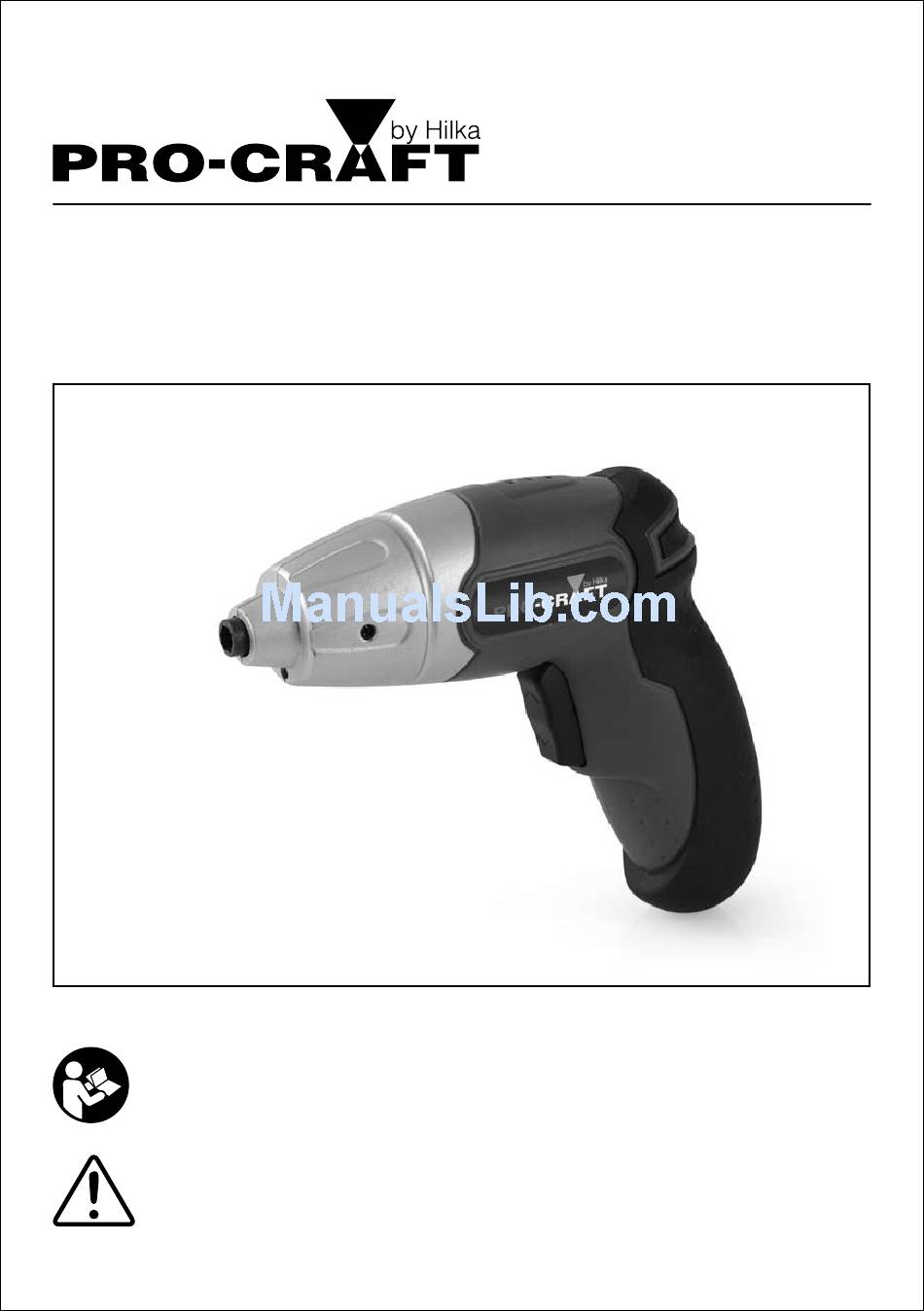

- Page 1 Li-ion Cordless Screwdriver HPC-0023 Please note that your safety is your personal responsibility PLEASE READ BEFORE USE AND RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. IMPORTANT NOTE: ALWAYS CHECK THE EQUIPMENT BEFORE USE. IF DAMAGED, DO NOT USE AND DISCARD.
- Page 2 INTENDED USE THIS DEVICE IS INTENDED FOR DOMESTIC USE AND FOR THE ENVISAGED PURPOSE. IT IS NOT DESIGNED AND IS NOT FIT FOR COMMERCIAL, INDUSTRIAL OR RENTAL USE. SAFETY AND WARNING INFORMATION READ AND RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE GENERAL •...
- Page 3 APPLIANCE USE AND CARE • Know your power appliance. Read the instruction manual carefully. Learn its applications and limitations as well as the specific potential hazards related to this appliance. Following this rule will reduce the risk of electric shock, fire, or serious injury. • Always secure and support the work piece, if necessary use clamps to secure and support the work piece to a stable platform. NOTE: Holding the work piece by hand or against your body is dangerous and may lead to loss of control and personal injury. • Use the right appliance for each job. Only use the appliances for its intended task. • DO NOT force a small appliance to do the job of a larger appliance. Using the right appliance to do the right job will do the intended job safer and easier. • Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one appliance may become hazardous when used on another appliance. • Keep the appliance clean, dry and free from oil and grease. Never allow the plastic parts to come into contact with brake fluid, gasoline, petroleum-based products, or any strong solvents which contain chemicals that can damage, weaken or destroy the housing, as it could compromise the integrity of the insulation.
- Page 4 Components 1. Collet 2. LED light 3. Forward/Reverse switch 4. Charging socket 5. Battery indicators Note: (RED LED indicates charging status during charging) 6. Charger Technical Specifications Charger Screwdriver Model No XR-DC060300 Motor 3.6 Volts dc Voltage Rating: AC 220-240V ~ 50Hz 7W Chuck: 6.35cmm (1/4”) Output: 6V dc 300mA No Load Speed: 180 RPM Maximum Torque: 2. 5 Nm Weight: 0.35Kg Switch: Forward / reverse Charging time: 3-5 hours Initial Charge Time: 7 hours...
- Page 5 OPERATING INSTRUCTIONS: WARNING: Never operate this tool if any parts are missing until the missing parts are replaced. Failure to do so could result in possible serious personal injury. WARNING: Tool may stall (if overloaded or improperly used) causing a twist. Always expect the stall. Grip the screwdriver firmly to control the twisting action and prevent loss of control which could cause personal injury. If a stall does occur, release the trigger immediately and determine the reason for the stall before re-starting. WARNING: DO NOT allow familiarity with tools to make you careless. Remember that a careless fraction of a second is sufficient to serious injury. Always wear safety goggles or safety glasses with side shields when operate tools. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury.
- Page 6 Battery Charging Safety Warnings • NEVER use charger outdoors or expose to wet or damp conditions. Water entering charger will increase the risk of electric shock. • NEVER use the cord to carry the charger and never pull the charge by its cord when unplugging. Replace damaged cords immediately. • Make sure cord is located so that it will not be stepped on, tripped over, come in contact with sharp edges or otherwise subjected to damage or stress. • DO NOT operate charger with a damaged cord or plug, which could cause shorting and electric shock. If damaged, have the charger replaced by an authorized dealer. • DO NOT operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way. • DO NOT disassemble charger. Take it to an authorized dealer when service or repair is required. • Unplug charger from outlet before attempting any maintenance or cleaning to reduce the risk of electric shock. • Disconnect charger from the power supply when not in use. This will reduce the risk of electric shock or damage to the charger if metal items should fall into the opening, it also will help prevent damage to the charger during a power surge. • DO NOT charge batteries in temperature below 5oC or above 50oC. This is important and will prevent serious damage to the batteries. Battery Life •...
- Page 7 MAINTENANCE WARNING: Always wear safety goggles or safety glasses with side shields when using compressed air to clean tools, if the operation is dusty, also wear a dusk mask. Use only mild soap and damp cloth to clean the tool. Never let any liquid get inside the tool. Never immerse any part of the tool into a liquid. WARNING: DO NOT at any time let brake fluids; gasoline, petroleum-based products, penetrating oils, etc. come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury. Only the parts shown on the parts list are intended to be repaired or replaced by the customer. Before any work on the machine itself, ensure that the battery pack is removed from the drill. BATTERY DISPOSAL • When the battery no longer accepts an adequate charge the battery is depleted. The battery should disposed of in the correct manor. • The battery contains nickel-cadmium. You must not dispose of the battery in the ordinary trash. • Consult your local waste authority for information regarding available recycling and/or disposal options. TROUBLE SHOOTING Battery does not charge: 1. The RED LED does not indicate that there...
- Page 8 Helpline Telephone Number 02083 916 767 Alternatively check the Q&A on our website www.hilka.co.uk/faq.php NOTE: These important safeguards and instructions cannot cover all possible conditions and situations that may occur. It must be understood that common sense and caution are factors, which cannot be built into any product. These factors must be supplied by the person using this product. Manufactured for Hilka Pro Imports 1 Roebuck Place, 110 Roebuck Road, Chessington, Surrey, KT9 1EU HPC-0023-Issue1-05-12-12...
