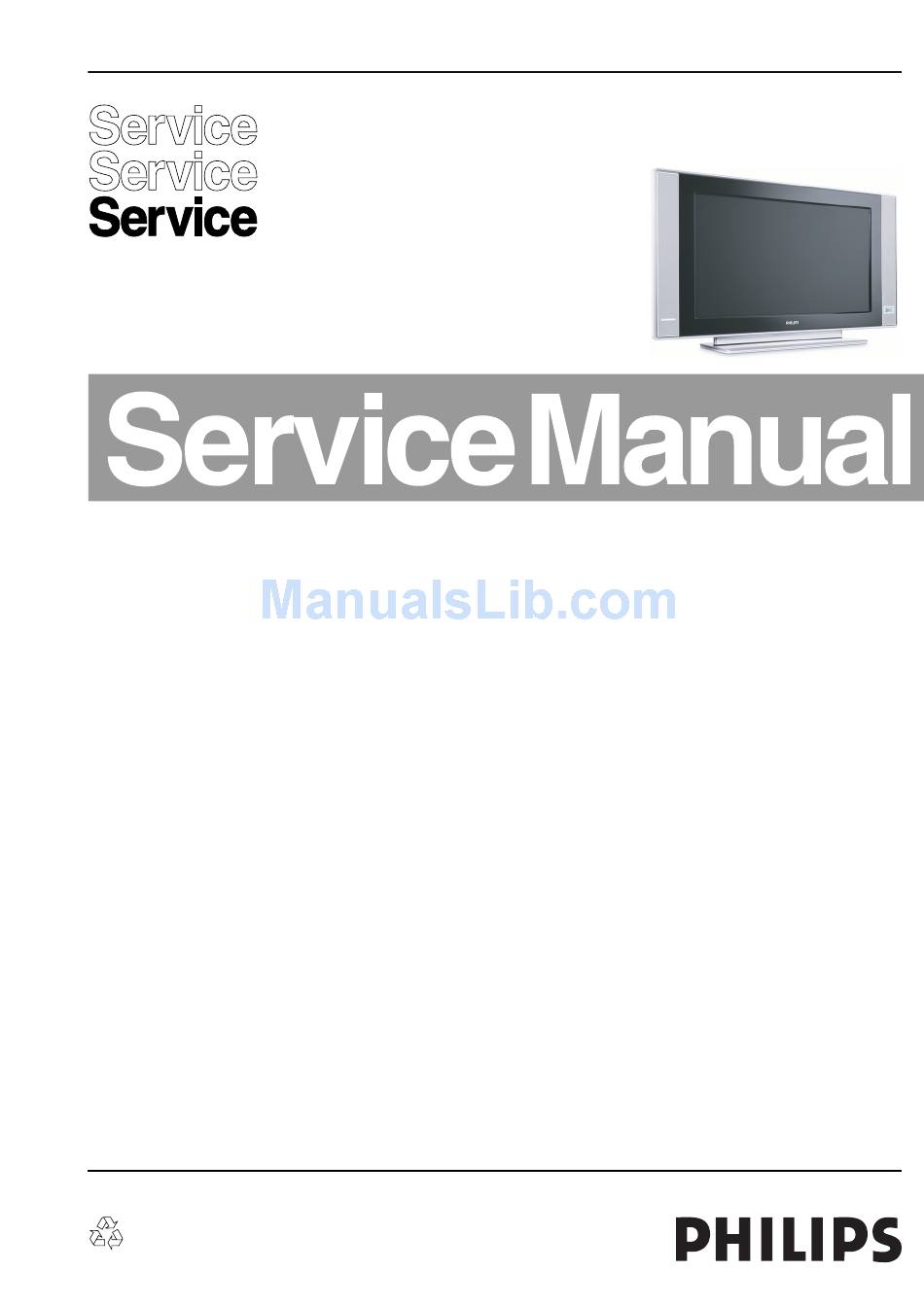

Colour Television
Contents
©
Copyright 2006 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.
Published by WS 0670 BG CD Customer Service
Page
Contents
2
5
7
8
21
22
23
24
27
28
29
30
Diagram PWB
(A1) 31
33-34
(A2) 32
33-34
(B1) 35
57-66
(B2) 36
57-66
(B3) 37
57-66
(B4) 38
57-66
(B5) 39
57-66
(B6) 40
57-66
(B7) 42
57-66
(B8) 43
57-66
(B9) 44
57-66
57-66
57-66
57-66
Printed in the Netherlands
Subject to modification
Chassis
LC4.8E
AB
F_15800_000.eps
290906
Page
57-66
57-66
57-66
57-66
57-66
57-66
57-66
(B21) 55
57-66
(B1-B21) 67-87
88-97
(D) 98
99
(E) 100
101
(J) 102
103
(K1) 104
111-112
(K2) 105
111-112
(K3) 106
111-112
(K4) 107
111-112
(K5) 108
111-112
(K6) 109
111-112
(K7) 110
111-112
(SA1) 113
116-118
(SA2) 114
116-118
(SA3) 115
116-118
119
124
126
129
131
140
