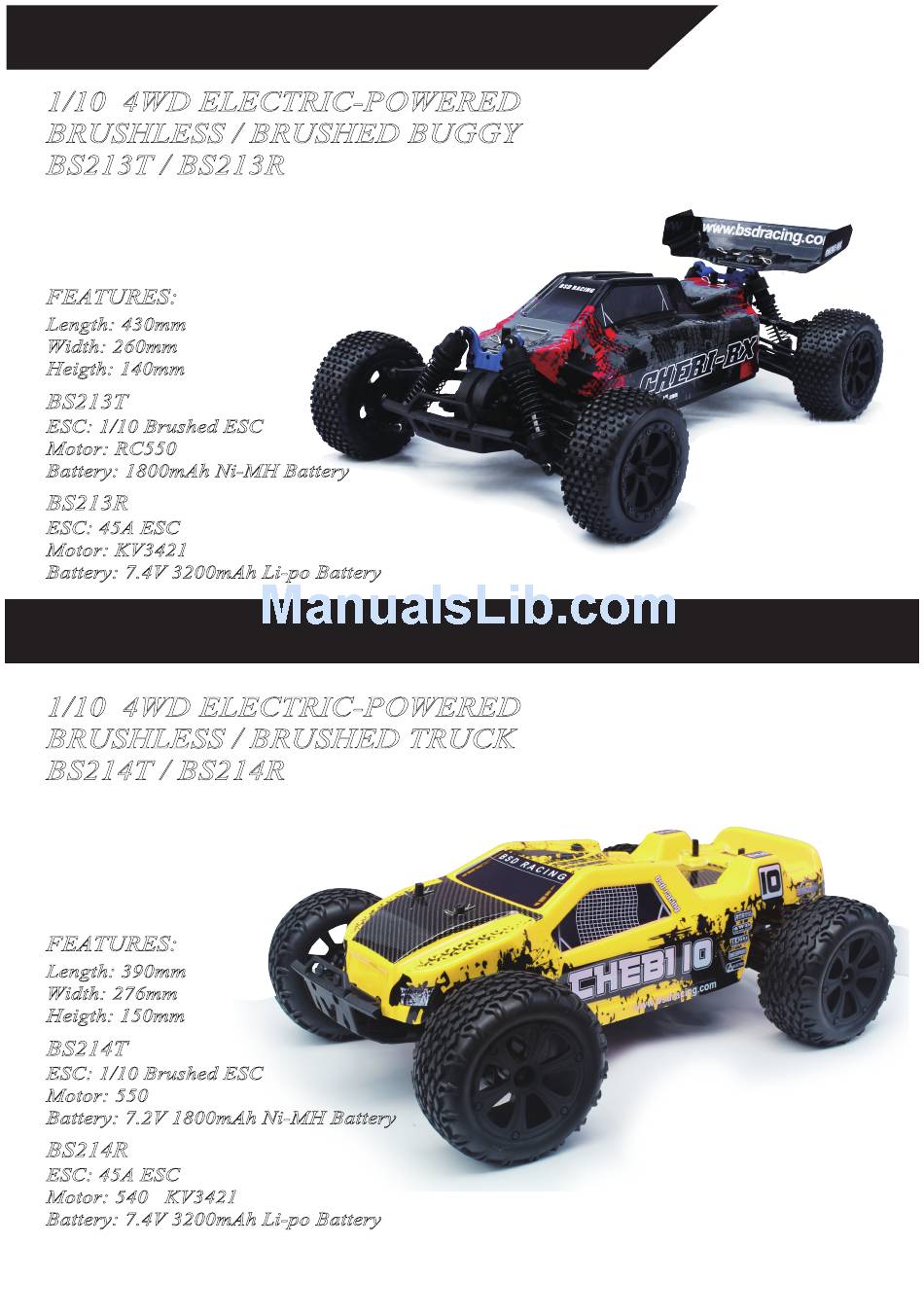

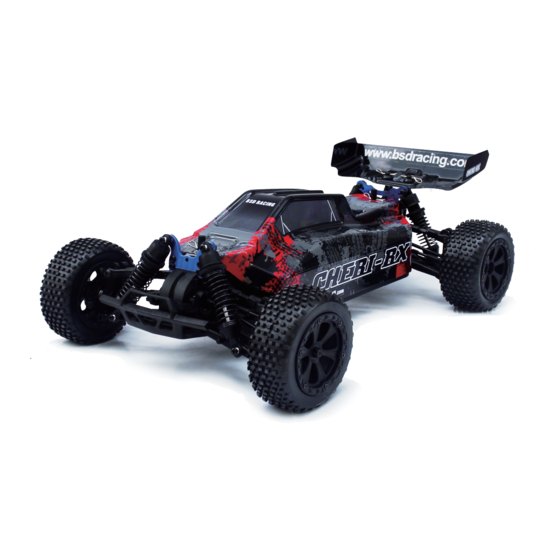

B S D - R A C I N G
1/10 4WD ELECTRIC-POWERED
BRUSHLESS / BRUSHED BUGGY
BS213T / BS213R
FEATURES:
Length: 430mm
Width: 260mm
Heigth: 140mm
BS213T
ESC: 1/10 Brushed ESC
Motor: RC550
Battery: 1800mAh Ni-MH Battery
BS213R
ESC: 45A ESC
Motor: KV3421
Battery: 7.4V 3200mAh Li-po Battery
Instruction Manual
1/10 4WD ELECTRIC-POWERED
BRUSHLESS / BRUSHED TRUCK
BS214T / BS214R
FEATURES:
Length: 390mm
Width: 276mm
Heigth: 150mm
BS214T
ESC: 1/10 Brushed ESC
Motor: 550
Battery: 7.2V 1800mAh Ni-MH Battery
BS214R
ESC: 45A ESC
Motor: 540 KV3421
Battery: 7.4V 3200mAh Li-po Battery
www.bsdracing.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BSD-Racing BS213T
Summary of Contents for BSD-Racing BS213T
- Page 1 B S D - R A C I N G 1/10 4WD ELECTRIC-POWERED BRUSHLESS / BRUSHED BUGGY BS213T / BS213R FEATURES: Length: 430mm Width: 260mm Heigth: 140mm BS213T ESC: 1/10 Brushed ESC Motor: RC550 Battery: 1800mAh Ni-MH Battery BS213R ESC: 45A ESC Motor: KV3421 Battery: 7.4V 3200mAh Li-po Battery...
-
Page 4: Transmitter Specifications
TRANSMITTER SPECIFICATIONS TR TYPE: MADGEAR-TRV1 Channel: 3CH Frequency: 2.4GHz Use DC: (4.0V-8.6V); ≤110mA N.W.: 320g RX TYPE: MADGEAR-RXV1 Channel: 3CH Frequency: 2.4GHz 162mm DC: (4.0V-8.6V); ≤20mA N.W.: 8g R/F Power: ＜20dBm; Sensititity: 1024 Modulation: 2-FSK; Frequency Signal: FHSS Specifications: One Set(200*165*105mm) NOTE: Install the batteries in correct polarity. - Page 5 AUX CHANNEL(3CH) Press the CH3 button once, servo turns 90 degrees, press again, servo turns back 90 degrees. NOTE: During the binding process, the CH3 button functions as a bind button and does not provide channel 3 functionality. STEERING DUAL RATES ADJUSTMENT (ST.D/R) Adjust the dual rate for steering by turning the ST D/R knob.
- Page 8 BS213-029C Spur Gear Unit (steel) BS903-091 Washer A (5.2*10*0.2) BS903-086 Ball Bearing 5*10*4 BS903-089 Pin 2*9.8 BS213-039 BS810-047 E Clip BS213-040A BS213-026 BS213-038 Gear shaft BS903-066 Flat Cross Screw(TPF3*8) BS903-083 Joint D BS205-043 Ball head screw BS213-014 Steering System Unit 4.8*12.3 BS903-122 Copper bush...
- Page 9 BS901-066 M3 locknut BS213-001 Shock Unit BS709-057 Shock central shaft BS709-057 Shock piston BS709-058 Shock Cylinders BS709-058 Adjusting ring BS709-059 Shock gland BS709-059 Spacer bush BS213-001 Shock Unit 3.6*5.9*1 BS709-059 Shock Low Cylinders BS709-060 O Ring 6.5*3.5*1.5 BS709-061 O Ring 5*8*1.5 BS709-062 Shock Ball end BS903-121...
- Page 15 BS213T & BS213R COMMON PARTS BS213-003 Front Transverse Drive BS213-004 Rear Transverse BS213-002 Upper Susp. Arm Unit BS213-005 Rear Axle 2pcs BS213-001 Shock Unit 2pcs Shaft w/axle 2pcs Drive Shaft 2pcs 2pcs BS213-006 Rim Hub With Pin BS213-007 Lower Susp. Arm Unit BS213-010 Diff.
- Page 16 BS213T & BS213R COMMON PARTS BS903-119 Diff O Ring 5*9*2 BS903-120 Diff Gear Shaft BS213-042 Steering Axis BS213-040 Motor Mount BS213-041 Steering Support 12pcs 6pcs BS709-057 Shock Center Shaft/ BS709-058 Shock Cylinders/ BS709-059 Shock Low Cylinders/ BS903-121 Shock ball head...
- Page 17 BS213T PARTS BS213-035 Motor Gear 20T BS213-025 Gear Shaft Unit BS213-029 Spur Gear Unit BS903-104 Diff. Gear Box Unit BS903-116 Master Gear Unit (plastic) (zinc alloy) (zinc alloy) (zinc alloy) (Zinc Alloy) B7003W 1/10 Brushed Waterproof BS701-036D 7.2V 1800MAH BS701-035 Charger for 7.2V Ni-MH...
- Page 18 BS214T & BS214R COMMON PARTS BS213-003 Front Transverse Drive BS213-004 Rear Transverse BS213-002 Upper Susp. Arm Unit BS213-005 Rear Axle 2pcs BS213-001 Shock Unit 2pcs Shaft w/axle 2pcs Drive Shaft 2pcs 2pcs BS213-006 Rim Hub With Pin BS213-007 Lower Susp. Arm Unit BS213-010 Diff.
- Page 19 BS214T & BS214R COMMON PARTS BS214-003 Body(orange) BS903-119 Diff O Ring BS903-120 Diff Gear Shaft BS903-121 Shock ball head BS214-002 Body Mount 2pcs BS214-003C Body(yellow) 5*9*2 12pcs 6pcs 12pcs BS709-060 O Ring 6.5*3.5*1.5 12pcs BS709-061 O Ring 5*8*1.5 12pcs BS709-057 Shock Center Shaft/ BS709-058 Shock Cylinders/...
- Page 20 BS214T PARTS BS213-025 Gear Shaft Unit BS213-035 Motor Gear 20T BS213-029 Spur Gear Unit BS701-036 7.2V 1800MAH BS903-116 Master Gear Unit (zinc alloy) (plastic) (zinc alloy) Battery (Zinc Alloy) B7003W 1/10 Brushed Waterproof BS701-035 Charger for 7.2V Ni-MH BS701-007 550 Motor BS701-008 Motor Heat Sink Esc( Tamiya head)
- Page 22 BSD Racing http://www.bsdracing.com PRINTED IN CHINA NOT RESPONSIBLE FOR TYPOGRAPHICAL ERRORS...
