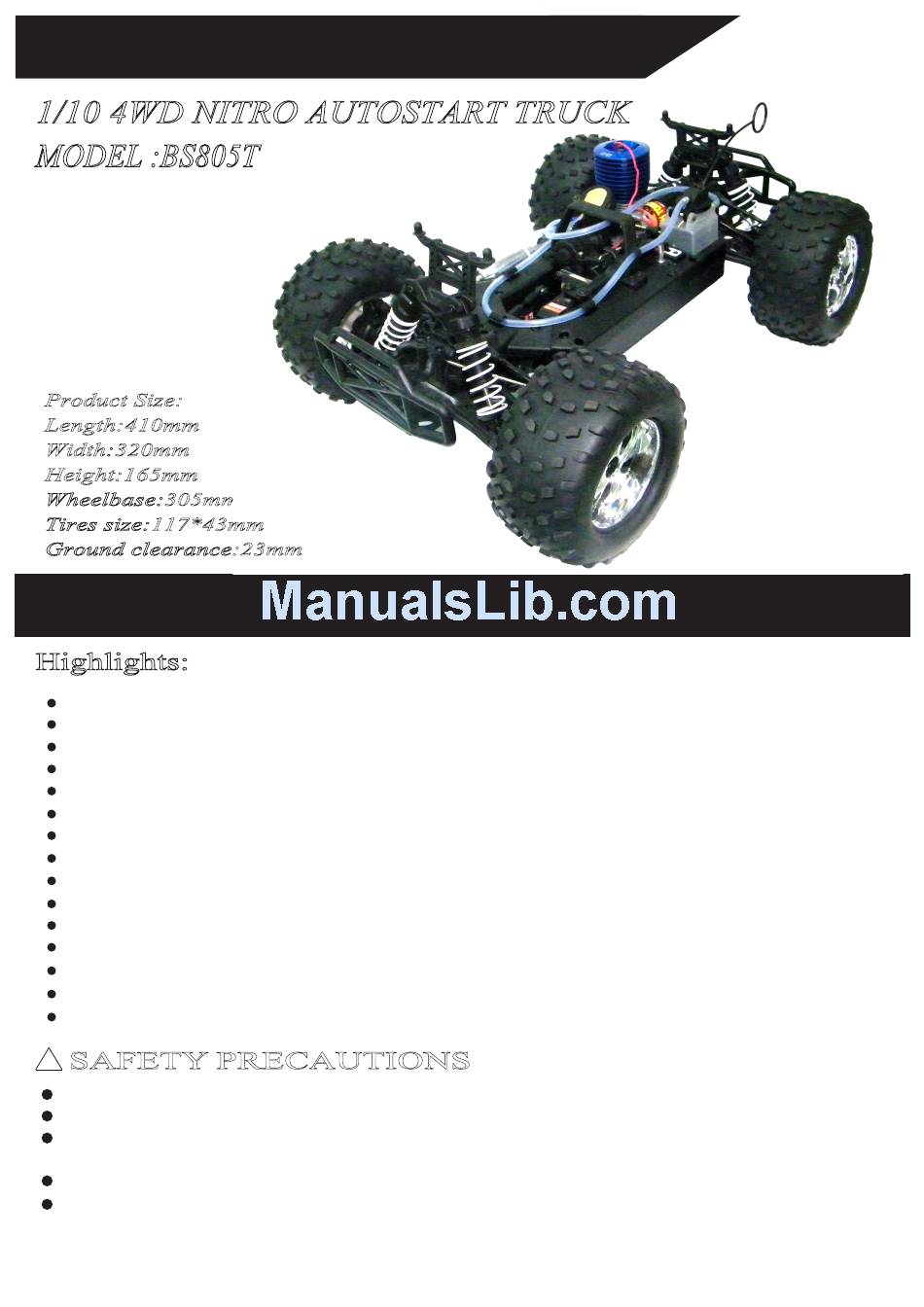

BSD-RACING

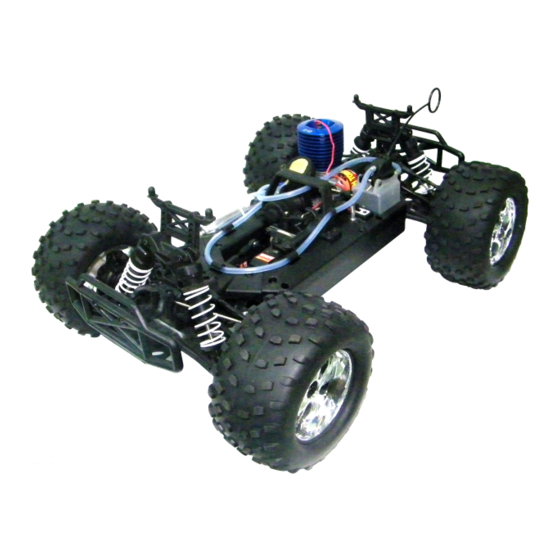

1/10 4WD NITRO AUTOSTART TRUCK
MODEL :BS805T
Product Size:
Length:410mm
Width:320mm
Height:165mm
Wheelbase:305mm
Tires size:117*43mm
Ground clearance:23mm
Instruction Manual
Highlights:
4 Wheel Drive System
Ready Assemble Ready to Run
Auto start motor 380, more power to start the vehicle
20# class engine
No more pull start, automatically started with a PUSH button, easy and quick
7.4V 1800 mAh Ni-Mh battry
6061 T6 3mm aluminum alloy, Assembled
Auto-shift 2 Speed Transmission
Independent, Colored Coil Spring Damped Suspension Arms
27 MHz AM Radio Transmitter and Receiver, with a PUSH button on the transmitter
Adjustable Threaded, Long and Oil-filled
Sealed, Waterproof and Dustproof
High Quality, with Four (4) Bevel Gears
Precise, Sealed for the Whole Vehicle
Aluminium Alloy

SAFETY PRECAUTIONS

!
This radio controlled racing truck is not a toy!
This high-performance R/C vehicle is recommended for ages 14 and older.
First-time builders should seek the advice of experienced modellers before
commencing assembly.
Take enough safety precautions prior to operating this vehicle.
You are responsible for this R/C vehicle's assembly and safe operation!
www.bsdracing.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BS805T and is the answer not in the manual?

Questions and answers

Related Manuals for BSD-Racing BS805T

Summary of Contents for BSD-Racing BS805T

  • Page 1: Safety Precautions

    BSD-RACING 1/10 4WD NITRO AUTOSTART TRUCK MODEL :BS805T Product Size: Length:410mm Width:320mm Height:165mm Wheelbase:305mm Tires size:117*43mm Ground clearance:23mm Instruction Manual Highlights: 4 Wheel Drive System Ready Assemble Ready to Run Auto start motor 380, more power to start the vehicle...
  • Page 2 Required equipm ent for operation 1.Too ls required for buildin and mai ntenance: Precision ruler Needle nose pliers Hobby knife Wi re cu tters Flat and Philips screwdrive r Hobby scissors CA glue & rubber cement Cross wrench Hex wrench Thread locking compound Cross wrench WARNING!

  • Page 3: Transmitter Preparation

    Please read the instruction carefully before starting the assembly. 1.Please assemble and install this car without children’s reach.As it includes small and sharp parts. 2.Do not run the car on public street or highways.As it might cause serious acci- -dents,personal injuries and property damage etc. 3.During the middle of racing and after operation,the engine and exhaust will become HOT.Therefore please do not touch them before cooling down.
  • Page 4 GLOSSARY OF TRANSMITTER Antenna: The transmitter antenna should be pulled out completely before turning on the power switch. Power switch: Pushing up the switch to turn on the t ransmitter, and pressing it down to switch off. Before driving the truck, always turn on the transmitter first, then the receiver, and when finishing driving, always turn off the receiver first, then the transmitter.

  • Page 5: Running The Engine

    RC OPERATING PROCEDURES 1.Please pull out the transmitter antenna and then turn on the power switch first,before turning on the receiver. 2.Please raises the tires off the ground and check if the control is responding. 3.Hold the throttle trigger to let the truck run. If it doesn't work, please adjust the throttle servo and trim.

  • Page 6: Break-In Procedure

    ii) STOPPING THE ENGINE Pinch the fuel line that runs to the carburetor.Pinching this line will restrict fuel flow and the engine will quit within a few seconds.Never place your finger over the exha--ust to stop the engine.This could result in serious burns on your finger.It also causes fuel to back up in the engine,making it harder to start the next time you run your truck.

  • Page 7: Tuning Tips

    TANK 4 Lean the high-speed needle another 1/2 turn from "tank 3" setting. Run the truck for the complete tank and then let it cool down.You should notice the engine running much better at this point. TANK 5 Lean the high-speed needle another 1/2 turn from "tank 4" setting.Run the truck for the complete tank and then let it cool down.The engine is now ready to be performanced tuned.
  • Page 8 BS903-008 Upper Susp. BS903-010 Supension arm BS903-003 Shock absorber BS903-007 Body pin 2pcs BS903-005 Brace 1pcs mount block 2pcs Arm Set 2PCS unit(plastic) 2pc BS903-014 Ball Bearing BS903-015 Lf/Rt steering BS903-011 Upper susp.arm BS903-012 Rim hub w/pin 2*10 4pc BS903-013 Axle w/pin 2pcs (6*12*4) 2PCS MPO-01 Wheel Hex set(AL6061) 4pc mout-Fr/Rr...
  • Page 9 BS903-068 Flat Cross Screw BS903-069 Flat Cross Screw BS903-071 B-Head Cross Screw BS903-070 Flat Cross Screw BS903-072 B-Head Cross Screw (TPF3*14) 12PCS (TPF3*16) 12PCS (BT2.6*6) 12PCS (ISO3*10) 12PCS (BT3*8) 12PCS BS903-074 B-Head Cross Scre BS903-073 B-Head Cross Screw BS903-075 B-Head Cross Screw BS903-076 B-Head Cross Screw BS903-077 B-Head Cross Screw (BT3*14) 12PCS...
  • Page 10 BS702-057 B-Head Cross BS903-110 Diff.outdrive BS903-109 Diff.outdrive BS801-008 Fr/Rr Body BS702-047 Antenna mount Screw(BM3*6) 12PCS B/Pin(2*10) A/Pin(2*10) Mount BS902-051 B-Head Cross BS803-012 Centre Drive BS901-066 M3 locknut BS901-067 Antenna Pipe BS902-031 Air Filter W/ Screw(BT3*10) 12PCS Shaft-Fr 5pcs W/Cap 3pcs Insert BS908-002 Nailed tyre BS905-009 Anti-roll Bar...
  • Page 11 BS805-014 Metal pipe/Exhaust BS805-015 Auto start BS805-016 Auto start gearbox BS805-018 380 Motor / 9T BS805-017 Auto start gear Pipe Coupler gearbox unit cover-Front & Rear motor gear 14T/38T/44T BS805-021 7.2V Battery BS805-023 Fuel hose BS805-020 B-Head Cross Screw BS805-019 Switch/switch BS805-022 100cc-Fuel Tank Pack (Ni-Mh)1800mah (BM2.6*20)
  • Page 12 OPTIONAL PARTS/UPGRADE PARTS BS903-096 Set Screw BS805-030 Crystal 4 BS805-031 Crystal 6-one BS805-032 Crystal 8-one BS903-004 Shock Absorber (M4*8) 6PCS Unit(Alum.) 2PCS Stainless steel AL6061 Stainless steel AL6061 Stainless steel AL6061 Stainless steel AL6061 Stainless steel AL6061 MPO-03 Knuckle Arm Se MPO-01 Wheel Hex Set MPO-02 C HUB C HUB W/Pin MPO-04 Rear Hub set...

  • Page 13: Parts List

    PARTS LIST Item No. Description Item No. Description BS903-003 Shock Absorber Unit(Plastic) 2PCS BS903-075 B-Head Cross Screw(BT3*16) 12PCS BS903-005 Brace BS903-076 B-Head Cross Screw(BT3*20) 12PCS BS903-007 Body Pin 2PCS BS903-077 B-Head Cross Screw(BT2.6*10) 12PCS BS903-008 Upper Susp. Arm Set 2PCS BS903-078 B-Head Cross Screw(BT4*8) 12PCS BS903-010 Suspension Arm Mount Block 2PCS BS903-079 B-Head Cross Screw(BM3*10) 12PCS...
  • Page 14 PARTS LIST Item No. Description Item No. Description BS908-004 Bumper brace-Fr BS805-011 20# Engine(W/O pull start) BS908-005 Bumper brace-Rr BS805-012 Engine Mount BS908-006 Bumper chassis-Fr BS805-013 Exhaust Fixation Set 2PCS BS908-007 Bumper chassis-Rr BS805-014 Metal pipe/Exhaust Pipe Coupler BS908-008 Body shell (painted) BS805-015 Autostart gearbox unit B7057 Autostart 3ch radio unit...

  • Page 15: Exploded View

    EXPLODED VIEW BS903-047 BS903-095 BS903-099 BS903-086 BS908-002 BS903-088 BS903-101 BS903-086 BS903-099 BS903-082 BS903-090 BS903-073 BS903-100 BS904-003 BS903-102 BS805-023 BS903-093 BS903-004 BS903-086 BS903-074 BS903-007 BS903-022 BS902-051 BS903-075 BS903-003 BS908-004 BS908-002 BS903-103 BS801-008 BS903-098 BS903-103 BS903-020 BS903-073 BS903-087 BS903-065 BS903-083 BS903-073 BS903-012 BS903-110 BS903-005 BS903-013...
