Summary of Contents for AccuBANKER AB300

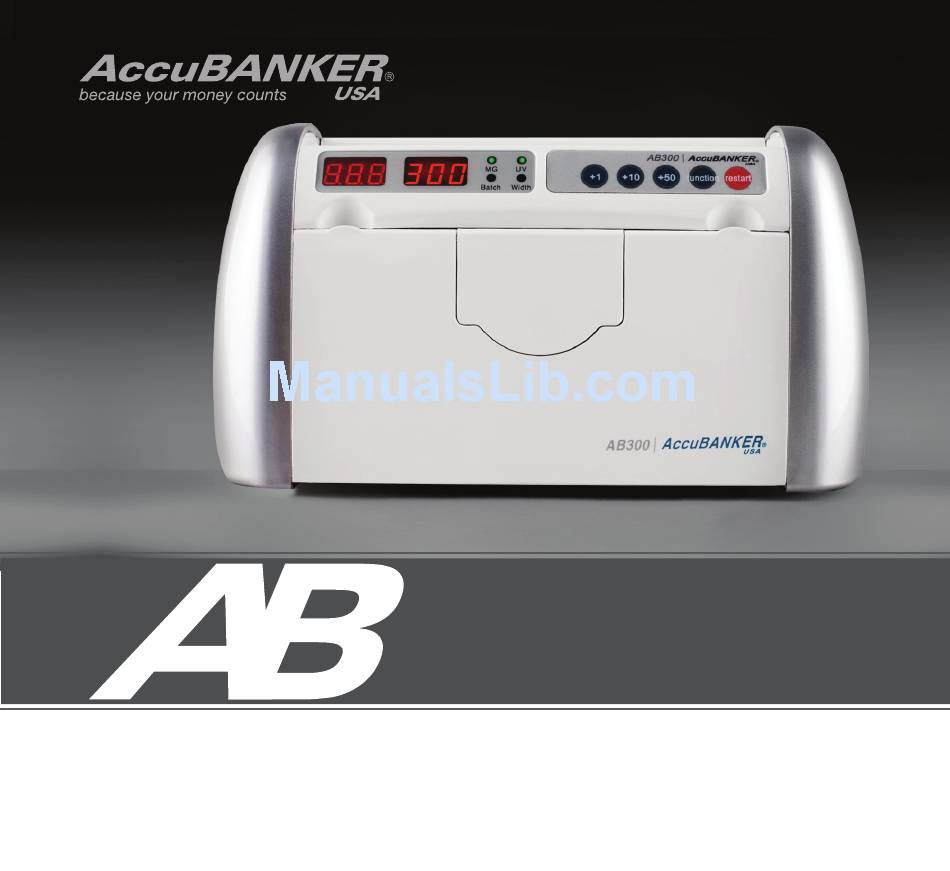

- Page 1 User Guide Portable banknote counter AB 300...
- Page 2 Thank you for purchasing this AccuBANKER product. We recommend reading all information in the user guide to become familiar with this product. AccuBANKER and its logo are registered trademarks of Hilton Trading Corp. All Rights Reserved.
-
Page 3: Table Of Contents
Table of Contents Getting Started: Introduction......... . 5 Important Safety Instructions . - Page 4 Table of Contents Cont. 3.0 Operations 3.1 Power Up ........16 3.2 Counting Function .
-
Page 5: Introduction

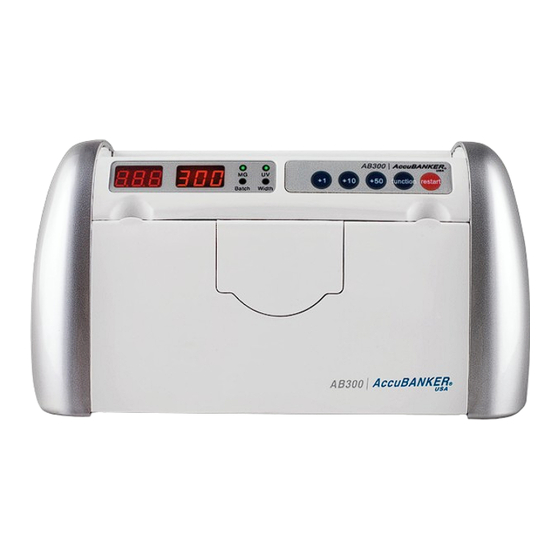

The AB 300 portable banknote counter with counterfeit detection is the next generation in micro-technology. This patent-pending product adopts advanced circuitry for enhanced performance and counterfeit protection. The simple, yet powerful design makes the AB300 perfect for personal and professional use. -
Page 6: Important Safety Instructions
Important Safety Instructions Warni ng C auti on When unplugging the power cord, do not pull it by the Do not use this product in areas where it may be exposed to water cord, but rather grip the plug to pull it out. Not following or other liquids. -
Page 7: Other Safety Considerations
Other Safety Considerations • Read and understand all of the safety instructions. • Follow all warnings and instructions marked on the unit. • This product should never be placed near or over a radiator or heater register. This product should not be placed in a built-in installation unless proper ventilation is provided. - Page 8 • Unplug this product from the wall outlet and refer to servicing by quali- fied service personnel under the following conditions: - When the power supply cord or plug is damaged or frayed. - If liquid has been spilled into the unit. - If the unit has been exposed to rain or water.
-
Page 9: Box Contents
Box Contents When opening the box, verify that all of the items described below are included. If any item is damaged or missing, contact the place where the unit was purchased. -
Page 10: Cleaning Of The Machine
Cleaning of the Machine WARNING: BEFORE DOING ANY CLEANING, TURN THE POWER SWITCH OFF AND DISCONNECT THE POWER CORD FROM THE MACHINE. KEEP IN MIND THAT PROBLEMS OR DEFECTS THAT ARISE FROM LACK OF PERIODIC MAINTENANCE ARE NOT COVERED BY THE WARRANTY. A) Cleaning the Optical Sensors It is important to clean all of the sensors in the unit to avoid any paper par- ticles or dust from sticking to the sensors. - Page 11 Cleaning of the Machine Cont. 1. Auto-Start Sensor 2. Counting Sensor Cover 3. Right Counting Sensor 4. Left Counting Sensor Note: To reach counting sensors, pull up counting sensors cover.
-
Page 12: General Controls And Parts
1.0 General Controls and Parts 1. Display Screen 2. Hopper 3. Buttons 4. Stacker Tray 5. Banknote Removal Lever... - Page 13 General Controls and Parts 6. Thickness Adjustment Screw 7. DC Input Jack 8. Power Switch DC/12V...
-
Page 14: Specific Controls
1.1 Specific Controls 1. C ounting Number Display 2. Batch/Error Code Display 3. Function Indicators (MG, UV, batch, width) 4. +1 5. +10 6. +50 7. Function 8. Restart... -
Page 15: Features
2.0 Features 2.1 Automatic start The AB300 is equipped with an auto-start sensor. The machine starts counting when banknotes are placed in the hopper. 2.2 Counting Mode Once turned on, the machine defaults to this mode, counting the bills placed in the hopper. -
Page 16: Operations
3.0 Operations 3.1 Power Up Open the front panel (banknote stacker). Connect the 12V adapter to a power outlet and to the jack at the rear of the machine; the unit will con- duct a self-check by spinning the rollers several times. The counting num- ber and batch number displays will both show “0”... - Page 17 Operations Cont. 3.4 Counterfeit Detection Functions The AB300 uses counterfeit detection as default during normal counting operations. To change the type of counterfeit detection(s), press the “func- tion” key. The default settings are Magnetic (MG) and Ultraviolet (UV) counterfeit detection.
-
Page 18: Counterfeit Detection Functions
Operations Cont. 3.4.4 Width detection only: To use the Width detection setting only, press the “function” key three times. Note: It is not possible to disable all counterfeit detection functions at one time. -
Page 19: Troubleshooting Operational Problems
4.0 Troubleshooting Operational Problems 4.1 Avoiding Problems Avoid strong light or magnetic sources that will disturb the counterfeit detection functions while operating the machine. Keep the sensors clean and free of the dust. Unplug the machine when not in use. Preselect the banknotes to be counted in the machine. -
Page 20: When Counting Numbers Are Wrong
Operational Problems Cont. • To avoid jamming, ensure that banknotes are placed correctly in the hopper. • If jamming occurs, turn off the machine. Carefully remove the jammed banknotes from the machine with a wooden or rubber stick. Look for any foreign objects such as paper clips, rubber bands, etc. -
Page 21: Error Messages And Their Meaning
5.0 Error Messages and their Meaning Error Code Cause Solution Suspicious banknote for Remove the suspect bill and continue to count. Re-check the suspect bill. Suspicious banknote for Remove the suspect bill and continue to count. Re-check the suspect bill. Suspicious banknote for Remove the suspect bill Half note... - Page 22 Error Messages and their Meaning Cont. Error Code Cause Solution Contact your technical support or your authorized UV Battery error service center Speed Sensor error Contact technical support Clear the sensor of dust or obstructions or contact Right counting sensor technical support Clear the sensor of dust or obstructions or contact...
-
Page 23: Specifications
6.0 Specifications Ambient Temperature: 32 – 95 °F (0 – 35 °C) Ambient Humidity: ~40 - 90% RH Feeding System: Roller Friction System Hopper Capacity: 100 banknotes Stacker Capacity: 100 banknotes Counting Number Display: Three red LED digits Batch Number Display: Three red LED digits Power Source: ~110-220V, 60-50 Hz (12V DC adaptor) Power Consumption: 25W Dimensions: 10 x 7 x 5 ½...
