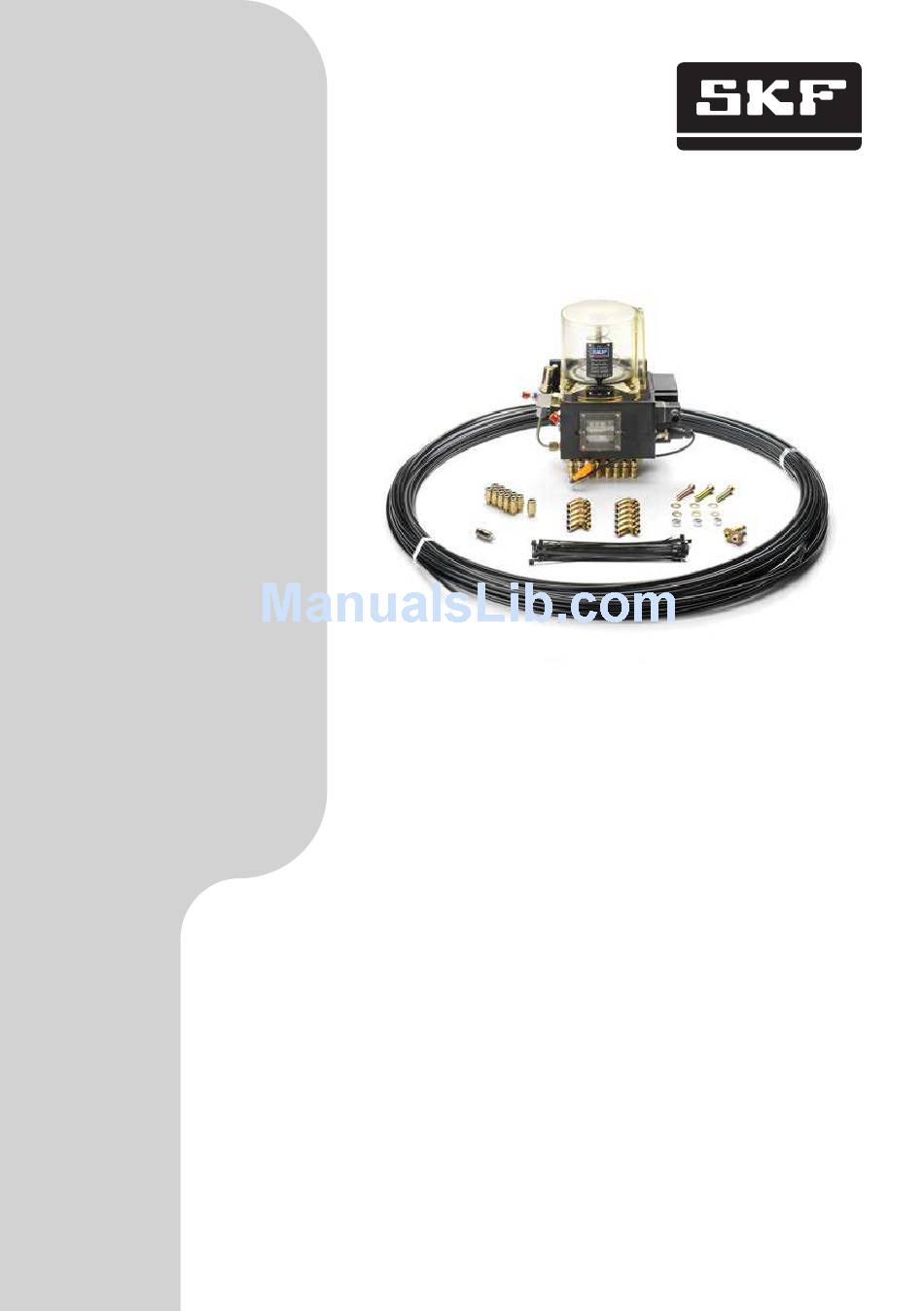

- Page 1 SKF LAGD 1000 Instructions for use...
-
Page 2: Table Of Contents
4.3 Programming the LAGD 1000/AC.. and LAGD 1000/DC ........24 4.3.1 Changing the lubrication interval times ............24 4.3.2 Programming sequence LAGD 1000/AC.. and LAGD 1000/DC ....25 4.3.3 Changing the system monitoring..............27 4.3.4 Changing the operating mode ..............28 Original instructions SKF LAGD 1000... - Page 3 5.1.1 LAGD 1000/AC.. and LAGD 1000/DC.. faults ..........29 5.1.2 Block operation ....................30 5.1.3 Clearing the fault message ................30 5.1.4 Storing the fault times ..................30 Maintenance and repair ..................31 Spare parts and accessories ................31 Technical data ....................32 Original instructions SKF LAGD 1000...
-
Page 4: Ec Declaration Of Conformity
The certiied products must not be started up until it is assured that the machine, in which the product was installed, meets the provisions and requirements of the directives to be applied. In addition, the Multipoint automatic lubricators LAGD 1000 series • Is in accordance with EC Machinery Directive 98/37/EC, Appendix 11B... - Page 5 Appendix I of the Directive. They are consequently not provided with a CE mark in respect to Directive 97/23/EC. They are classiied by us in keeping with Article, 3 Par. 3 of the directive. Nieuwegein, the Netherlands, December 2006 SKF Maintenance Products Sébastien David Manager Product Development and Quality SKF LAGD 1000...
-
Page 6: Safety Recommendations
Use in conformity with intended purpose The SKF Multipoint automatic lubricators LAGD 1000 are designed for plant and machine lubrication. They are capable of delivering greases up to NLGI grade 2. Any other use is not in conformity with the intended purpose. - Page 7 Any unsuitable material may cause a failure of the unit and lead to serious injuries or property damage. Lubricants In general, the following lubricants can be used in LAGD 1000 series: • Greases up to an NLGI grade of 2 with a maximum effective low pressure of ≤750 mbar (10.8 psi)
-
Page 8: Description

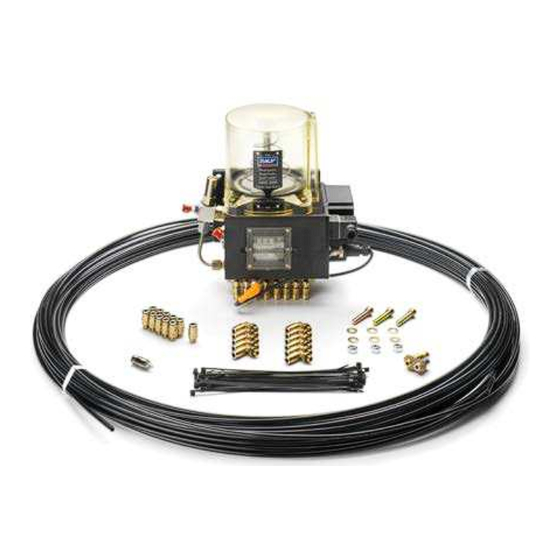

1. Description 1.1 Application The SKF Multi-Point Lubricator LAGD 1000 can supply up to 20 lubrication points (depending on variant) with a metered amount of lubricant (0,2 cm ). The LAGD 1000 can be power by AC or DC. The LAGD 1000 has a large 1 litre grease reservoir that is supplied to a micro processor controlled pump unit. -
Page 9: Designations
Cable tie Pipe illing nipple 1.3 Designations LAGD 1000 voltage variants number of lube points generic DC: 24V DC 10/12/14/16/18/20 designation AC: 115-240 AC 10/12/14/16/18/20 eg: LAGD 1000/AC16 is a LAGD 1000 with AC power with 16 outlets SKF LAGD 1000... -
Page 10: Lagd 1000 Unit Dimensions
1.4 LAGD 1000 unit dimensions Fig 2 LAGD 1000/DC.. dimensions Fig 3 LAGD 1000/AC.. dimensions SKF LAGD 1000... -
Page 11: Installation
2. Installation General The SKF Multipoint automatic lubricators LAGD 1000 are designed to lubricate plant and machines. They must not be used for vehicle lubrication. They are capable of delivering greases up to NLGI grade 2. The pump units differ in the way they can be electrically connected as well as in number of lubrication points they can supply. -
Page 12: Pump Unit Preparation
When two outlets are connected by means of the connection bar, the output low from the connection bar is twice the volume of a single outlet. Ensure cleanness. Even minor contamination may result in system errors or bearing damage. SKF LAGD 1000... -
Page 13: Pump Unit Installation
For installation, the unit is equipped with a connection lange with three ixing points. Mount the SKF Multipoint automatic lubricators LAGD 1000 to the machine with the three supplied M8 bolts, washers and self-locking nuts (Tightening torque: 16 Nm, 11.8 ft.lbs). -
Page 14: Electrical Connection
1,3 A 2,5 A Fuse according to DIN 72581 T.3 Lead: Cross-section 1,5 mm2, length ≤12 m (39.4 ft) 2.4.2 LAGD 1000/DC The LAGD 1000/DC is supplied with level monitoring as standard. One electrical power connection is required. SKF LAGD 1000... -
Page 15: Lagd 1000/Ac
The LAGD 1000/AC is supplied with level monitoring as standard. One electrical connection is required. Power connection to DIN EN 175 301-803 Plug supplied Fig 10/11 LAGD 1000/AC Electrical connector position / LAGD 1000/AC Electrical connection diagram. SKF LAGD 1000... -
Page 16: Lubricant Illing
LAGD 1000 lubricators at temperatures down to -10 °C (14 °F). For temperatures down to -25 °C (-13 °F), SKF greases LGWA 2 and LGGB 2 are suitable. Greases with graphite such as LGEM 2 aren’t suitable for the LAGD 1000. For all other SKF greases please contact SKF. -
Page 17: Bleeding The System
150 bars due to a blocked progressive feeder or lubricating point, the valve opens, and grease visibly emerges from the valve. 2.5.5 Installation of lubrication pipes Carefully cut the lubrication pipe to the correct lengths for the application. SKF LAGD 1000... - Page 18 Insert the pipes into the connectors itted to the application. Lightly pull on each lubrication pipe to ensure that a irm connection made. Fig 15 Insert the plastic pipe into the itting. To detach the pipe, press the plastic pipe forcefully into the itting and pull it out. SKF LAGD 1000...
-
Page 19: Level Monitoring
2.6.2 Level switch The SKF Multipoint automatic lubricators LAGD 1000 series are delivered with an automatic level control function. When the level drops below the “min” marking, the sequence of operations is stopped, and a fault message “FLL” appears in the display. -
Page 20: Operation Of Lagd 1000/Ac
• Display values and parameters • Call up the last parameter in the programming mode • Set values and parameters • Change between programming and display mode • Conirm values • Activate intermediate lubrication • Clear fault message SKF LAGD 1000... -
Page 21: Three Digit Led Display
CO = CONTACT operates as a which the pump delivers timecontrolled contact • Entered and displayed maker (TIMER) and is value in minutes in the pump running mode (CONTACT) c = COUNTER DO NOT USE CO = CONTACT SKF LAGD 1000... -
Page 22: Display Mode For Lagd 1000/Ac
During normal operation, the display is off. It is activated by briely operating one of the two pushbuttons It is used for displaying current values and preset parameters. In addition, the display is used for operator prompting during programming of operating parameters. SKF LAGD 1000... - Page 23 Indicates system monitoring menu Monitoring or monitoring via or monitoring via deactivated cycle switch (factory pressure switch. setting) This mode is not The LAGD 1000 permitted for should always be in LAGD 1000! this mode Indicates operating hours 10/11 SKF LAGD 1000...
-
Page 24: Programming The Lagd 1000/Ac
LAGD 1000/DC.. One internal cycle equates to 0,2 cm per outlet. Designation Number of Running time (tCo) for one outlets internal cycle of progressive feeder giving 0,2 cm /outlet (minutes) LAGD 1000/AC10 LAGD 1000/AC12 LAGD 1000/AC14 LAGD 1000/AC16 LAGD 1000/AC18 LAGD 1000/AC20 SKF LAGD 1000... -
Page 25: Programming Sequence Lagd 1000/Ac
• LAGD 1000/AC 4 x pump running time (tCO) in hours. eg. if tCO = 5 minutes, tPA=0,4 hours minimum • LAGD 1000/DC 9x pump running time (tCO) in hours. eg. if tCO = 5 minutes, tPA=0,8 hours minimum SKF LAGD 1000... - Page 26 5 minutes • LAGD 1000/DC maximum tCO = 5 minutes Set new value Example: 3 min Conirm new value Press briely Changes are written to the memory, and the LED indicators extinguish. Press for more than 2s SKF LAGD 1000...
-
Page 27: Changing The System Monitoring
Not to be used with LAGD 1000 Conirm new settings Press briely New settings are written to the memory, and the LED indicators extinguish Press for more than 2 seconds SKF LAGD 1000... -
Page 28: Changing The Operating Mode
Counter mode Special application Do not activate! Not to be used with LAGD 1000 Conirm new settings Press briely New settings are written to the memory, and the LED indicators extinguish Press for more than 2 seconds SKF LAGD 1000... -
Page 29: Faults
No signal from cycle switch during pump running time Block operation: Signal from cycle switch missing. Contrary to normal operation, the control unit is still in the monitoring mode. If the fault continues to exist for three pump running periods, a fault message is displayed SKF LAGD 1000... -
Page 30: Block Operation
In the fault hour counter, all fault times, which have occurred during the entire operating period of the unit, are totalled up. After calling up Fh, the current reading of the counter in the display mode can be seen as two blocks of three digits each (see section 4.2.1). SKF LAGD 1000... -
Page 31: Maintenance And Repair
Plastic pipe 50 m (164 ft) 11 x Straight connectors G 11 x Right angle swivel connectors G 1 x Connection bar 140 x Cable tie * This item is supplied standard with all LAGD 1000 series lubricators. SKF LAGD 1000... -
Page 32: Technical Data
230 V / 50 Hz; 230 V / 60 Hz Typ. power input 0,5 A 115V: 1 A / 50 Hz; at 20°C (68°F) and 1.3 A /60 Hz max. Operating 230V: 0.45 A / 50 Hz; pressure 0.66 A / 60 Hz SKF LAGD 1000... - Page 33 SKF LAGD 1000...
- Page 34 SKF LAGD 1000...
- Page 36 SKF Maintenance Products ® SKF is a registered trademark of the SKF Group. © SKF Group 2016/06 www.mapro.skf.com www.skf.com/mount...
- Page 37 Appendix 1 LAGD 1000 series - Mounting hole drilling template 1 5 0 MP5234 Appendix...
