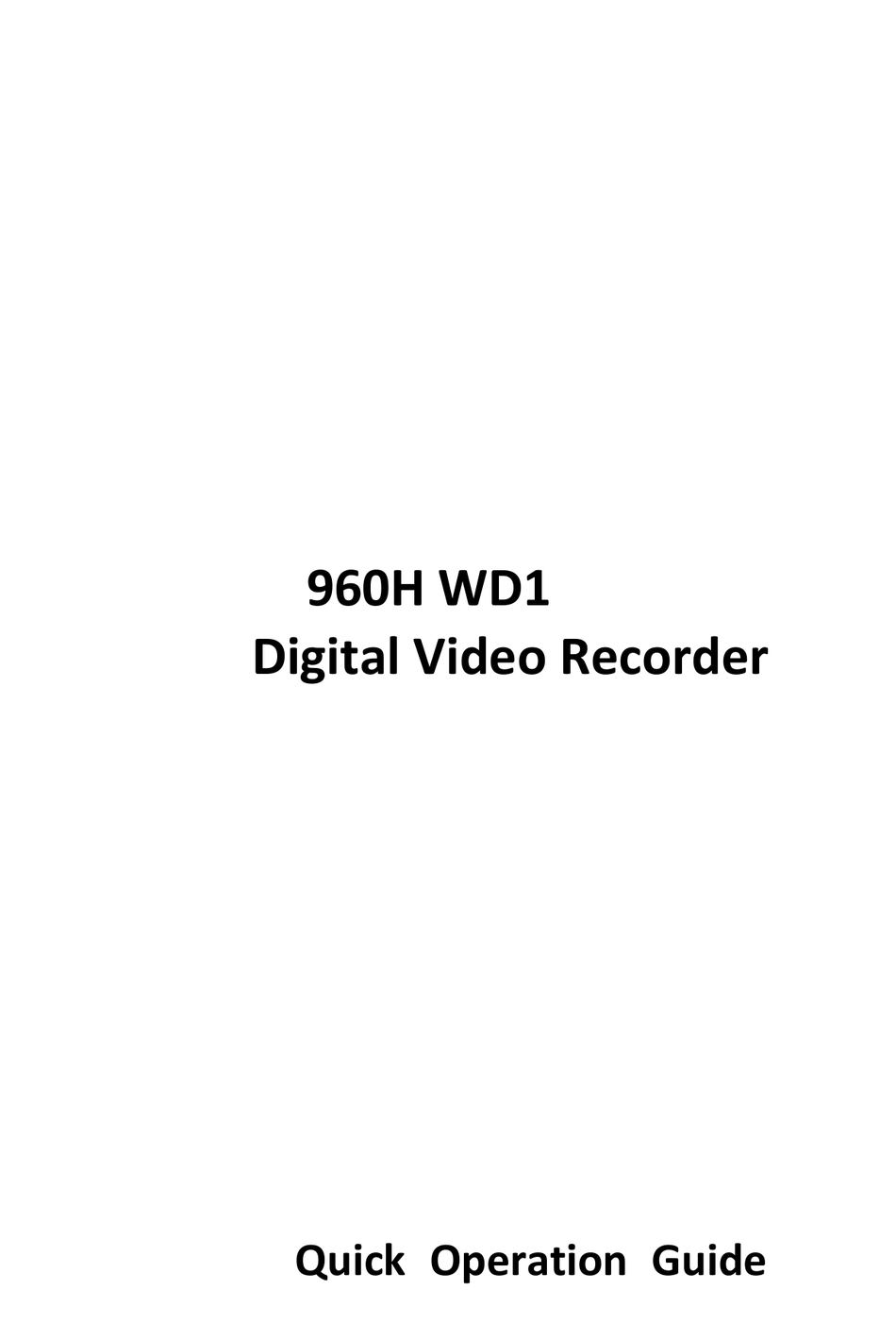

- Page 1 960H WD1 Digital Video Recorder Quick Operation Guide ...
-
Page 2: Dvr Pre-Installation
Quick Operation Guide of SD-0400HL, SD-0802HL, SD-1602HL Series DVR Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer. This manual is applicable to the following models: SD-0400HL, SD-0802HL, SD-1602HL. - Page 3 Quick Operation Guide of SD-0400HL, SD-0802HL, SD-1602HL Series DVR 3. Connect the HDD to the motherboard of the DVR with the included data cable. 4. Connect the power cable to the HDD. 5. Re-install the cover of the DVR and fasten screws.
-
Page 4: Front Panel
Quick Operation Guide of SD-0400HL, SD-0802HL, SD-1602HL Series DVR Front Panel SD Series: The front panel of SD series is shown below: Table 1 Description of Control Panel Buttons Name Function Description POWER indicator turns green when DVR is powered up. POWER STATUS indicator lights in red when data is being read from or written to HDD. -
Page 5: Rear Panel
Quick Operation Guide of SD-0400HL, SD-0802HL, SD-1602HL Series DVR Rear Panel SD-0400HL: SD-0802HL: SD-1602HL: Table 2 Description of Rear Panel Item Description BNC connector for analog video input. VIDEO IN BNC connector for video output. VIDEO OUT Connects USB mouse or USB flash memory devices. - Page 6 Press and hold the orange part of the pluggable block; insert signal cables into slots and release the orange part. Ensure signal cables are in tight. Make sure the pan/tilt receiver unit is connected to the D+ and D- of the RS-485 terminal of SD-0400HL, Note:...
-
Page 7: Specifications
Quick Operation Guide of SD-0400HL, SD-0802HL, SD-1602HL Series DVR Specifications Model SD-04000HL SD-0802HL SD-1602HL Video H.264 compression 4-ch 8-ch 16-ch Video input Video input BNC (1.0 Vp-p, 75 Ω), PAL /NTSC self-adaptive interface Video/Audio Audio input G.711 compression 1-ch, RCA (2.0 Vp-p, 1 kΩ) -
Page 8: Hdd Storage Calculation Chart
Quick Operation Guide of SD-0400HL, SD-0802HL, SD-1602HL Series DVR HDD Storage Calculation Chart The following chart shows an estimation of storage space used based on recording at one channel for an hour at a fixed bit rate. Bit Rate Storage Used... -
Page 9: Menu Operation
Quick Operation Guide of SD-0400HL, SD-0802HL, SD-1602HL Series DVR Menu Operation Menu Structure The menu structure of the SD series DVR is shown as below: Startup and Shutdown Proper startup and shutdown procedures are crucial to expanding the life of the DVR. -
Page 10: Using The Setup Wizard
Quick Operation Guide of SD-0400HL, SD-0802HL, SD-1602HL Series DVR 3. Click the Yes button. The following message box pops up: 4. Turn off the power switch on the rear panel of DVR. Using the Setup Wizard The Setup Wizard can walk you through some important settings of the device. By default, the Setup Wizard starts once the device has loaded. - Page 11 Quick Operation Guide of SD-0400HL, SD-0802HL, SD-1602HL Series DVR 3. Click Next button on the Wizard window to enter the Login window. Enter the admin password. By default, the password is 12345. To change the admin password, check the New Admin Password checkbox. Enter the new password and confirm the password in the given fields.
- Page 12 Quick Operation Guide of SD-0400HL, SD-0802HL, SD-1602HL Series DVR 5. Click Next button which takes you back to the Network Setup Wizard window. Set the network parameters, including the NIC type, IPv4 address, IPv4 subnet mask, default gateway, etc. You can enable the DHCP to automatically obtain an IP address and other network settings from that server.
-
Page 13: Live View
Quick Operation Guide of SD-0400HL, SD-0802HL, SD-1602HL Series DVR Select the recording mode to Normal or Motion Detection. Click Copy to copy the record settings of the current camera to other camera (s) if needed. Click OK to return to the Record Settings window. -
Page 14: Using The Mouse In Live View
Quick Operation Guide of SD-0400HL, SD-0802HL, SD-1602HL Series DVR Using the Mouse in Live View In the live view mode, use the mouse to right-click on the window to access the following menu:... -
Page 15: Main/Aux Output Switching
Quick Operation Guide of SD-0400HL, SD-0802HL, SD-1602HL Series DVR Table 3 Mouse Operation in Live View Name Description Menu Enter the main menu of the system by right-clicking the mouse. Single Screen Switch to the single full screen by choosing channel number from the dropdown list. - Page 16 Quick Operation Guide of SD-0400HL, SD-0802HL, SD-1602HL Series DVR Control icon to enter the PTZ toolbar. Table 4 Description of the PTZ toolbar icons Description Description Icon Icon Icon Description Direction button and Zoom+, Focus+, Zoom-, Focus-, Iris- the auto-cycle button Iris+ The speed of the PTZ...
-
Page 17: Instant Playback By Channel
Quick Operation Guide of SD-0400HL, SD-0802HL, SD-1602HL Series DVR 3. In the pop-up message box, click Yes to finish the quick recording settings for all channels. The full-screen motion detection triggered recording is configured by default in this mode. Note: Playback Play back the record files of a specific channel in the live view menu. - Page 18 Quick Operation Guide of SD-0400HL, SD-0802HL, SD-1602HL Series DVR Press PLAY button on the front panel or IR remote control to play back record files of the channel under single-screen live view. Under multi-screen live view, record files of the top left channel (not masked) will be played back.
- Page 19 Quick Operation Guide of SD-0400HL, SD-0802HL, SD-1602HL Series DVR Backup Recorded files can be backed up to various devices, such as USB flash drives, USB HDDs or a DVD writer. To export recorded files: 1. Click Menu>Export to enter Video Export interface.
- Page 20 Quick Operation Guide of SD-0400HL, SD-0802HL, SD-1602HL Series DVR 3. Check backup result. Choose the record file in Export interface and click the button to check it. 0202031030416...
