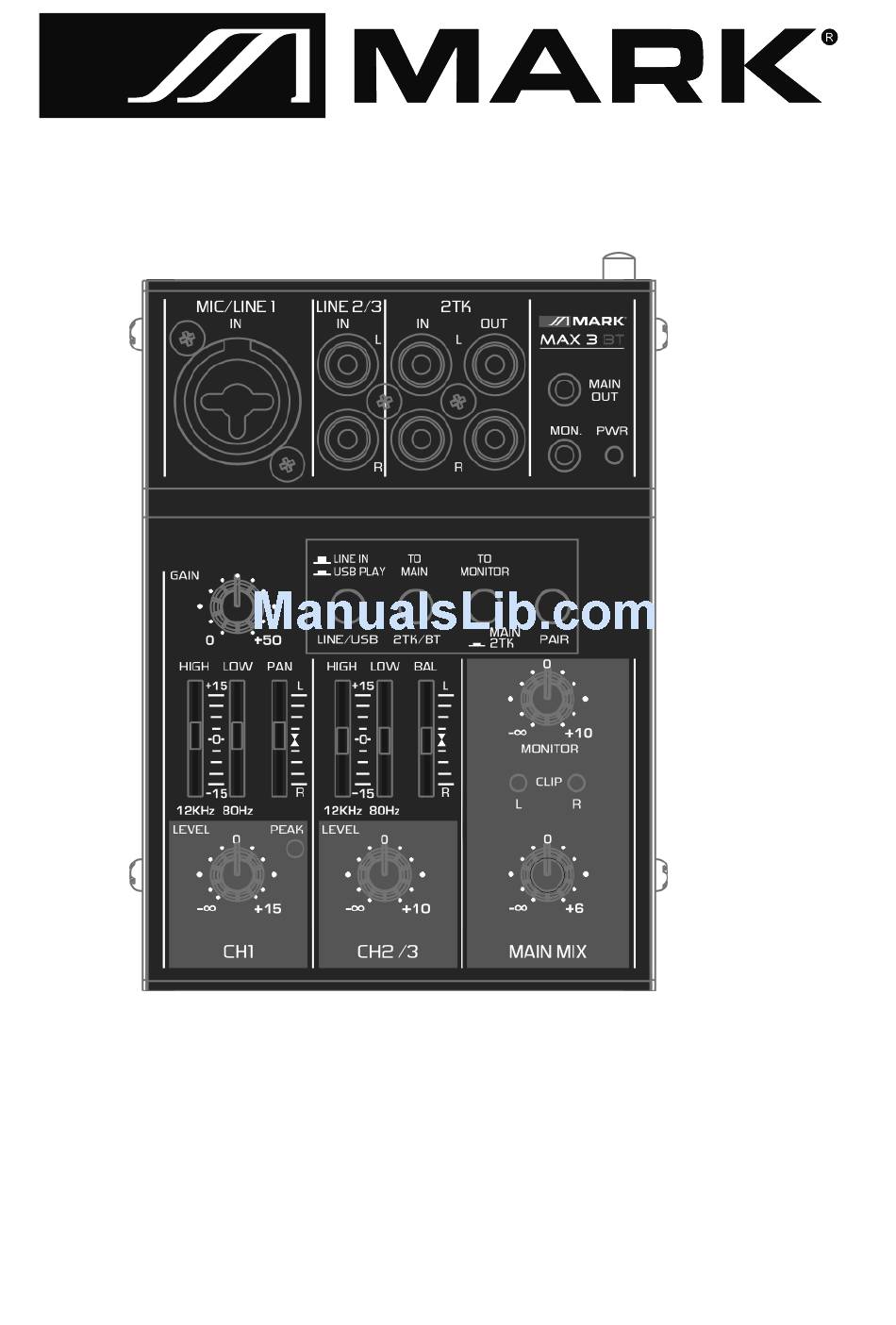

  • Page 1 MAX 3 BT User Manual / Instrucciones de Usuario Rev 16.05.02...
  • Page 2 The mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. MAX 3 BT - 1 - User Manual / Manual de uso...
  • Page 3 INTRODUCTION..............3 FEATURES................3 INSTRUCTION..............3 CONTROL ELEMENTS............4 CONNECTING DIAGRAMS..........8 WIRING CONNECTION............9 BLOCK DIAGRAM.............10 TECHNICAL SPECIFICATIONS........11 MAX 3 BT - 2 - User Manual / Manual de uso...
  • Page 4 * Either USB bus-powered or external adaptor * Bluetooth player function Make sure MAX 3 BT mixer is used in the area of ventilation. Do not install or use this product near any direct hear source(such as amplifier or heater).
  • Page 5 MAX 3 BT - 4 - User Manual / Manual de uso...

  • Page 6: Gain Control

    This treble control can be used to reduce the HF noise or boost the sound of percussion. 12- LOW This bass control can be used to boost male or effect of drum & bass. MAX 3 BT - 5 - User Manual / Manual de uso...

  • Page 7: Level Control

    OUT(The signal of BT input will not be assigned to MONITOR OUT). When the control is disengaged, the signal of MAIN MAX OUT will be assigned to MONITOR OUT. MAX 3 BT - 6 - User Manual / Manual de uso...
  • Page 8 This is main mix control used for adjusting the main mix output level. 22- CLIP LED(L&R) This is main mix level clip LED. When this LED lights up, main mix level will be clipped. MAX 3 BT - 7 - User Manual / Manual de uso...
  • Page 9 MAX 3 BT - 8 - User Manual / Manual de uso...
  • Page 10 MAX 3 BT - 9 - User Manual / Manual de uso...

  • Page 11: Block Diagram

    Block Diagram MAX 3 BT - 10 - User Manual / Manual de uso...
  • Page 12 Stereo Channel LINE INPUT @ max,1 kHz, 16dBu MAIN OUT(3.5 jack stereo) Rs=600 TAPE INPUT 6dBu MAIN OUT(3.5 jack stereo) TAPE INPUT 9dBu onitor (3.5 jack stereo) MAX 3 BT - 11 - User Manual / Manual de uso...
  • Page 13 1=GND,2=HOT, +20V power 3=COLD) USB Connection DC5V, 500mA Power supply DC5V, 550mA Adaptor Power 2.5W Consumption 98 mm*136 mm*34 mm Dimension (L*W*H) Physical 0.48Kg (1.1 lbs) Weight MAX 3 BT - 12 - User Manual / Manual de uso...
  • Page 14 Peligroso (vivo) MAX 3 BT - 13 - User Manual / Manual de uso...
  • Page 15 CABLEADO MAX 3 BT MAX 3 BT MAX 3 BT - 14 - User Manual / Manual de uso...
  • Page 16 MARK. MARK estéreo Receptor Bluetooth MAX 3 BT un PC MAX 3 BT MAX 3 BT - 15 - User Manual / Manual de uso...
  • Page 17 MAX 3 BT - 16 - User Manual / Manual de uso...
  • Page 18 Agudos Graves aumentar o reducir la ganancia de esas frecuencias. MAX 3 BT - 17 - User Manual / Manual de uso...
  • Page 19 MAX 3 BT - 18 - User Manual / Manual de uso...
  • Page 20 Diagrama de Conexión MAX 3 BT - 19 - User Manual / Manual de uso...
  • Page 21 Cableado cablearse desbalanceado cablear MAX 3 BT - 20 - User Manual / Manual de uso...
  • Page 22 Máximo nivel de ganancia MAX 3 BT - 21 - User Manual / Manual de uso...
  • Page 23 Auriculares MAX 3 BT - 22 - User Manual / Manual de uso...
