2

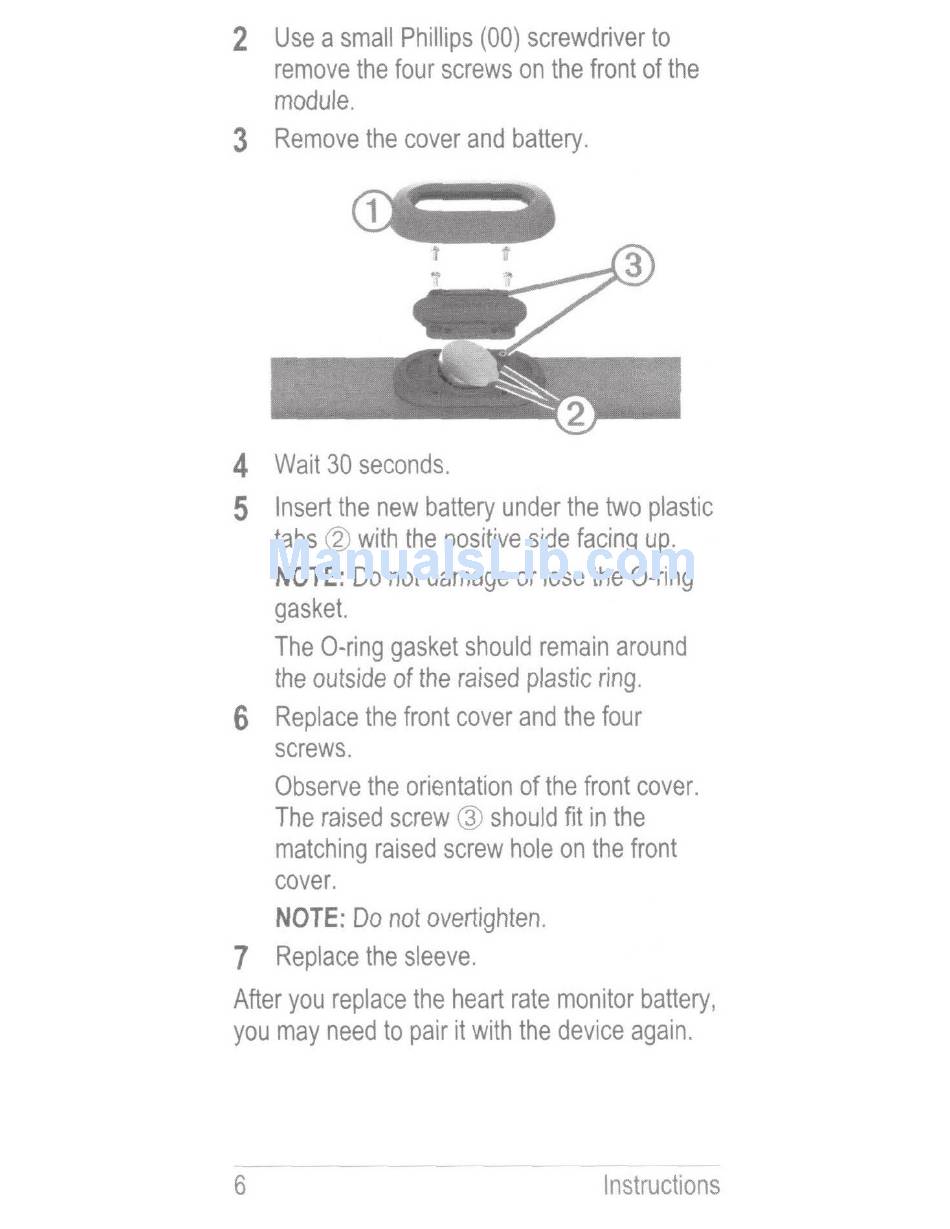

Use a small Phillips (00) screwdriver to
remove the four screws on the front of the
module.
3
Remove the cover and battery.
4
Wait 30 seconds.
5
Insert the new battery under the two plastic
tabs
@
with the positive side facing up.
NOTE:
Do not damage or lose the 0-ring
gasket.
The 0-ring gasket should remain around
the outside of the raised plastic ring.
6
Replace the front cover and the four
screws.
Observe the orientation of the front cover.
The raised screw
®
should fit in the
matching raised screw hole on the front
cover.
NOTE: Do not overtighten.
7
Replace the sleeve.
After you replace the heart rate monitor battery,
you may need to pair it with the device again.
