IntesisHome IS-IR-WIFI-1 User Manual

Wi-fi interface for ir communication with air conditioners
Hide thumbs Also See for IS-IR-WIFI-1:

Advertisement

Quick Links

Download this manual
SMARTPHONES & INTERNET HVAC CONTROL
IS-IR-WIFI-1
Universal Controller

Advertisement

loading
Need help?

Need help?

Do you have a question about the IS-IR-WIFI-1 and is the answer not in the manual?

Questions and answers

Related Manuals for IntesisHome IS-IR-WIFI-1

Summary of Contents for IntesisHome IS-IR-WIFI-1

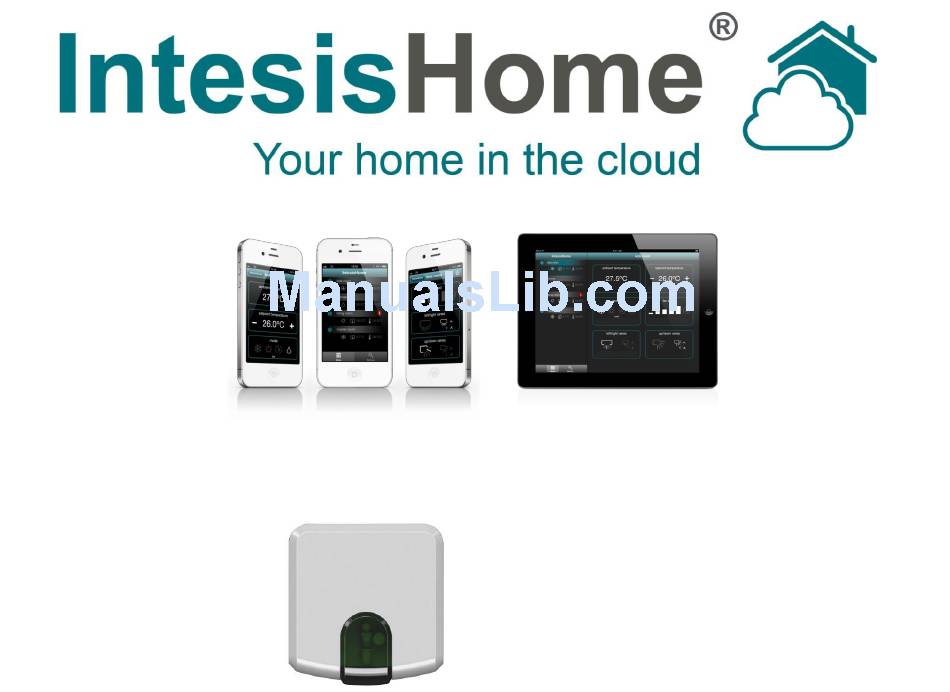

  • Page 1 SMARTPHONES & INTERNET HVAC CONTROL IS-IR-WIFI-1 Universal Controller...
  • Page 2 Apps & Web Installation Introduction Wi-Fi Setup New User...
  • Page 3 Introduction Overview IntesisHome is the most advanced solution to remotely manage an Air Conditioning system using all sort of mobile System devices such as Smartphones, Tablets and PC. Devices Benefits Control Licenses Example 1 Example 2 Video...
  • Page 4 Introduction Overview There are 3 basic components on IntesisHome: System The Air Conditioning units are controlled from a webpage or Devices using an iOS or Android APP in a very intuitive way Benefits Control Licenses wireless device controlling each unit...
  • Page 5 Introduction Overview IntesisHome IS-IR-WIFI-1 device is an easy to install and small device which allows connectivity with the IntesisHome System application and connects with your climate system using Infrared (IR) Devices The device is compatible with any air conditioner unit that...
  • Page 6 Introduction Overview Some IntesisHome benefits are: System - Turn the AC on before arriving home Devices - Know the actual Ambient Temperature of your home Benefits - Change the program if the user is going to arrive late Control Licenses...
  • Page 7 - Change the Vanes position - See the Room Temperature Control - Control the Set Point Temperature - Scenes and Timers Licenses - Schedule Calendar - And many more… Example 1 Example 2 Video Check complete features list at http://www.intesishome.com/features...
  • Page 8 Forgot to turn off the heat pump when leaving home? Do you want to reduce unnecessary cooling or warming when Benefits you are out of home? Control IntesisHome puts in your hand the ability to control your air conditioning system anytime, anywhere. Example 1 Example 2 Video...
  • Page 9 Example 2: Shops System Do you have a Twin, Triple or double Twin system installed? Devices With only one IntesisHome device are you able to setup an Benefits Annual schedule calendar. Control - Turn on the units before open the shop, your first customer...
  • Page 10 Introduction Overview Video: Universal controller introduction (EN) System Devices Benefits Control Licenses Example 1 Example 2 Video Also you can see this video on: http://youtu.be/gX0K_0ivNPQ (EN) http://youtu.be/x-jvMfnR0Ig?list=UU_yv659xCOWn5Pfr2JoPIsg (ES) http://youtu.be/SPabNPha-2E?list=UU_yv659xCOWn5Pfr2JoPIsg (PT)

  • Page 11: Installation

    Installation - Packaging content Packaging Location - IntesisHome device Power supply - Power supply * Power Supply includes UE, US, UK ,AU Plugs & a wire to be connected IR configuration directly to the Indoor Unit Power Supply - Documentation...
  • Page 12 Next to the Air conditioner fixed on the wall Pointing at the Air conditioner, placing it over any surface - IS-IR-WIFI-1 Includes 2 IR emitters making the installation very flexible and also includes an IR receiver, if you want to know how are working your unit, you must install the device in a place where can receive the signal sent by the manufacturer IR Remote Controller.
  • Page 13 Packaging Location The IntesisHome device comes with a 5V DC 0,2 A power supply to be connected to the device. We do also provide 4 different types of plugs to match your current location needs: European Union (EU), United Kingdom (UK), United States (US) and Australia (AU).
  • Page 14 2- Pick up the IR controller and push the On/Off button pointing to the IntesisHome Universal device. IR configuration If process is not ok, the IntesisHome device LED will be blinking Red. More info… *Repeat the process from Step 1 and check our compatibility list.
  • Page 15 Installation - More info Packaging Location For detailed instructions please see the user manual located at: Power supply http://intesishome.com/docs/IS-IR-WIFI-1_User_Manual_eng.pdf IR configuration More info…...
  • Page 16 Initial Setup (I) Initial Setup (II) Automatic (I) Automatic (II) Locate your smartphone where you want to install the IntesisHome device and check if you have a good Wi-Fi signal Automatic (III) If you have enough Wi-Fi signal then proceed to install Manual If you don’t have enough Wi-Fi signal then:...
  • Page 17 Wi-Fi Setup Before starting IntesisHome Wi-Fi Specifications Specifications - Wi-Fi protocol IEEE 802.11b Requirements (IEEE 802.11bgn compatible) - RF Channels available 1 to 14ch (From factory 1 to 11ch) Initial Setup (I) - Security types WEP, WPA and WPA2 - Wi-Fi configuration methods...
  • Page 18 Wi-Fi Setup Before starting What do you need? Specifications Requirements Initial Setup (I) Initial Setup (II) Automatic (I) Automatic (II) For complete information about Wi-Fi configuration process, please check next Automatic (III) manual Manual http://www.intesishome.com/docs/IntesisHome_DeviceConfig.pdf Error message...
  • Page 19 Wi-Fi Setup Before starting Initial Setup Specifications - Be sure have IntesisHome device with Requirements Led Green On Initial Setup (I) Initial Setup (II) - With your Smartphone, Tablet or Laptop search for Automatic (I) the WI-FI network called “IntesisHomexxxxxx”...
  • Page 20 Wi-Fi Setup Before starting Initial Setup Specifications - Open the web browser and access to ihconfig.com page Requirements Initial Setup (I) Initial Setup (II) Automatic (I) - The Welcome Screen configuration page will appear Automatic (II) Automatic (III) Manual Error message...
  • Page 21 Wi-Fi Setup Before starting Automatic configuration Specifications Requirements Click “Automatic” in order to start search Wi-Fi Initial Setup (I) networks around the device Initial Setup (II) Automatic (I) Automatic (II) After some seconds a Wi-Fi networks list will appear. Automatic (III) Find your Wi-Fi network and click “Select”...
  • Page 22 Wi-Fi Setup Before starting Automatic configuration Specifications Insert your password and click “Next” Requirements Initial Setup (I) *If you need to setup an Static IP Address, click “Advanced Initial Setup (II) Options”, introduce settings and then click “Next” Automatic (I) Automatic (II) Check if the data on the Automatic (III)
  • Page 23 Wi-Fi Setup Before starting Automatic configuration Specifications Requirements Initial Setup (I) Initial Setup (II) Step 1: The device is trying to connect to the Wi-Fi Router Automatic (I) Step 2: The device has been connected to the Wi-Fi router Automatic (II) and now is downloading the last Firmware Update Automatic (III) Step 3: After the update, the device will automatically reboot...
  • Page 24 The SSID is the name of the Wi-Fi network. This name can Requirements be Hidden by the Wi-Fi Router Settings. If you want to connect the IntesisHome device to one of this networks Initial Setup (I) then use Manual configuration.
  • Page 25 WPS configuration (Only for WPS compatible Wi-Fi routers) Specifications - Click on WPS menu on the Web page or Click WPS Requirements button on the IntesisHome device in order to Start Initial Setup (I) Initial Setup (II) Automatic (I) - Then Click on WPS button on the Wi-Fi router...
  • Page 26 Initial Setup (I) http://www.intesishome.com/docs Initial Setup (II) /IntesisHome_DeviceConfig.pdf Automatic (I) If any problem appears, you can connect again to the Automatic (II) IntesisHome device and in the Welcome Screen the Error Message will be showed Automatic (III) Manual Error message...
  • Page 27 New User Create account Create an account Fill the form After having connected the IntesisHome device to Internet, Login will able create account www.intesishome.com Add device (I) Add device (II) Add device (III)
  • Page 28 New User Create account Fill the form Fill the form Fill the form with proper personal data and accept the terms Login and conditions Add device (I) Add device (II) Add device (III) A validation e-mail will be sent to the introduced e-mail account during the registration process Please, follow instructions in the validation e-mail to finish the registering process.
  • Page 29 New User Create account Login Fill the form Introduce Username or E-mail and the password Login Add device (I) Add device (II) Add device (III) Then click “Login” button...
  • Page 30 New User Create account Add device Fill the form First time login into Login IntesisHome, this window will show up Add device (I) Add device (II) Otherwise, access Add device (III) configuration section clicking on the Settings button on the main page Click on “Devices”...
  • Page 31 Add device (III) - Introduce the registration number. You can find this information on the cover of the IntesisHome device User Manual or in a label in the device - Note. Be sure to have the device already configured and connected to Internet.
  • Page 32 New User Create account Add device Fill the form Login Add device (I) Add device (II) Add device (III) - If you use Automatic configuration please choose your AC brand from the list. - If you use Manual configuration please choose your AC brand and model from the list.
  • Page 33 Apps & Web iOS App iOS App Android App - iOS Devices: iPhone, iPod and iPad (iOS 7.0 or higher) Login Tutorial - Download for free in AppStore.
  • Page 34 Apps & Web iOS App Android App Android App - Android Devices: Smartphones and Tablets (Android 2.2 or higher) Login Tutorial - Download for free in Google Play...
  • Page 35 Apps & Web iOS App Android App - Web available in any PC, Tablet or Smartphone Login Tutorial Note: User & Device configuration could be made only in the Web...
  • Page 36 2- Remember User Name & Password for the next time 3- Login Button 4- View and example: If you don’t have any account you can use this to see how IntesisHome works 5- Create a new user account at IntesisHome...
  • Page 37 Apps & Web iOS App Tutorial: How does the APP work Android App Login Tutorial Also you can see this video on: http://www.youtube.com/watch?v=P4YMvkzUFXM...
