BRIDGE

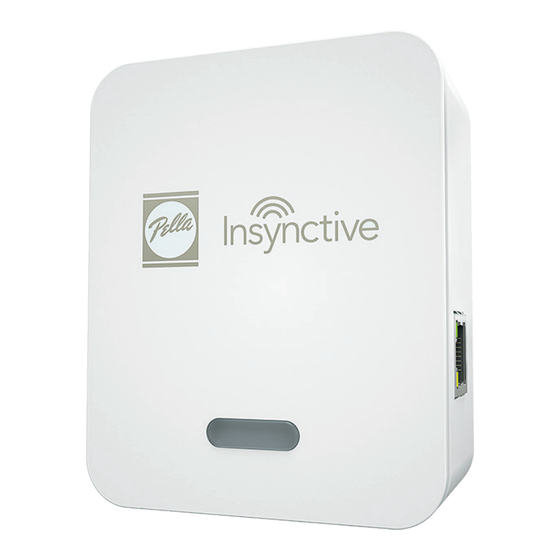

BRIDGE wirelessly connects your Pella Insynctive
products to STATUS INDICATOR or a compatible
WHAT'S NEEDED:
• ONE OR MORE PELLA INSYNCTIVE PRODUCTS (sold separately).
• MOTOROLA BP6X RECHARGEABLE BATTERY (optional — sold separately): Supplies backup
power to BRIDGE during power outages.
• PELLA INSYNCTIVE STATUS INDICATOR (optional — sold separately): Indicates status of
Pella Insynctive SENSORS. Or you can use a compatible security or home automation system.
PELLA
INSYNCTIVE
®
security or home automation system.
PRODUCT GUIDE
™
PE L LA
®
IN SYN CT IVE
™
BR IDG E P RO D U CT G UID E
1
|

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the insynctive bridge and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pella insynctive bridge

Summary of Contents for Pella insynctive bridge

  • Page 1 • MOTOROLA BP6X RECHARGEABLE BATTERY (optional — sold separately): Supplies backup power to BRIDGE during power outages. • PELLA INSYNCTIVE STATUS INDICATOR (optional — sold separately): Indicates status of Pella Insynctive SENSORS. Or you can use a compatible security or home automation system. PE L LA ®...
  • Page 2 TA BLE O F CO N TE N TS General and Safety Information Registering Products Need Help? Home Automation or Security System Warnings Product Overview Specifications Detailed Instructions Factory Reset Bridge Additional Instructions Volume and Chime Settings Changing Chime Settings Chime Indication Table Installation Recommendations Product Manufacturer’s Code...
  • Page 3 Failure to adhere to the warnings below may result in death, serious injury and/or loss of valuables. • Pella Insynctive BRIDGE is not 100% reliable for a variety of reasons. For example, BRIDGE: — communicates data wirelessly, and wireless data is susceptible to interference or failure.

  • Page 4: Product Overview

    Insynctive.Pella.com/HomeAutomation. WITHOUT HOME AUTOMATION (Stand-Alone Mode): In stand-alone mode, BRIDGE will beep twice (if chime is enabled) when Pella Insynctive SENSORS within the system change to opened or unlocked status. BRIDGE will provide current SENSOR status to STATUS INDICATOR when STATUS INDICATOR senses motion within its field of range.

  • Page 5: Detailed Instructions

    Refer to the Quick Start Guide included with your Insynctive product(s) for instructions on how to sync with BRIDGE. WITH HOME AUTOMATION: Visit Insynctive.Pella.com/HomeAutomation for a list of compatible home automation systems. For installations via Ethernet cable, skip Z-Wave sync process below.
  • Page 6 BRIDGE is now ready to sync to Insynctive devices. Refer to the Product Guides at Insynctive.Pella.com/Support for instructions on how to sync with BRIDGE. PLUG NOTE: Pella Corporation provides no warranty and is not ETHERNET responsible for the function, reliability, or any damage caused PLUG BATTERY by non-Pella products.
  • Page 7 DETA I L E D I N STR U CTIO NS (c o nt i nu e d ) NOTE: Factory Reset deletes the devices from BRIDGE, but not from the home automation systems user interface. To delete devices from the user interface, follow the instructions provided by the home automation provider for deleting or removing non-functioning devices or nodes.
  • Page 8 DETA I L E D I N STR U CTIO NS (c o nt i nu e d ) To avoid these issues, BRIDGE memory may be cleared to default the non-functioning sensor. To clear the memory, • Press and hold both the Sync and Test button until BRIDGE beeps three times.

  • Page 9: Additional Instructions

    S3 and S4. S3 S4 CHANGING CHIME SETTINGS See Insynctive.Pella.com/Support for how-to videos. Set the chime control switches to your preference using the table below as a guide. Note that the chime switches only control BRIDGE chime when a door or window is opened S1 S2 or unlocked.
  • Page 10 Each Insynctive product contains a label with a Manufacturer’s ™ MANUFACTURER’S Code that will be required to help Pella Customer Service identify CODE INSIDE BATTERY COVER the product if service is required. To locate the Manufacturer’s Code for BRIDGE, remove the battery cover. The label is located on the interior of the Bridge.

  • Page 11: Special Features

    SPE C IAL FE AT U RE S SENSOR TEST MODE Sensor test mode may be used to determine if an Insynctive SENSOR is operating properly. ™ • To enter SENSOR test mode, press and release the Test TEST button on BRIDGE. BRIDGE will beep and light will turn BUTTON solid orange.
  • Page 12 • The light will remain solid orange to indicate that a fault still exists. The chimes will reoccur in 24 hours. FAULT CONDITION FAULT NOTIFICATION SENSOR Low Battery Fault A Pella Insynctive SENSOR Three beeps with one flash of ® ™...
  • Page 13 S P EC I A L FE AT U R ES ( c on tin u ed ) To check or repeat fault codes, press and release BRIDGE Test button twice. If there is currently an active fault, BRIDGE will beep and orange light will flash as indicated in the table on the previous page.

  • Page 14: Troubleshooting

    TRO UB LE S HO OT IN G Also refer to Insynctive.Pella.com/Support for more troubleshooting information, including videos, frequently asked questions and reference materials. PROBLEM CAUSE AND POSSIBLE SOLUTION BRIDGE does not beep when Chimes have been turned off. See Volume and Chime section door or window is opened.

  • Page 15: Limited Warranty

    • Connect the equipment to an outlet on a different circuit from the receiver. • Consult the dealer or an experienced radio/TV contractor for help. Changes or modifications not expressly approved by Pella Corporation could void the user’s authority to operate the equipment. This device complies with Industry Canada license-exempt RSS standard(s).
