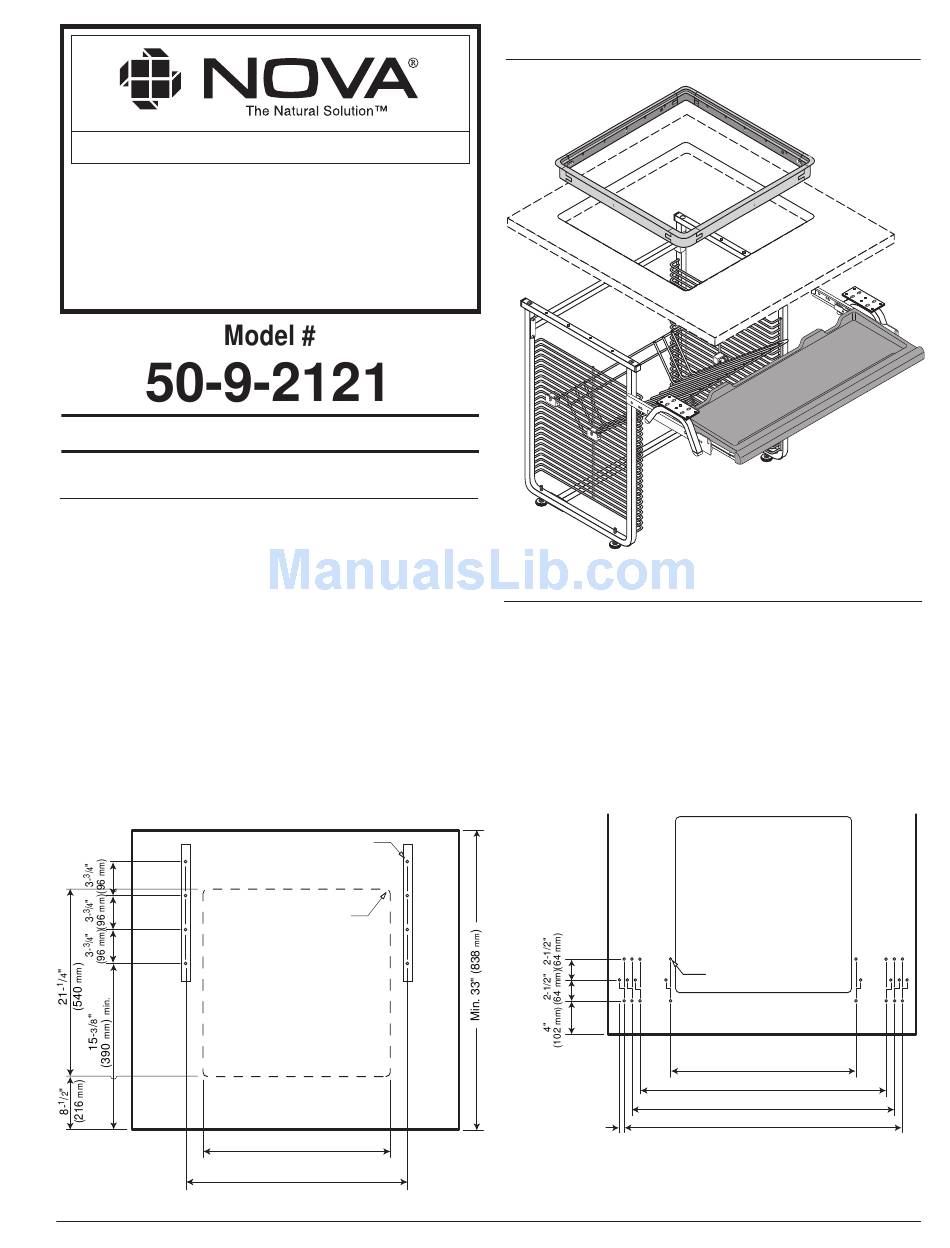

Nova 50-9-2121 Assembly Instructions

The natural way to look at a computer™
Semi-Recessed
Retrofit Kit
Assembly Instructions
-24, -30, -33, -34

Step 1

If the worksurface is prepared for Retrofit Kit & Keyboard Drawer
Installation, skip to Step 3. Otherwise, please prepare your worksurface
to the specifications shown in Figure 1a for Viewport & Side Assembly
milling/drilling.
The retrofit kit can be installed in almost any work surface. The kit is
designed to attach to a work surface that is 1-1/8" to 2" in thickness. Thinner
work surfaces may require some build-up of material for proper installation.
Glass work surfaces are not recommended. If your countertop is a solid
material such as natural granite or marble or a fabricated solid surface such
as Corian, you should use a professional fabricator to create the opening and
surface mounting anchors required for your kit.For ward a copy of the
boring pattern and hole size cut out to a professional fabricator.
FIGURE 1a
UNDERSIDE OF TOP
P.O. Box 725 • 421 W. Industrial Avenue • Effingham, Illinois 62401 • Phone: (800) 730-6682 • Fax: (800) 940-6682 • E-mail: info@novasolutionsinc.com • Website: http://www.novadesk.com
IISR004 50-9-2121 Asy. Instr. - Rev. 3/04/05, © Nova Solutions, Inc. 2005
3
/ " Dia.
16
5
/ " Deep
8
8 Places
1
/ "(12.7mm) R.
2
4 Places
FRONT EDGE
1
21- / "
4
(540 )
mm
1
25- / "
16
(637 )
mm
ASSEMBLED VIEW

Step 2

Keyboard Drawer holes (as shown in Figure 1b) should be drilled for
the specific keyboard size. Care must be exercised to use the
specifications in Figure 1b regarding drill size and hole depth.
To offset viewport and keyboard drawer, please call customer
support at 1-800-730-6682 for special instructions.
FIGURE 1b
22-
28-
32-
1-1/4"( 32 )
Offset
mm
(Typ.)
3
/ " Dia.
16
5
/ " Deep
8
6 Places
FRONT EDGE
1
/ " (574mm)
2 (f/24"Keyboard)
1
/ " (713mm)
16 (f/30"Keyboard)
1
31- / " (794mm)
4 (f/33"Keyboard)
1
/ " (816mm)
8 (f/34"Keyboard)
Page 1
