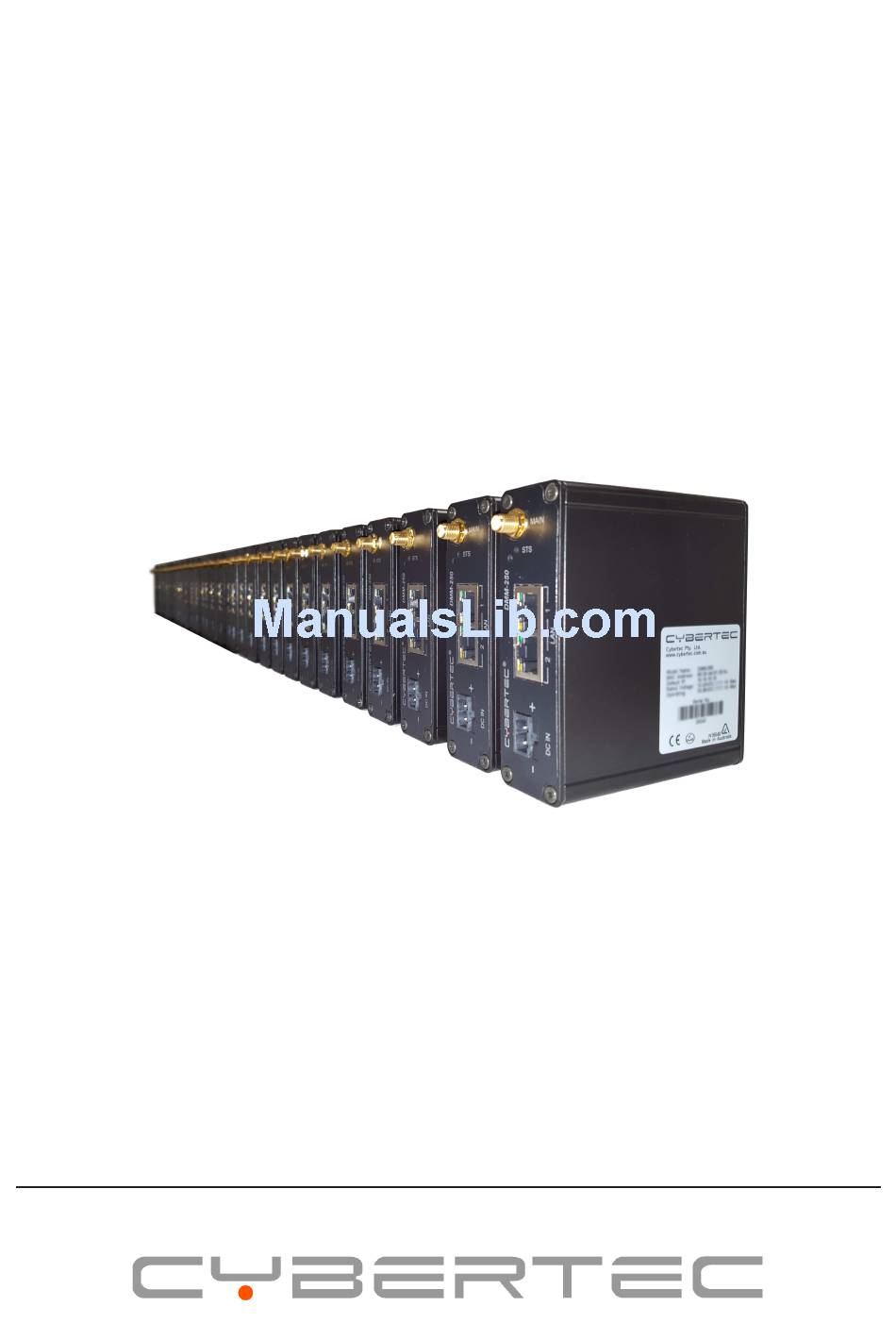

Page 1: Quick Start Guide
DMM Series 3G / GSM Modem Router Quick Start Guide Document Number: 0013-001-000508 Version: 1.0 (08 March, 2016) -
Page 2: Copyright C 2016 Dmm Series Quick Start Guide 08 March
fitness for a particular purpose, are made in relation to the accuracy and reliability or contents of this document. Cybertec Pty Ltd reserves the right to revise this document or withdraw it at any time without prior notice. -
Page 3: Table Of Contents
6.2 Connecting to the DMM Series Web Server ....... . . -
Page 4: Introduction
The Cybertec DMM Series product range includes several models of 3G and GSM Modems. This guide will provide an overview of the features and interfaces of the DMM Series Modem . Installation of the unit and antenna will be described as well as the configuration of the unit for a standard Internet connection. Further information can be obtained from the MRX Configuration and Management User Manual. -
Page 5: Indicators And Interfaces
08 March, 2016 4 Indicators and Interfaces This section describes the indicators and interfaces for the DMM Series. 4.1 Front Panel The Ethernet ports, antenna connector, power connector and indicators are located on the front panel as show in figure 1. -
Page 6: Rear Panel
4.3 Indicators The DMM Series modem has single power / status LED on the front panel of the unit. The indicator will light green when power is applied and will light red when an error or fault condition is detected. -
Page 7: Installation
The steps required to install the DMM Series Modem are described. The DMM Series Modem should be mounted in a clean and dry location, protected from water, excessive dust, corrosive fumes, extremes of temperature and direct sunlight. The unit uses convection cooling, allow sufficient ventilation to ensure adequate cooling of the modem. -
Page 8: Antenna
5.2 Antenna The antenna connector on the DMM Series Modem is an SMA type and found on the rear of the unit. The supplied antenna is intended for direct mounting to the SMA connector. Attach the antenna as shown in Figure 5. Ensure that the connecting nut is done up tightly in order to ensure a good connection. -
Page 9: Functional Earth
Figure 7: Functional earth termination screw. 5.5 Mounting The DMM Series Modem is designed to be DIN rail mounted. Using the DIN rail clip on the rear of the unit ensure the unit is securely mounted to a suitable DIN rail. -
Page 10: Accessing The Web Interface
All configuration of the DMM Series Modem is performed via the web interface. In order to view the web pages a computer with a fixed IP address, on the same sub-net as the DMM Series Modem, will need to be connected to one of the LAN ports. - Page 11 Figure 9: Internet Protocol (TCP/IP) Properties dialogue box showing the recommended IP settings. Note: If a web browser was open prior to making the network changes, then it will need to closed and re-started before attempting to connect to the DMM Series Modem. Page 10...
-
Page 12: Connecting To The Dmm Series Web Server
6.2 Connecting to the DMM Series Web Server • Open a web browser on the PC and browse to 10.10.10.10 (the default DMM Series, IP address) . • A login box similar to Figure 10 will pop up. If the box fails to display, re-check the cable connections to the unit and the IP address settings of the PC. -
Page 13: Basic Configuration
08 March, 2016 7 Basic Configuration The section explains the procedure to configure the DMM Series Modem for basic packet mode functionality. For details on configuring the modem for Circuit Switched mode and for more advanced configuration refer to the DMM Series Modem User Manual. - Page 14 Cybertec Pty Limited Document: 0013-001-000508 Version: 1.0 Copyright c 2016 DMM Series Quick Start Guide 08 March, 2016 Figure 13: SIM PIN control dialogue. Figure 14: SIM PIN control dialogue. 7.1.3 Adding a Network Connection Profile To access the packet mode configuration, select Wireless ⊲ Packet Mode from the menu. The screen shown in Figure 15 will be displayed.
- Page 15 To complete the configuration of the wireless connection, set the Connection state to “Always connect” and click the “Update” button to save the changes. Once the changes have been set, the DMM Series Modem will attempt to establish a connection to a wireless network. The connection time will vary and may take several minutes to complete. Figure 17 shows the completed wireless configuration.
- Page 16 Cybertec Pty Limited Document: 0013-001-000508 Version: 1.0 Copyright c 2016 DMM Series Quick Start Guide 08 March, 2016 7.1.5 Connection Status To check the status of the connection select “Status” from the top level menu and then select “Wireless” from the second level menu.
-
Page 17: Configure The Lan Interface And Dhcp Server
• Enter the new IP address and netmask in the Interface Configuration table. • Click Update to set the changes. Once the changes have been set, the IP address of the DMM Series Modem will change. Enter the new address in the browser on the PC. It will be necessary to login again, following the procedure described in the previous section. -
Page 18: Configure Clients To Use The Dmm Series Modem
• If the clients have a DHCP address allocated by the DMM Series Modem, they will have learned the necessary settings. No further configuration is needed. • If clients have static IP addresses, set their default route and DNS server to the IP address of the DMM Series Modem . -
Page 19: Troubleshooting
• Check the IP address settings of the computer have been set correctly. Refer to section 6. • The IP address of the DMM Series Modem may have been changed from the default value. If this is the case then: ◦... - Page 20 Cybertec Pty Limited ABN 72 062 978 474 Unit 11, 41-43 Higginbotham Road Gladesville NSW 2111 Australia Phone: +612 9807 5911 Fax: +612 9807 2258 www.cybertec.com.au...
