HDMI- KVM Switch Manual

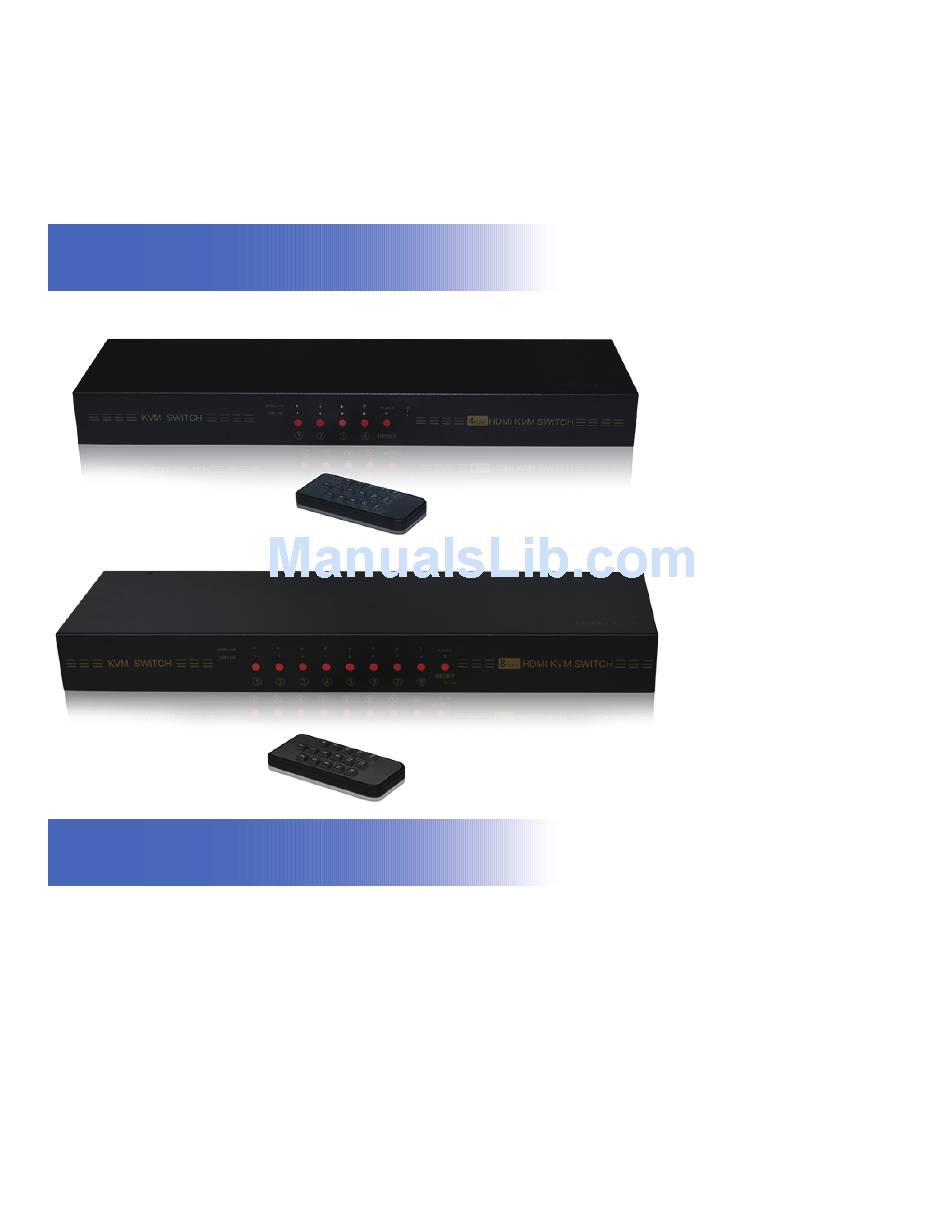

Appearance
Feature
No need to install any software, support control computer by hot key/ button/ remote
◎
controll.
USB port KVM switch.
◎
LED light shows work status.
◎
Support add or remove units over plug and play without shut off the switch.
◎
Apply to DVR, ect.
◎
□
41HK
□
81HK
41HK
81HK
Advertisement
Related Manuals for EKL 41HK
Summary of Contents for EKL 41HK
- Page 1 HDMI- KVM Switch Manual □ □ 41HK 81HK Appearance 41HK 81HK Feature No need to install any software, support control computer by hot key/ button/ remote ◎ controll. USB port KVM switch. ◎ LED light shows work status. ◎ Support add or remove units over plug and play without shut off the switch.
- Page 2 Connection Diagram （Take 41HK for example） HDMI Signal Sources Display Device HDMI HDMI Input Output HDMI Input HDMI Input USB Input USB Input HDMI HDMI Input Input Power in keyboard & mouse remote controller HDMI Signal Sources Use Manual ◎Make sure all cables are properly connected before turning.
- Page 3 使用方法 Operation 1. Connect signal source , display device, keyboard and mouse correctly. 2. Switch method: directly switch by switch button or Hot Key. Hot Key : 1.Double Click Scroll Lock into Control state, at the same time, the switch make two sounds “di...di...”...
- Page 4 1920*1440 or 1080P 2.55GHZ Bandwidth Power DC 9V Shell Metal Size 430*118*45mm Net Weight 4port KVM 1.2KG 8port KVM 1.4KG Packing List 配件清单 Name Remark □ □ HDMI port KVM switch 41HK 81HK Remote control Power adapter User manual Warranty card Rack...
