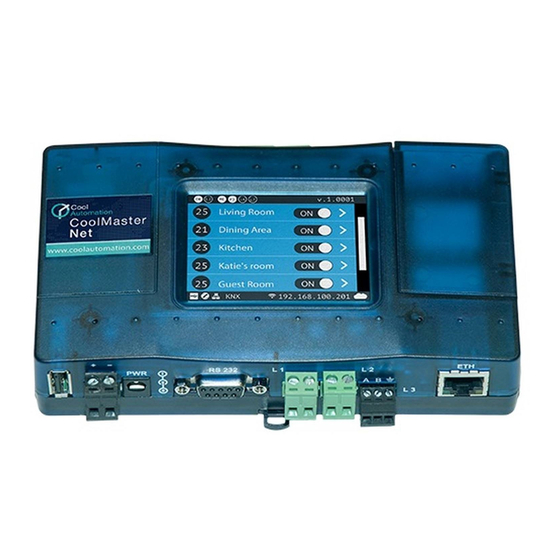

Cool Automation CoolMasterNet Quick Installation Manual

Universal hvac bridge
Hide thumbs Also See for CoolMasterNet:

Advertisement

Quick Links

Download this manual See also: Quick Installation Manual
CoolMasterNet
Universal HVAC Bridge
Quick Installation Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the CoolMasterNet and is the answer not in the manual?

Questions and answers

Related Manuals for Cool Automation CoolMasterNet

Summary of Contents for Cool Automation CoolMasterNet

  • Page 1 CoolMasterNet Universal HVAC Bridge Quick Installation Guide...
  • Page 3 Any lack of electric circuit or any deficiency caused by installation may result in an electric shock or fire. Do not relocate or reinstall the CoolMasterNet by yourself. Any deficiency caused by your own re-installation may result in an electric shock or fire.
  • Page 4 CAUTION Do not allow children to play with the CoolMasterNet and supervise them not to get access to the appliance. CoolMasterNet is not to be used by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
  • Page 5 High temperature area or directly flamed point. Heating and/or fire can occur. f) Moist area, where there is exposure to water. If water enters the inside of the CoolMasterNet, it may cause electric shock and electrical components may fail.

  • Page 6: What's In The Box

    What’s in the box CoolMasterNet AC Power supply adapter 100V-240V 50/60hz to 12V Optional 1 RS232 DB9 1 USB-Mini USB 1 Ethernet Male to Female cable cable cable...
  • Page 7 Universal HVAC bridge for the integration of Home Automation / BMS and HVAC. CoolMasterNet 9/10 All Units All Off 21 L1.101 23 L1.102 25 L1.103 25 L7.101 MACADDR00001 192.168.0.1 L8 — HVAC Line 8 (USB Host) RS485 L4 — HVAC Line 4 ...
  • Page 8 Preconfigured CoolMasterNet Type label Configuration stickers for HVAC line L1 Daikin This label uniquely identifies the manufacturer’s configuration of CoolMasterNet. Mitsubishi Electric Located on the back of the enclosure. Panasonic (Sanyo) 9-24 , 350 INPUT: v DC L6 L7 OUTPUT:...
  • Page 9 How to connect CoolMasterNet to HVAC HVAC connectivity — on L1 HVAC Communication Terminals Connect to the communication terminals on the HVAC equipment: HVAC communication terminal’s names* Daikin (Max. 64 indoor units) Mitsubishi Electric (Max. 50 indoor units) Panasonic (Sanyo) (Max.
  • Page 10 How to connect CoolMasterNet to HVAC HVAC connectivity — on L7 HVAC Communication Terminals Connect to the communication terminals on the HVAC: HVAC Terminal HVAC outdoor only InterA (Max. 128 indoor units) InterB Gree (Max. 16 indoor units) Samsung (Max. 64 indoor units) Midea (Max.
  • Page 11 How to connect CoolMasterNet to HVAC HVAC connectivity — on L8 HVAC Communication Terminals Connect to the communication terminals on the HVAC equipment: HVAC communication terminal’s names* Fujitsu (Max. 128 indoor units) * For Heat Recovery systems the connection is at outdoor unit only.
  • Page 12 Universal HVAC bridge for the integration of Home Automation / BMS and HVAC. CoolMasterNet installation complete To download the latest firmware www.coolautomation.com/support/coolmasternet Fimware update FAQ www.coolautomation.com/support/faq/coolmasternet CoolMasterNet Unit screen After successful installation, units screen will show all the detected indoor units and their statuses.
  • Page 13 How to connect CoolMasterNet to Home Automation and BMS systems Home Automation, BMS & CoolRemote Router RS232 RS485 Ethernet Ethernet Internet Home Automation / BMS CoolRemote App...

  • Page 14: Power Supply

    How to connect CoolMasterNet to power supply Power supply Option A Option B AC Power supply adapter (Included in the Box) Direct DC power supply 12V-24V DC 12V DC 100V-240V AC Direct DC power supply from 50/60hz local electrical panel...
  • Page 15 9-24 , 350 INPUT: v DC L6 L7 Scan the QR code from the type label OUTPUT:  Go to: To auto fill-in all the CoolMasterNet details for 2015 2015  CoolMasterNet https://coolremote.net/register Universal HVAC Bridge ® CoolRemote App. 9-24...

  • Page 16: Mounting On A Din Rail

    CoolMasterNet Universal HVAC Bridge L1 L2 000000000001 CoolRemote How to mount Mounting on a DIN rail AABBCCDDEE 2015 9-24 , 350 INPUT: v DC L6 L7 OUTPUT: Slide under the mount feet  CoolMasterNet Universal HVAC Brid ® Secure the rail in place...

  • Page 17: Mounting On Wall

    CoolMasterNet ® Universal HVAC Bridge AABBCCDDEE L1 L2 CoolRemote 156mm OUTPUT: For mounting the CoolMasterNet with wall screws, please see attached template with 1:1 dimensions. 90mm 1:1 scale mounting template for wall screws 21 mm 38.5 mm 79 mm Distance between two mounting holes...
  • Page 18 Changing the dip switches , while DC voltage is present on L1, may damage the CoolMasterNet. For Daikin/Mitsubishi Electric Non—VRV/VRF equipment, DC voltage supply by CoolMasterNet might be required for proper operation. Make sure CoolMasterNet is disconnected from power and HVAC line.
  • Page 19 Appendix: Dip switches setup for VRV/VRF HVAC system on L1 HVAC systems setup on L1 Daikin Mitsubishi Electric Toshiba Panasonic (Sanyo) Hitachi...
  • Page 20 Appendix: Dip switches setup for VRV/VRF HVAC system on L7 HVAC systems setup on L7 Mitsubishi Heavy Samsung Midea Kentatsu Gree Trane...
  • Page 21 Appendix: GPIOs application All On, all Off operation by external signal All On All Off...
