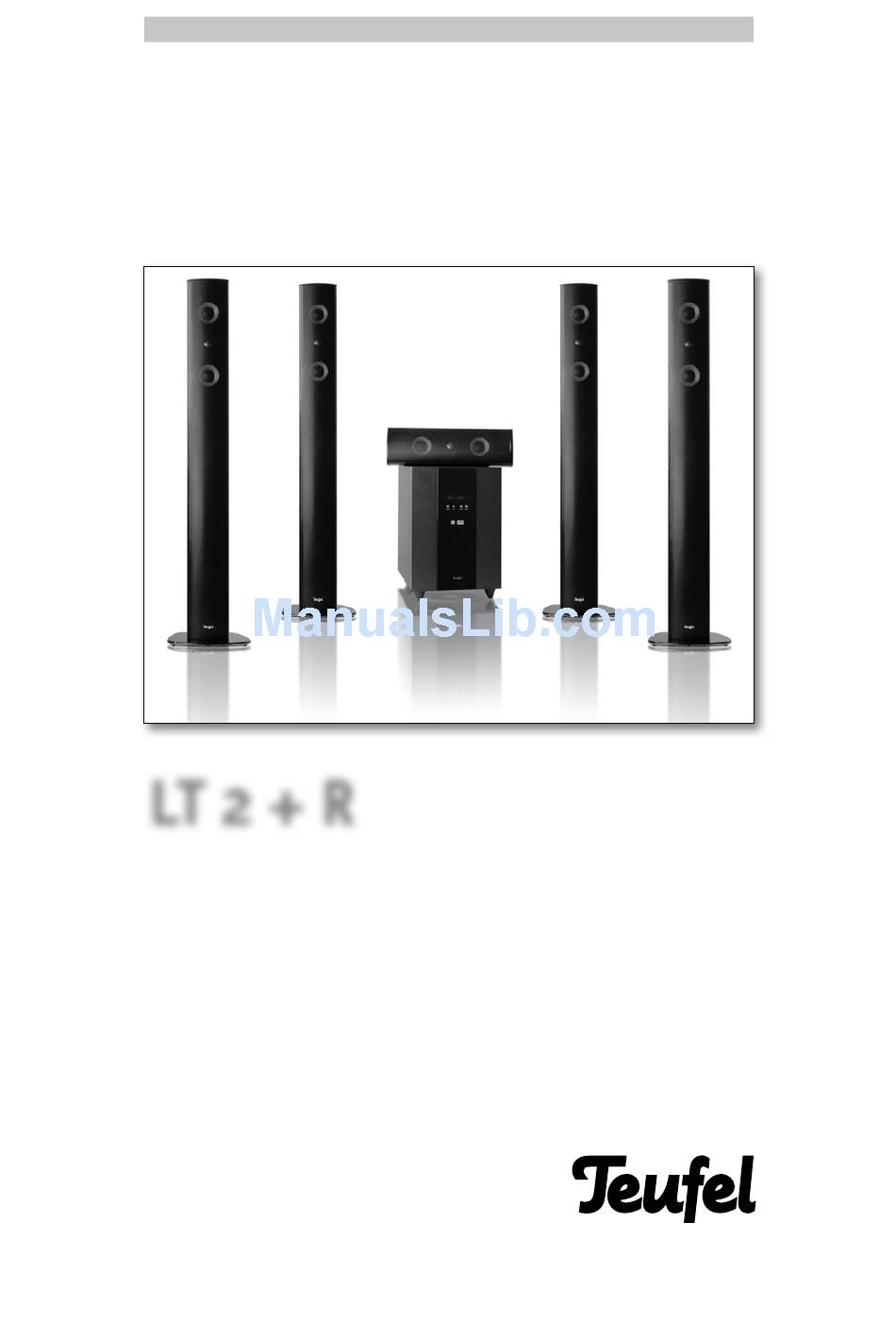

- Page 1 Technical specifications and operating instructions LT 2 + R 5.1 channel home cinema set including fully active subwoofer with an integrated Dolby Digital/DTS receiver...
- Page 2 © Lautsprecher Teufel GmbH tributor. If the Teufel product is sold on privately, Version 1.3 the warranty may be transferred to the purchaser, March 2009 providing that the original proof of purchase is also transferred.
-
Page 3: Table Of Contents
Glossary ..............Page 24 ML Version 1.3 · LT 2 + R... -
Page 4: Safety Information
(e.g. amplifiers). Sources of heat, such as fan heaters or candles, Information on spare parts: Lautsprecher Teufel will provide followed the operating should not be placed on the speakers. -
Page 5: Introduction
5.1 home cinema set. You can found connection details on pages 14 and 15 of these instructions. We recommend the LT 2 + R for providing sound in rooms up to 35 m in size. -
Page 6: Unpacking · Contents
Spikes, soft requirements. You can, however, order any re- quired accessories directly from us. You will find the optional accessories for the LT 2 + R Dolby Digital/DTS subwoofer on the following Base for L220C page. -
Page 7: Accessories (Optional)
Accessories (optional) Optional accessories for the LT 2 + R Here is an overview of the relevant accessories available for your Teufel home cinema set. Teufel Y adapter cable Teufel casters If you want to connect These black casters, cha- an appliance (e.g. -
Page 8: Setting Up The 5.1 Configuration
Let your ears (and eyes) decide! Front Centre Front We recommend placing the subwoofer in the front grey area. · LT 2 + R... - Page 9 Front Centre Front We recommend placing the subwoofer in the front grey area. We recommend placing Rear Rear the rear speakers in the rear grey area. Select position area A or B. B Rear Rear · LT 2 + R...
-
Page 10: Subwoofer Front/Display
“AC3” = Dolby Digital. This display is in- terrupted if you make a change, e.g. to the volu- me. As soon as this activity is ended, the display indicates the originally selected signal source again. · LT 2 + R... -
Page 11: Subwoofer Rear
“On” . and subwoofers in line with the Electrical and Electronic Appli- ance Act. Attention: The separating equipment of this equipment is the mains plug, this separating equipment must be usable without difficulties. · LT 2 + R... -
Page 12: Remote Control
LISTEN MODE Night Mode Listen Mode Reset RESET S.Delay S DELAY Centre/ – – Woofer Volume + CENTER WOOFER Treble Balance Bass – – Balance »L« »R« Volume – – – Rear »L« »R« REAR-L REAR-R · LT 2 + R... -
Page 13: Operating Elements: Remote Control
Option to set the delay on the centre speaker. Only works with Dolby Digital/DTS.ĕ page 19 Test Initialises the test sound to equalise the speakers. ĕ page 18 · LT 2 + R... -
Page 14: Connection
Definition AV Pack have sat receiver, a digital output PlayStation®2 & 3, L2200/6SWR Xbox 360 *. . . DIGITAL INPUT ® oPtiCAl out oPtiCAl Digital connection cable (optical) CoAXiAl out CoAXiAl Digital connection cable (coaxial) · LT 2 + R... -
Page 15: Signal Sources With Analogue Outputs
ANALOGUE SIGNAL SOURCE L2200/6SWR ANALOG INPUT liNE out ANALOG INPUT When connecting the appliances, please note the relevant information in the handbooks for the compon- ents used. AuDio out Videorecorder ANALOG INPUT AuDio out · LT 2 + R... -
Page 16: Aerial · Speakers
FRoNt SPEAKER CENtRE FRoNt SPEAKER – – – lEFt Right SPEAKER OUTPUT FL C RL FR RR – – REAR SPEAKER REAR SPEAKER – – Right lEFt · LT 2 + R... -
Page 17: Start-Up
30 degrees. 1) Do not combine new and old batteries 2) Do not use different types of batteries ĕThe remote control’s functions are explained 3) Observe the polarity – see battery on pages 12/13. compartment · LT 2 + R... -
Page 18: Setting Up The Surround System
For perfect equalisation of the speakers we recommend using a volume level measuring device, as available in the Teufel shop. This device Balance is a purchase that will last a lifetime and allows considerably more precise equalisation than the ear. - Page 19 For the example given above, this results in: 6 ms + 15 ms constant = 21 ms delay time. As the L2200/6SWR permits set- tings in steps of 5, select the next possible value, 20 ms. · LT 2 + R...
-
Page 20: Playback
Room. The switch also works in tuner mode. The changes to the listen modes are, however, not shown on Balance the display. Balance – – – – – – – – REAR-L REAR-R REAR-L REAR-R · LT 2 + R... -
Page 21: Radio Programmes
CHANNEL CENTER WOOFER ved stations. – – – REAR-L REAR-R Balance SCAN STEREO/MONO – – – C DELAY TEST – – NIGHT MODE LISTEN MODE REAR-L REAR-R RESET S DELAY – – CENTER WOOFER · LT 2 + R Balance... -
Page 22: Frequently Asked Questions
If this is the case, please following: check whether the blue “Standby” LED on the Teufel subwoofer lights up after activating the 1. The subwoofer is connected to a different appliance by pressing the “Power” tip switch on power circuit from the rest of the equip- the rear;... -
Page 23: Frequently Asked Questions · Cleaning
To make sure you are able to enjoy your product the decoder’s remote control” . from Lautsprecher Teufel for a long time, please As there are no fundamental regulations on the note the following tips: distribution of frequencies, each manufacturer Do not expose the casing to direct sunlight. -
Page 24: Glossary
Cinema Set fer is in another location, the “180°” setting can balance out the All Teufel speaker systems that are supplied with three direct reduced bass playback. Set the phase controller appropriately front speakers and dipole effect speakers are also called a Ci- to get the strongest bass playback.
