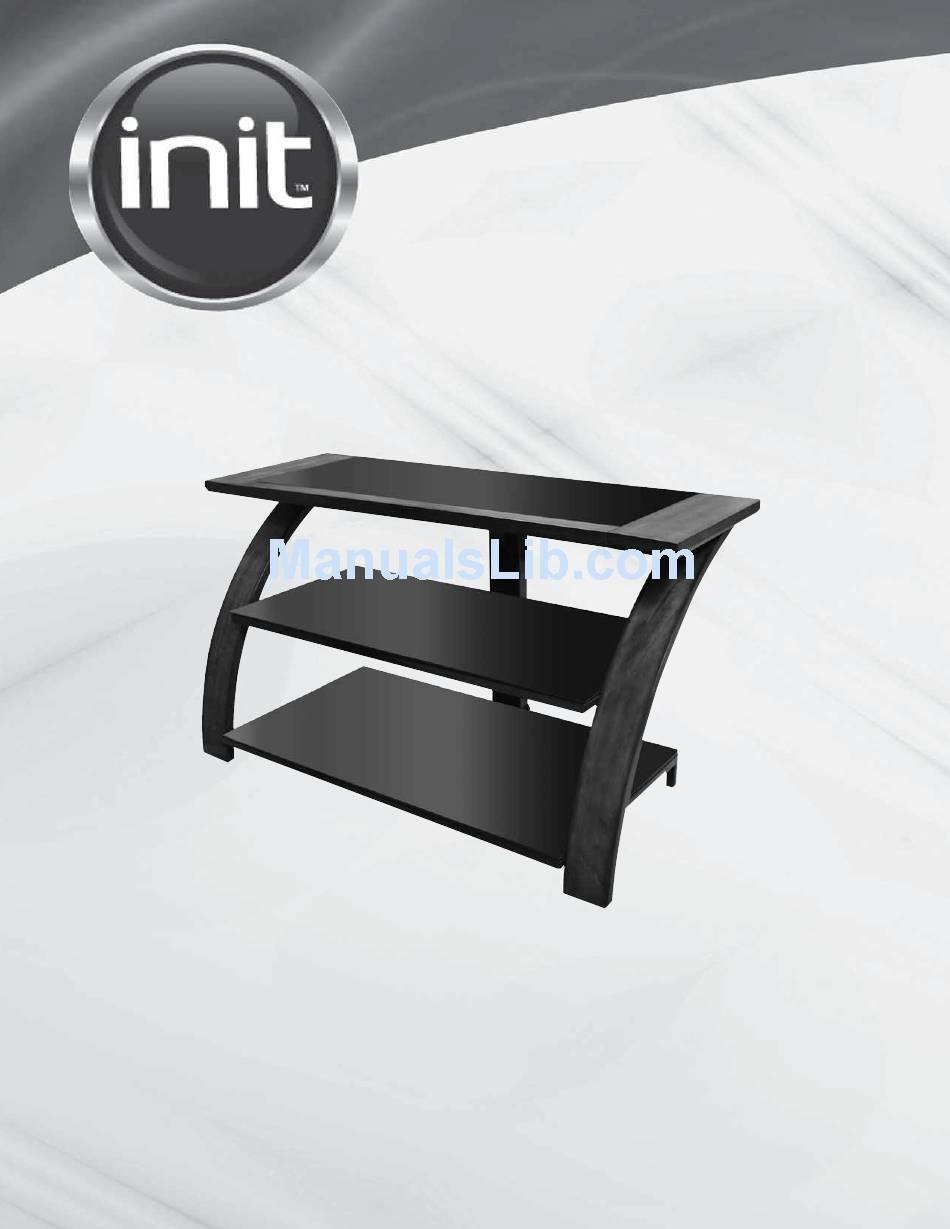

ASSEMBLY
IN S T RU C TI ON S
NT-WG1144

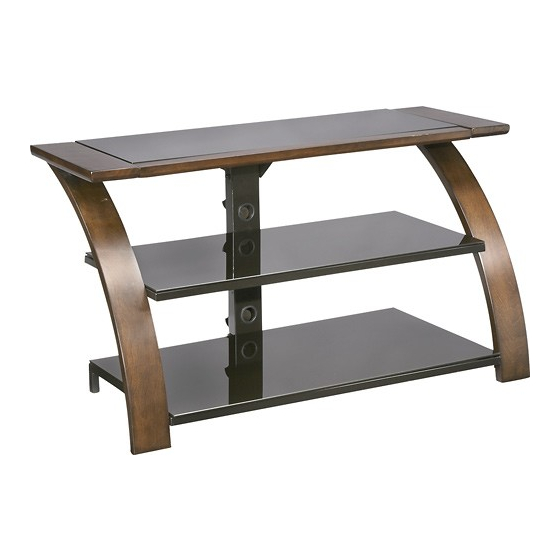

Wood and Glass TV Stand
specifications...........................................2
Tools needed ...........................................3
Parts ............................................................3
Hardware...................................................4
Assembly instructions ..........................5
Before using your new product, please read these instructions to prevent any damage.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Init NT-WG1144
Summary of Contents for Init NT-WG1144
-
Page 1: Table Of Contents
ASSEMBLY IN S T RU C TI ON S NT-WG1144 Wood and Glass TV Stand Safety information and specifications...........2 Tools needed ...........3 Parts ............3 Hardware...........4 Assembly instructions ......5 Before using your new product, please read these instructions to prevent any damage. -
Page 2: Safety Information And Specifications
Do not use the glass shelves to lift the stand. See instructions for more details. 34.88 × 9.5 × 18.5" (88.6 × 24.1 × 47 cm) Model #: NT-WG1144 Distributed by Best Buy Purchasing, LLC Manufacturer: Whalen Furniture Mfg. Inc. -
Page 3: Tools Needed
Tools needed No. 2 Phillips screwdriver Drill Parts Package contents: parts Note: You may receive extra hardware. A Top shelf frame (1) B Middle shelf frame (1) C Bottom shelf frame (1) F Right leg (1) E Left leg (1) D Rear support (1) G Top shelf (1) H Middle shelf (1) -
Page 4: Hardware
Video Instruction Guides: Go to http://init.showuhow.com to view step-by-step instructional videos for assembling and installing your product. Enter the following product number on the ShowUhow homepage - INTANY00004. -
Page 5: Assembly Instructions
Assembly Step 1 instructions Attach the shelf frames (A, B, C) to the rear support (D). Make sure the inside corner plates on the shelf frames will face up after assembly. Corner plates You’ll need: M (8) N (2) P (10) S (1) Q (10) Still need help? Call 800-573-2860... - Page 6 Step 2 Attach the left and right legs (E, F) to the shelf frames. Make sure that the tops are flush with the wood front rail on the top shelf frame (A). You’ll need: M (6) N (4) P (10) Q (10) S (1) Still need help? Call 800-573-2860...
- Page 7 Step 3 Attach the left and right brackets (J, K) to connect the middle rails of the top shelf frame (A) with the rear support (D). You’ll need: J (1) K (1) M (6) P (6) Q (6) S (1) Still need help? Call 800-573-2860...
- Page 8 Step 4 Attach the cable clips (R) onto the rear support (D). TIP: You can use these cable clips to help keep your entertainment center’s cables organized. You’ll need: M (4) R (2) S (1) Still need help? Call 800-573-2860...
- Page 9 Step 5 Adjust the floor levelers on the bottom of both legs to level the TV stand. Note: The floor levelers are pre-attached on the bottom of each leg. Still need help? Call 800-573-2860...
- Page 10 Step 6 Attach the suction cups (L) firmly into the top holes and inside corner plates on the shelf frames (A, B, C). Install the glass shelves (G, H, I) with the black side of the glass down. Tip: If a suction cup resists insertion, try pressing down on the middle of the cup with the hex wrench while twisting it clockwise into the hole, as if you were screwing it in.
- Page 11 Step 7 Position the assembled stand against a wall where you plan to use it, then follow the instructions printed on the bag containing the tipping restraint hardware kit ( ) to attach the restraint hardware to the wall and the stand. Note: You need a 3/8"...
- Page 12 7601 Penn Ave. South, Richfield, MN 55423 U.S.A. © 2013 BBY Solutions, Inc., All Rights Reserved. Init is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners.
