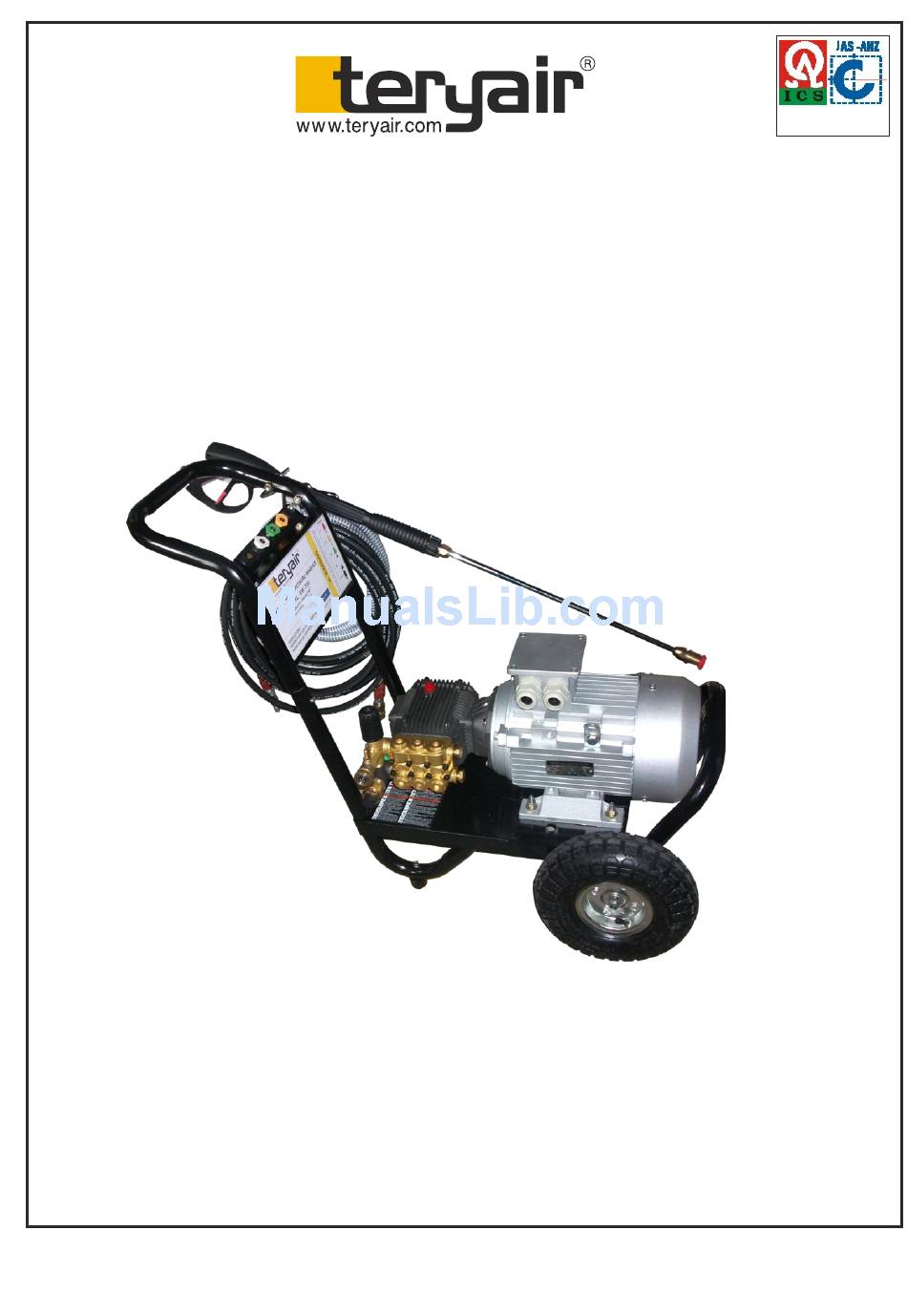

- Page 1 ISO 9001 : 2008 RQ91/3979 Electric Heavy Duty cold water High – Pressure Washer EW200 Operation & Maintenance Guide Sheet 1 of 12 FF-MM-155-REV-1...
- Page 2 Electric Heavy Duty cold water High – Pressure Washer EW200 Operation & Maintenance Guide CONNECT THE ELECTRICAL MOTOR CABLE AUCTION: Check the electrical supply voltage and frequency (HZ) Correspond to those specified on the appliances data plated. The appliances should only be connected to a mains power supply equipped with an adequate earth connection.
- Page 3 Electric Heavy Duty cold water High – Pressure Washer EW200 Operation & Maintenance Guide GENERAL SAFETY RULES WARNING – water at high pressure can be dangerous and can cause damage to persons or property if the operator is careless. Never allow anyone to operate this equipment unless they are thoroughly reliable, and familiar with the safety precautions.
-
Page 4: Shutting Down
Electric Heavy Duty cold water High – Pressure Washer EW200 Operation & Maintenance Guide ADJUSTING THE PRESSURE The pressure setting is preset at the factory. To lower the pressure. 1. Adjust the pressure reulator on the pump. Turn the pressure regulator knob counter clockwise to lower pressure. - Page 5 Electric Heavy Duty cold water High – Pressure Washer EW200 Operation & Maintenance Guide ENVIRONMENT PROTECTION One of the most damaging sources of pollution is oil. Do not throw away used oil with your domestic rubbish or down drains and sinks.
- Page 6 Electric Heavy Duty cold water High – Pressure Washer EW200 Operation & Maintenance Guide CHECKING THE PUMP OIL LEVEL Look at the sight glass on the pump to check the oil level it should be at the 1/2 position of the sight glass If required, remove the oil filler cap and top up with oil.
-
Page 7: Connect Water Source
Electric Heavy Duty cold water High – Pressure Washer EW200 Operation & Maintenance Guide ASSEMBLE THE LANCE 1. Connect the spray wand to the lance and tighten securely. THE HIGH PRESSURE HOSE Connect the hose to the gun 1. Slide the connector on the hose backwards. - Page 8 Operation & Maintenance Guide INTENDED USE The Teryair electric Driven High Pressure washer offers you high performance with compact design. This compact design enable the machine to be agile within inconvenient places, even at staircases and the high performance gives you the opportunity to solve an array of cleaning tasks.
-
Page 9: Techincal Data
Electric Heavy Duty cold water High – Pressure Washer EW200 Operation & Maintenance Guide TECHINCAL DATA Model Name EW200-220V EW200-440V Electric Motor (kW) Three Phase induction motor Voltage (V) 220 Volts 440 Volts Revolution (rpm) 1750 rpm BAR-220 PSI-3000 Max. pressure L/min-16.5 GPM-4.2... - Page 10 Troubleshooting If the following troubleshooting for qualified personnel only. if it dose not solve your problems, please contact dealer any the help . Sheet 10 of 12 FF-MM-155-REV-1...
-
Page 11: Exploded View
Electric Heavy Duty cold water High – Pressure Washer EW200 Exploded View Sheet 11 of 12 FF-MM-155-REV-1... - Page 12 Electric Heavy Duty cold water High – Pressure Washer EW200 Bill Of Material Illus. No. Part No. Description Qty / Tool 6379811 Trolley Complete Consist of : 6373022 Side Hanger 6419130 Electric Motor (220V- Three Ph) 6419131 Electric Motor (440V- Three Ph)
