Quick installation Instructions

J10
J7
VIN
VOUT
J9
J1
DCD-USB-200
J8
J6
D1

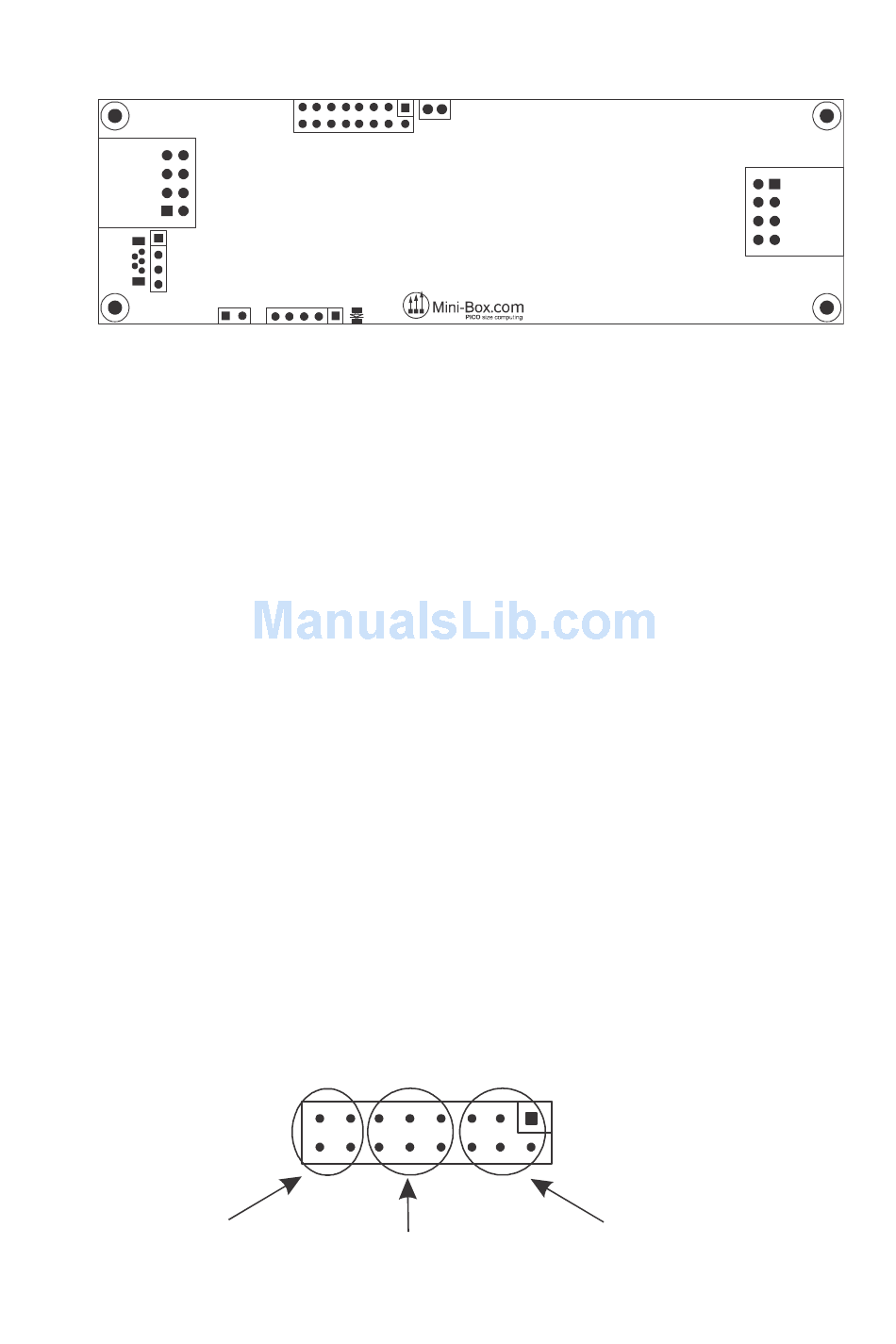

Fig 1.0, DCDC-USB-200 layout
J7: Configuration jumpers for Voltage, Mode and Timings.
Left mini-FIT connector:
Power input, V(in) – (Red), GND, Ignition *(Yellow)
Right mini-FIT connector: Power output V(out), GND.
J8 : Soft ON/OFF control for motherboard. Connect this to motherboard ON/OFF
pins if you want the motherboard to be controlled by the unit.
J9: mini-USB type B jack. Connect this to a PC to access advanced settings.
J1: USB header for internal connection.
D1 STATE: State LED
J10 : Provides unregulated switched input, to be used in automotive modes to
power various peripherals.

Basic Operation

For basic operation, you would need to connect a power source to V(IN). V(IN) is
on the left side of the board, near the input fuse. Polarity is marked on the PCB
(GND, VIN and Ignition). On the cable harness, GND is black, V(in) is red and
Ignition is white. NOTE: Ignition is not needed for basic operation.
Without any further settings, V(out) will generate 12V regulated. V(out) is located
on the right side of the PCB, near the USB connector. On the cable harness,
Yellow is positive and GND is negative.

Configuration jumpers

The configuration header J7 (marked CONFIG) is the most important header in
this board. It is divided in 3 sections:
CONFIG
Output voltage
Timing Schemes
Main mode
