1
Chapter

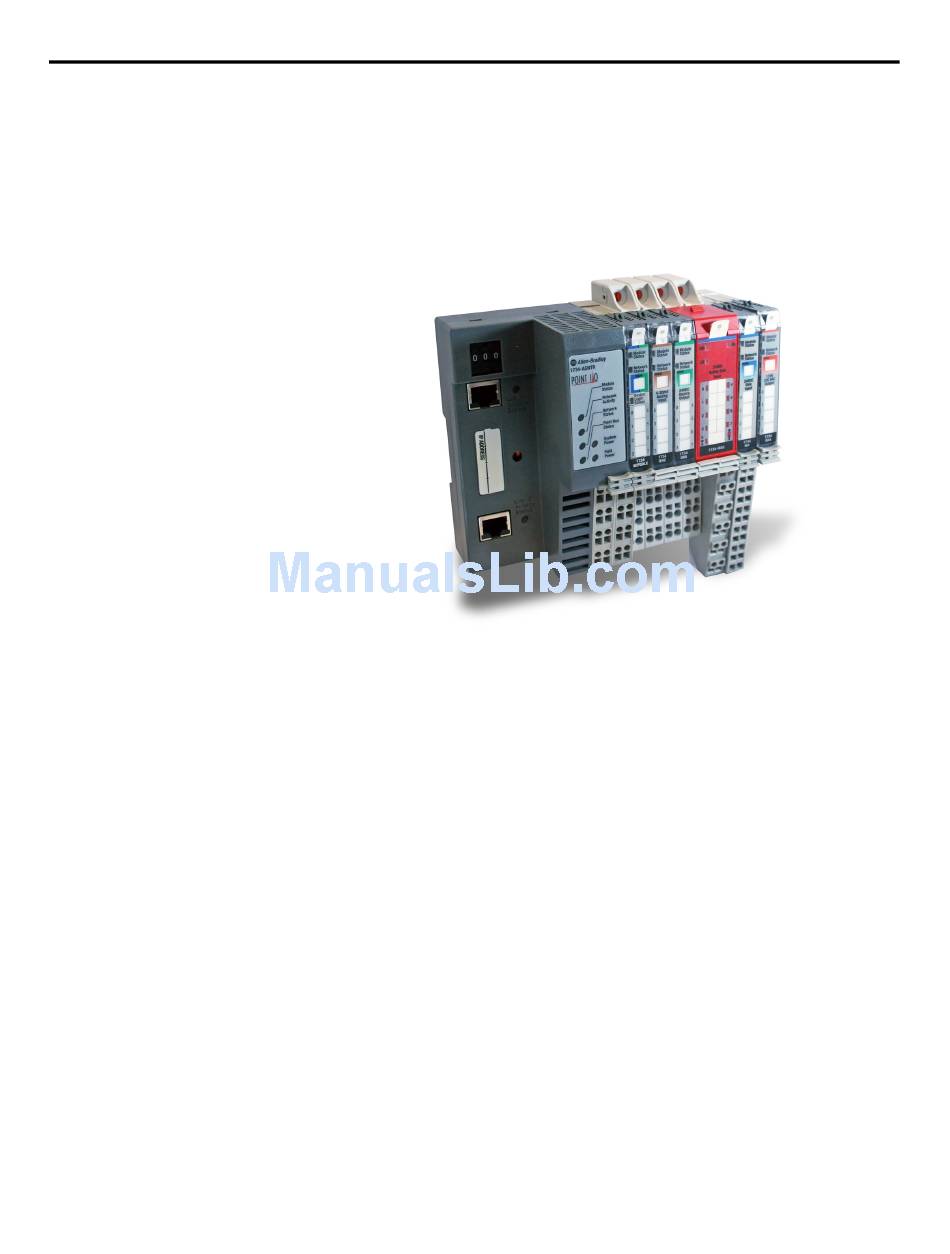

POINT I/O Family
Overview
The POINT I/O family has modular I/O modules that are ideal for
applications where flexibility and low-cost of ownership are key for successful
control system design and operation. As a key element in the Rockwell
Automation Integrated Architecture, its comprehensive diagnostics and
configurable features allow the product to be easily applied to any automation
system and reduce engineering costs through standardization. It can be used in
remote device panels, local control panels, and can be accessed from many
locations including the Internet. This product has just-what-you-need
granularity in 1 to 8 points to reduce system cost and size.
Available features include Channel Level Diagnostics for quick
troubleshooting, multiple termination options and flexibility to save money,
cabinet space and commissioning/troubleshooting time, the ability to
mix/match Safety I/O on the same bus, and available DeviceLogix for local
control, fast response time. Self-Configuring modules are also available to
reduce/simplify your design and your inventory.
5Publication 1734-SG001F-EN-P - September 2015
Advertisement
Related Manuals for Allen-Bradley 1734-8CFG
Summary of Contents for Allen-Bradley 1734-8CFG
- Page 1 Chapter POINT I/O Family Overview The POINT I/O family has modular I/O modules that are ideal for applications where flexibility and low-cost of ownership are key for successful control system design and operation. As a key element in the Rockwell Automation Integrated Architecture, its comprehensive diagnostics and configurable features allow the product to be easily applied to any automation system and reduce engineering costs through standardization.
- Page 2 POINT I/O Family The POINT I/O System 45216 45215 1734-TOP or 1734-TOPS One-piece Terminal Base with Screw or Spring Clamp The base (A) mounts onto the DIN rail and provides the backplane. The POINT I/O module (B) snaps into the base. The removable terminal block (C) also snaps into the base and provides the wiring and terminations for field-side connections, as well as system power for the backplane.
- Page 3 POINT I/O Family POINT I/O Features Adapters • ControlNet • DeviceNet • EtherNet I/P • Profibus I/O Types • Digital • Analog • AC/DC • Thermocouple • RTD • Specialty Module Density 1…8 points Specialty Modules • Encoder • 1 MHz Counter In •...
- Page 4 POINT I/O Family Specify a POINT I/O System Follow these steps as you specify your POINT I/O system: Step Remember to select • the appropriate interface module 1 Select a communication interface • a communication interface that Choose the interface module for your meets the power requirements of operating system.
- Page 5 None (open-style) Mounting type DIN-rail Certifications (when product is marked) CE, C-Tick, c-UL-us Self-Configurable Modules 1734 DC Configurable Input/Output Modules Technical Specifications 1734-8CFG 1734-8CFGDLX (with DeviceLogix Number of inputs/iutputs Voltage, on-state input, nom Voltage, on-state input, min 11V DC Voltage, on-state input, max Current, on-state input, min 2.0 mA...
- Page 6 Select POINT I/O Modules Self-Configurable Modules Environmental Specifications 1734 DC Configurable Input/Output Modules Environmental Specifications Attribute Value Operating temperature -20…55 °C (-4…131 °F) Nonoperating temperature -40…85 °C (-40…185 °F) Relative humidity 5…95% noncondensing Operating shock 30 g Nonoperating shock 50 g Vibration 5 g at 10…500 Hz Enclosure type rating...
-
Page 7: Mounting Requirements
Chapter Mounting Requirements Step 5 - Select: • appropriate number of DIN rails based on the number of modules and the physical requirements Power Supply Distance Rating ........... page 63 Mount the POINT I/O System..........page 64 The producer/consumer model multicasts messages. This means that multiple nodes can consume the same data at the same time from a single device. - Page 8 Mounting Requirements Use the following table to plan the maximum size layout of your POINT I/O system. Maximum Size Layout POINTBus current No. of I/O Modules No. of I/O Modules No. of I/O Module with 24V DC with Expansion Connections, max Backplane Current Power Supplies, (@ 75 mA each), max...
- Page 9 Mounting Requirements Approximate Mounting Dimensions POINT I/O with 1734-PDN Mounting Dimensions Allow a 25.4 mm (1.0 in) air gap all around 133.4 mm (5.25 in) 1734-PDN (H x W x L) 1734-TB or 1734-TBS with I/O (H x W x L) 7.62 x 25.4 x 133.4 mm 65 x 12 x 133.4 mm (3.00 x 1.00 x 5.25 in)
- Page 10 Mounting Requirements POINT I/O with 1734-ADN(X), 1734-ACNR, 1734-AENT, 1734-APB Mounting Dimensions Allow a 25.4 mm (1.0 in) air gap all around 133.4 mm (5.25 in) 1734-ADN (H x W x L) 1734-TB or 1734-TBS with I/O (H x W x L) 7.62 x 54.9 x 133.4 mm 65 x 12 x 133.4 mm (3.00 x 2.16 x 5.25 in)
- Page 11 Related Documentation Cat. No. Description Bases 1734-TB, Wiring Base Assembly with 8 Point Cage-Clamp Removable Terminal Block Installation 1734-TBS Instructions, publication 1734-IN511 1734-TBS, Wiring Base Assembly with 12 Point Cage-Clamp Removable Terminal Block Installation 1734-TB3S, Instructions, publication 1734-IN013 1734-RTBS, 1734-RTB3S 1734-TOP, POINT I/O One-piece Terminal Bases Installation Instructions, publication 1734-IN028...
