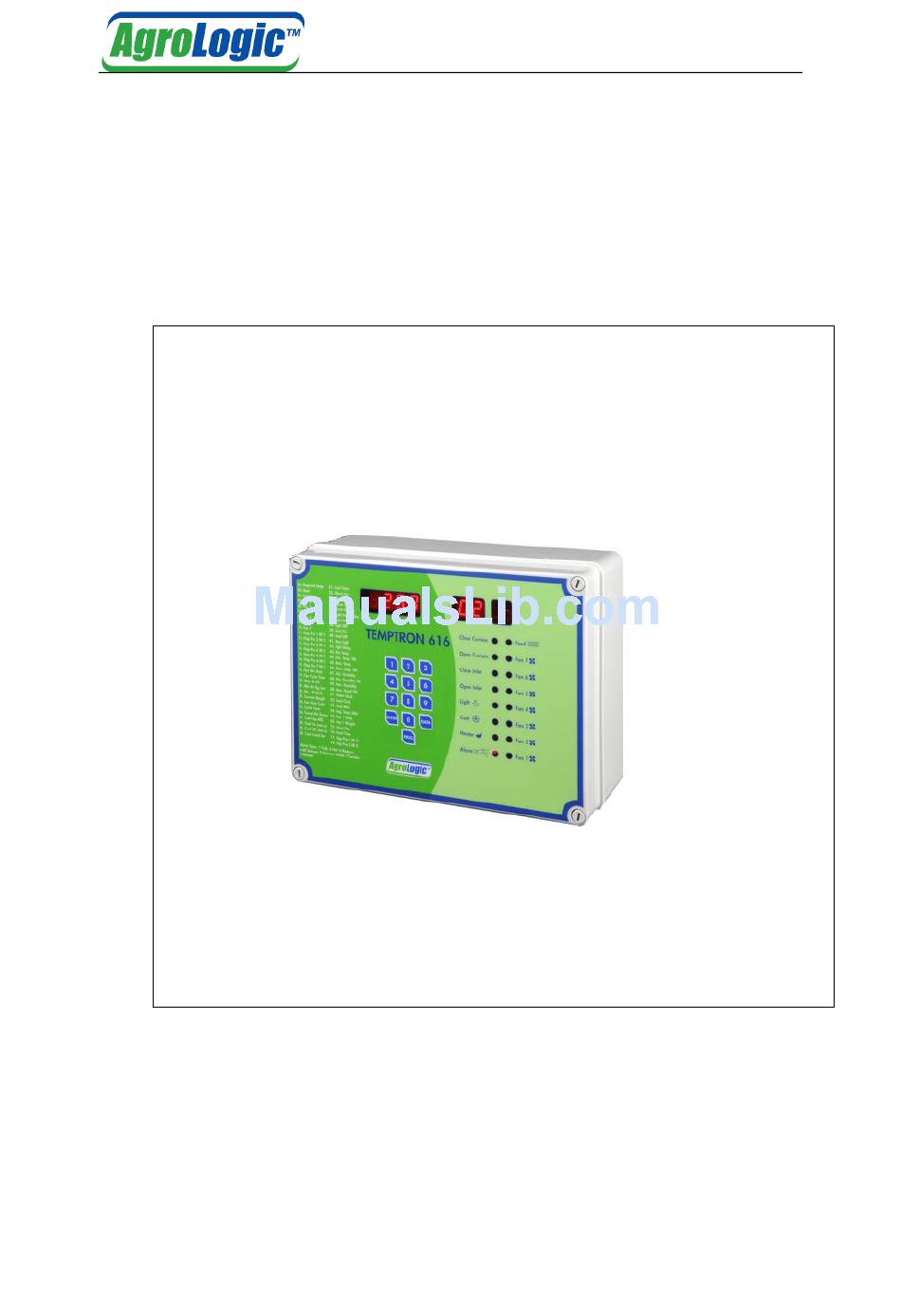

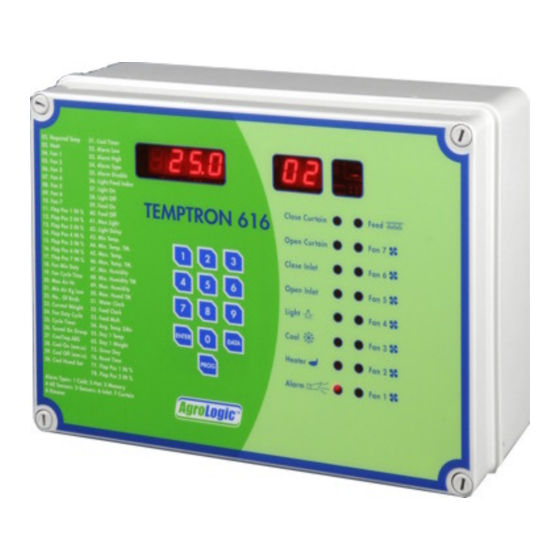

- Page 1 Temptron 616 User's Manual Temptron 616 11/12/2008 Version2608 info@agrologic.com 1 of Page...
-
Page 2: Table Of Contents
The Temptron 616 has a built in automatic temperature reduction table and automatic weight increase table for ventilation The first fan group is working as minimum ventilation. It is optional to connect the Temptron 616 to a PC for central management with the help of the WinChick software package. ____________________________________________... -
Page 3: Installation
Connect a 220V cable to the unit. Close the panel with the two screws. OPERATION The Temptron 616 will display the average temperature of the connected temperature Sensors. It is possible to display each sensor separately. Turn on power. 1. Each time power is connected to the unit Agro Lo will appear on the display. -
Page 4: Reading Set Point
To display Sensor 2, press on button 2 . The temperature of sensor 2 will be displayed. READING SET POINT It is possible to read all the information on the Temptron 616 display. The right display indicates the function number. The left display shows the set point for each function. -
Page 5: Lock Code
Temptron 616 User's Manual Lock Code It is possible to enter a 4-digit code, which will lock the Temptron 616 to prevent unauthorized personnel form making changes in the unit. It is possible to see all the information in the unit, but not possible to make any changes. -
Page 6: Fan Set Points
Temptron 616 User's Manual Fan Set points 04. Fan 1 Fan group 1 is used as the minimum ventilation fan group. Fan 1 set point is the temperature differential above the required temperature at which time fan 1 will run nonstop. Fan group 1 is working as minimum ventilation as long as the measured temperature is less than the required temperature plus fan 1 set point. -
Page 7: Inlet/Curtain Position
Temptron 616 User's Manual Inlet/curtain Position 11. Flap Position 1 % Enter here the in percentage that the inlet / curtain will open each time the corresponding fan group comes into operation. Fan group 1 = Position 1 12. Flap Position 2 % Enter here the in percentage that the inlet / curtain will open each time the corresponding fan group comes into operation. - Page 8 Temptron 616 User's Manual 20. Maximum Air Per Hour. Enter here the total amount of cubic air per hour that minimum ventilation fan group 1 can supply. Take the total amount and divide it by 1000. Example: If fan group 1 can supply 20,000 cubic meters of air per minute then enter the value 20.
- Page 9 Temptron 616 User's Manual Using the values in the previous table, the ventilation will run as follows. Fan group1 will be used to supply the minimum ventilation. As long as the house temperature is less then 26.5 degrees (function 02 plus function 04) the unit will run in the minimum ventilation mode.
-
Page 10: Cooling System
Temptron 616 User's Manual Cooling System 27. Cool Temp.ABS Enter here the temperature that when reached in the house the cooling system will start to run in its cycle mode as setup in functions 28 and 29. This temperature is set as an absolute temperature. -
Page 11: Light And Feed Index
It is possible to program up to 8 on off programs for the light and feed systems over a 24-hour period. If your Temptron 616 is equipped with a built in light dimmer it is possible to create dust dawn programs up to 8 times over a 24 hour period. See hidden function number 85 for built in dimmer setup. - Page 12 Temptron 616 User's Manual Light Off Time (function 38) = 0100 In this example the lights will go on at 06:00 and off at 20:00 (index 1) At 22:00 the lights will come back on and then go off at 01:00.
-
Page 13: 24-Hour Data
A display of the time that the maximum humidity occurred in the house. 51.Water Clock If a water measuring clock has been connected to the Temptron 616 then in this function will be displayed the amount of water consumed over a 24 hour period. -
Page 14: Temperature Reduction Table
Feed multiply is the total amount for feed in kilograms that is duped from the feed auger over a one minute time period. If a dry contact has been connected to the Temptron 616 from the feed auger contactor and a Feed multiply is entered then the Temptron 616 will convert the... -
Page 15: Weight Increase Table
Temptron 616 User's Manual Each day the room temperature will be reduced by 0.3 C. At day 7 - the room temperature will be 29 C. Group 2-3 days reducing of 1.5 C. Each day the room temperature will be reduced by 0.5 C. - Page 16 Day 1 Weight. 76. Reset Time The Temptron 616 collects all its information on a 24 hours basis. It is possible to set the reset time. The grow day also changes after this time is passed. All information, temperature, humidity, water count and feed consumption will reset at this time.
-
Page 17: Hidden Functions
Temptron 616 User's Manual 77. Flap 1 Position% A display of the current position of the inlet in percent. 78. Flap 2 Position% A display of the current position of the curtain in percent. Hidden functions. Hidden functions are functions that are normally set up once and are not used on a daily basis. - Page 18 Temptron 616 User's Manual 83.Net Name It is possible to connect the Temptron 616 to a PC computer with the help of the "ChickPro" software package. It is possible to manage up 99 Temptron 607 units. Each unit needs a net name.
-
Page 19: Flap Calibration
Temptron 616 User's Manual Flap Calibration Flap 1 Calibration (inlet) It will be necessary to calibrate the inlets / curtains before the start of each flock. A. Go to the time function (code 01) B. Push on PROG C. Enter 4441 and press "Enter". -
Page 20: Trouble-Shooting
Temptron 616 User's Manual TROUBLE-SHOOTING 1. If a temperature sensor or its cable is disconnected, the sensor reading will show Open. 2. If a temperature sensor or its cable is shorted, the sensor reading will show Short. 3. If all sensors are disconnected, the unit will show open as average and activate the alarm. -
Page 21: Diagram
Temptron 616 User's Manual Diagram info@agrologic.com 21 of Page...
