C8 Value
Meter uses LCD3 new version of communication protocol, compatible with
0
LCD1 and LCD3
Meter uses LCD1 and LCD2 old version communication protocol, it is not
1
compatible with LCD3
As data source for copying parameters, the meter transfers the new LCD3
2
parameter to other meters

C12 Controller Minimal Voltage Setting

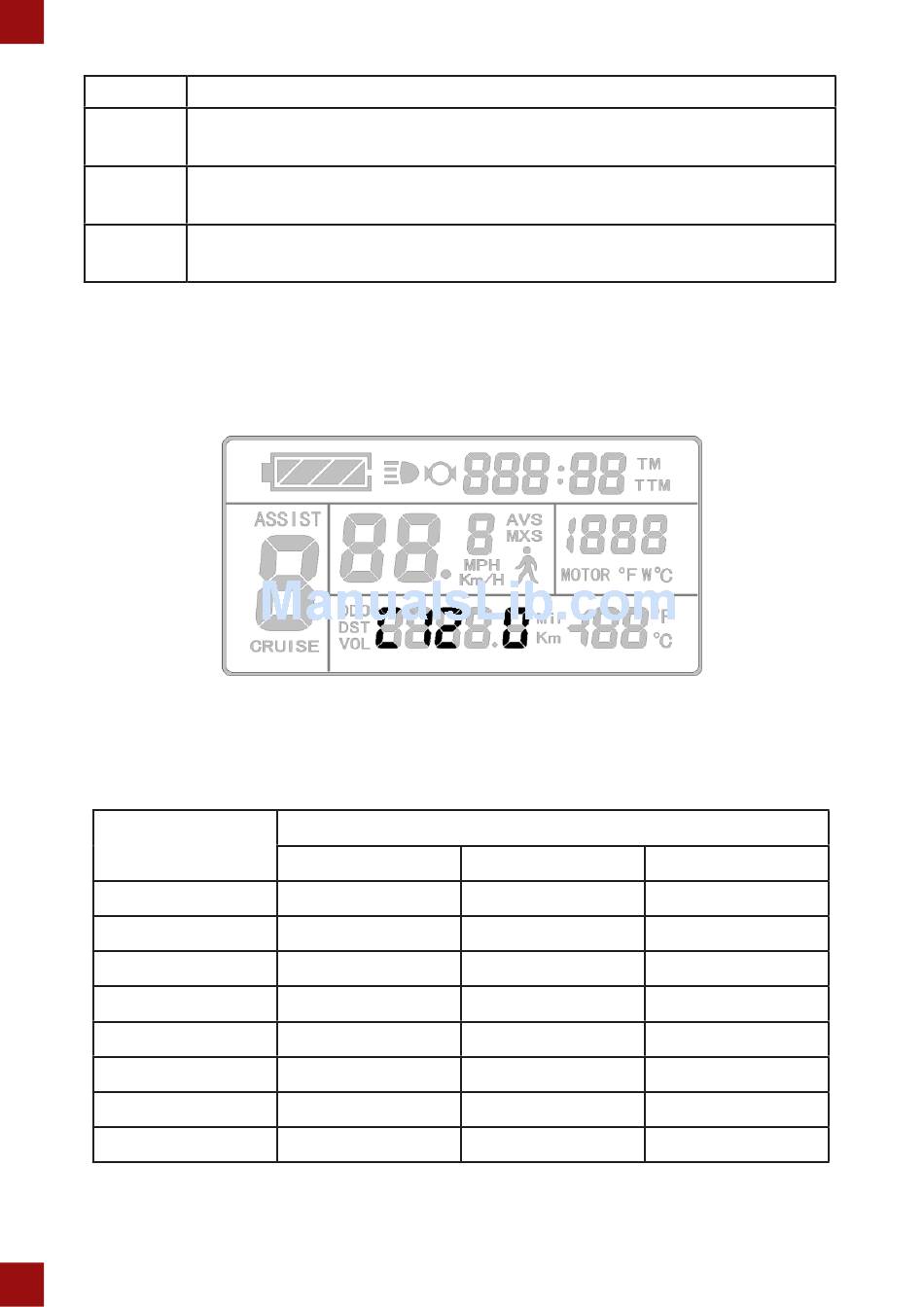

The C12 parameter setting will display on the meter after C11 settings. The KT-LCD3 will
display as follows:
C12 parameters are settings for the controller's minimum operating voltage (voltage
shortage value). Refer to the following table to calculate the minimum voltage.
C12 Value
0
1
2
3
4
5
6
7
28
Meter Attribute
C12 Display
24V Controller
Default Value-2V
Default Value-1.5V
Default Value-1V
Default Value-0.5V
Default Value=20V
Default Value+0.5V
Default Value+1V
Default Value+1.5V
Minimum Voltage (V)
36V Controller
Default Value-2V
Default Value-1.5V
Default Value-1V
Default Value-0.5V
Default Value=30V
Default Value+0.5V
Default Value+1V
Default Value+1.5V
48V Controller
Default Value-2V
Default Value-1.5V
Default Value-1V
Default Value-0.5V
Default Value=40V
Default Value+0.5V
Default Value+1V
Default Value+1.5V
