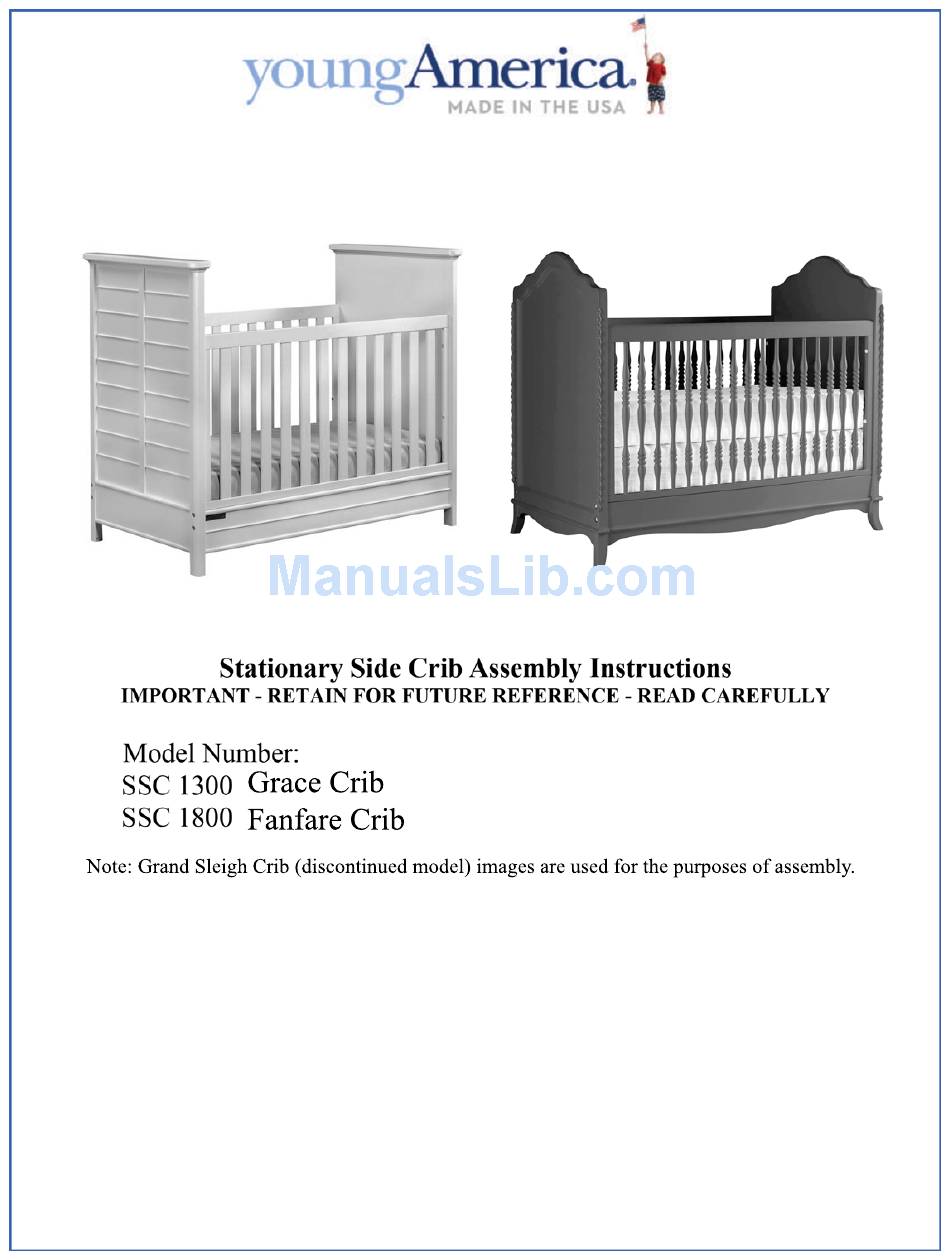

Young America SSC 1300 GRACE Assembly Instructions Manual

Stationary side crib
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSC 1300 GRACE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Young America SSC 1300 GRACE

Summary of Contents for Young America SSC 1300 GRACE

  • Page 3 Identifying the Parts The crib illustrations in these instructions are generic in nature. The crib you have purchased may not look like the ones illustrated; however, they all assemble in the same manner. Mattress Platform 2 Crib Ends 2 Base Rails 2 Crib Sides...
  • Page 4 Identifying the Hardware Identify the hardware included using the illustrations below 8 Connector Bolts 3 1/2” (1/4” x 20 thread) 4 Connector Bolts 2 3/8” (1/4” x 20 thread) 8 Connector Bolts 2” (1/4 x 20 thread) 4 Mattress Brackets with Bolts 2 Allen Wrenches 6 Locater Pins...
  • Page 5 Crib Assembly NOTE: Read all instructions before assembling crib. KEEP INSTRUCTIONS FOR FUTURE REFERENCE. Attached to the mattress platform is a sleeve to store the instruction booklet. After assembly is complete, return this instruction booklet to the sleeve for future reference.
  • Page 6 Attaching the Mattress Platform Brackets Make sure the brackets are straight and Step 1: Locate the (4) Mattress Platform Brackets with perpendicular to the crib uprights. attached assembly bolts as shown in Fig. 1. When child is able to pull to a standing Determine the high or low position of the mat- position, set the mattress platform to the tress foundation (Fig.
  • Page 7 Attaching the Crib Base Rail Step 2: Using a Flathead Screwdriver, align the slots in the Barrel Nuts with the holes for the connector bolts located in the Base Rail . See Figure 4. Align the holes in the Base Rail with the holes in the Crib Ends and insert (4) 3 1/2” connector bolts from the outside of the Crib Ends.
  • Page 8 Attaching the Crib Side Step 3: Position (1) Crib Side, as shown in Figure Fig. 8 7, by aligning the Locater Pin on the top edge of the Base Rail with the hole in the Figure 7. bottom rail of the Crib Side. Align Crib Side Gently spread the top of the Crib Ends to allow the Locater Pins in the Crib Ends to...
  • Page 9 Attaching the Mattress Platform Step 4: Place the Mattress Platform into the sup- port brackets. (Before inserting bolts, make sure the instruction holder and the warning label are facing up and readable as shown in Fig 12. After the Mattress Platform is in place, use Figure 11.
  • Page 10 Attaching the Opposite Crib Side And Base Rail Step 5: Attach the remaining Crib Side. See Fig. 13. Refer to Step 3 on page 8. Tighten all Crib Side, Mattress Platform, and Base Rail bolts at this time. After the crib is assembled re- check all assembly bolts and make sure that each is securely tightened using the provided...
  • Page 11 Final Step in Crib Assembly Step 6: (The final and most important) Checklist. Inspect the crib once again to assure that all bolts are tight and that no hardware is missing. (if you have missing hardware, contact Stanley Furniture immediately for replacement and do not use the crib until the new hardware arrives).
  • Page 12 Cleaning: Mix together a mild solution of gentle dishwashing liquid and water, apply to the crib sur- face using a soft clean cloth lightly dampened in the solution. Rinse with clear water again using a soft clean cloth, then dry all surfaces thoroughly with a dry cloth. NO ABRASIVE CLEANERS, SCOURING PADS, STEEL WOOL OR COURSE RAGS SHOULD BE USED TO CLEAN THIS FINE FURNITURE.
  • Page 13 Lowering the Mattress Platform Steps to lower the mattress: Figure 15. Remove the mattress from the crib. Loosen the (4) bolts attaching the front Base Rail. See Figure 15. Do not remove the bolts. Loosen the (4) bolts attaching the front Crib Side from the End Assembly.
  • Page 14 Converting Your Crib to a Daybed Steps to Convert Crib to a Daybed: When converting to a Daybed the Mattress Platform must be in the lower position. Follow the instructions on page 13 for lowering the Mattress Platform. Do not reattach the Crib Side. Remove the (3) exposed Locater Pins from the Crib Ends and the Base Rail.
  • Page 15 Accessories and Options Toddler Bed Conversion Kit item STK-3435 is available as an option to convert the Stationary Side Crib to a toddler bed. Contact your youngAmerica dealer to purchase this item. Toddler Bed Conversion Kit item STK-3440 is available as an option to convert the Stationary Side Crib to a toddler bed (For SSC-1300 and 1800 cribs only).
  • Page 16 Stanley F u r n i t u r e Stanley Furniture Company 200 North Hamilton St No. 200 High Point, NC 27260 For parts, contact your Stanley Furniture dealer. For additional consumer information call our Customer Service Department at: 1-(800) 659-7297Mon.-Fri., 8am-5pm Eastern Standard Time...
  • Page 17 CPSC-Consumer Product Commission safety requirements. Thank you for purchasing a youngAmerica Toddler Bed. If you find that you are missing a part or if a part is defective in any way, contact your Young America re- tailer for assistance.
  • Page 19 Identifying the Parts Barrel Nuts Barrel Nuts Barrel Nuts Barrel Nuts Toddler Safety Rail Complete with 9/16” x 3/8” Barrel Nuts 1 Allen Wrench (Provided) 4—3/4” Bolts (Provided)
  • Page 20 Toddler Bed Assembly NOTE: Read all instructions before assembling toddler bed. KEEP INSTRUCTIONS FOR FUTURE REFERENCE. Attached to the mattress platform is a sleeve to store the instruction booklet. After assembly is complete, store this instruction booklet in the provided sleeve for fu- ture reference.
  • Page 21 Converting Your Crib Step 1: Before attaching the Toddler Bed Conver- sion Kit, your Crib must be converted to a Daybed with the Mattress Platform in the Figure 1. lowest position. Refer to page 13 in your Crib Instruction Booklet. See Figure 6. It is recommended that you remove the Mattress Platform before attaching the Safety Rail to allow easier access to the...
  • Page 22 Attaching the Toddler Safety Rail Figure 4. Step 2: Gently loosen bolts attaching the Crib Sides and Base Rails to the Crib Ends. See Crib Side Figure 4. Loosen bolts and remove Front Base Rail (Bolts will stay attached to Crib Ends). Align Locator Pins with Specified holes (See Figure 5) and hand tighten.
  • Page 23 Attaching the Toddler Safety Rail Step 3: Align the top hole in the ends of the Figure 6. Toddler Rail with locator pins. See Figure 6. The barrel nuts on the Toddler Rail will face to the inside of the crib. Align Connector Bolts and loosely tighten.

  • Page 24: Final Assembly

    Final Assembly Step 4: (The final and most important) Checklist. Inspect the bed once again to assure that all bolts are tight and that no hardware is missing. (if you are missing hardware, contact Stanley Furniture immediately for replacement and do not use the bed until the new hardware arrives).
  • Page 25 Cleaning: Mix together a mild solution of gentle dishwashing liquid and water, apply to the Toddler Bed surface using a soft clean cloth lightly dampened in the solution. Rinse with clear water, using a lightly dampened, soft clean cloth, then dry all surfaces thoroughly with a dry cloth.
  • Page 26 Stanley F u r n i t u r e Stanley Furniture Company 200 N Hamilton St No. 200 High Point, NC 27260 For parts, contact your Stanley Furniture dealer. For additional consumer information call our Customer Service Department at: 1-(800)-659-7297 Mon.-Fri., 8am-5pm Eastern Standard Time 07102013 8500STKB40...
