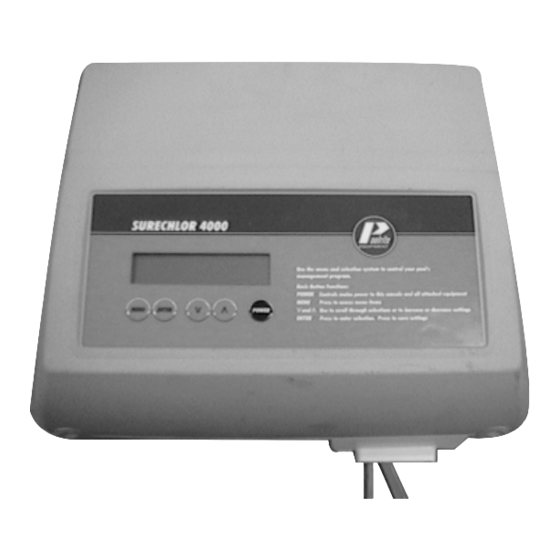

PoolRite Surechlor 4000 Owner's Manual

Salt water chlorinator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Warranty Card
EQUI P M ENT
Poolrite Equipment Pty. Ltd.
Poolrite Equipment Pty. Ltd.
415 Creek Road,
P.O. Box 520,
Mt. Gravatt. QLD. 4122 Australia
Telephone: (07) 3323 6555
Facsimile: (07) 3323 6500
Poolrite Equipment Pty. Ltd.
15 Yiannis Court,
Springvale. VIC. 3171 Australia
Telephone: (03) 9547 4188
Facsimile: (03) 9547 1023
Poolrite Equipment Pty. Ltd.
36 Hugh Ryan Street,
Garbutt. QLD. 4814 Australia
Telephone (07) 4779 4880
Facsimile (07) 4779 6714
Item No. 21619 (08/04)
Stella Print
SURECHLOR 4000
Pool Management System
A.B.N. 11 001 674 004
Poolrite Equipment Pty. Ltd.
6 Forsyth Close,
P.O. Box 7055,
Wetherill Park. N.S.W. 2164 Australia
Telephone: (02) 9729 0166
Facsimile: (02) 9729 2759
Poolrite Equipment Pty. Ltd.
Unit 10/16 Ledgar Road,
Balcatta. W.A. 6021 Australia
Telephone: (08) 9344 3871
Facsimile: (08) 9345 3923
Poolrite Equipment Pty. Ltd.
Unit 22, 761 Great South Road,
Penrose. Auckland
New Zealand.
Telephone:
(09) 571 0210
Facsimile:
0800 766 574
EQUI P M ENT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Surechlor 4000 and is the answer not in the manual?

Questions and answers

Valerie Lee
April 28, 2025

Hi there just need to know the fuse size in the surechlor 4000

0
1 comments:
Mr. Anderson
May 15, 2025

The fuse size for the PoolRite Surechlor 4000 is 1.25 Amp for the 15G model.

This answer is automatically generated

0

Related Manuals for PoolRite Surechlor 4000

Summary of Contents for PoolRite Surechlor 4000

  • Page 1 Warranty Card SURECHLOR 4000 Pool Management System Poolrite Equipment Pty. Ltd. A.B.N. 11 001 674 004 Poolrite Equipment Pty. Ltd. Poolrite Equipment Pty. Ltd. 415 Creek Road, 6 Forsyth Close, P.O. Box 520, P.O. Box 7055, Mt. Gravatt. QLD. 4122 Australia Wetherill Park.
  • Page 2 Unit 22, 761 Great South Road, equipment. Unless with the express prior authority of Poolrite, any repair or replacement Penrose. Auckland shall be provided only by Poolrite or it’s authorised distributors and this Warranty shall New Zealand. not extend to any expenditure otherwise incurred.

  • Page 3: Table Of Contents

    Using Super Chlorination Using Manual Control Setting The Time Setting The Winter Modes Changing The Settings Accessing the System History Messages HOW YOUR SURECHLOR 4000 WORKS MAINTENANCE OF POOL CHEMISTRY Chlorine Level pH Control Adding Acid Total Alkalinity Cyanuric Acid Stabiliser...

  • Page 4: Installation Instructions

    INSTALLATION INSTRUCTIONS OWNERS MANUAL Please hand this Owner’s Manual to the pool owner after installation is completed as it contains the Warranty Card and vital information for correctly maintaining the pool and this product! SURECHLOR CELL Ideally, the electrolytic cell should be installed in a position with 1.5 metres of a vertical wall or fence to allow the Power...
  • Page 5 The diagram below shows the general arrangement for this loop. Vented Loop Warning: The Warranty will be void if the cell is not installed exactly as specified. SURECHLOR POWER PACK The Power Pack Enclosure is approved and rated to Degree Of Protection IP24 and therefore can legally be installed in the Pool Zone as defined in the AS/NZS 3000 Wiring Rules.

  • Page 6: Connecting The Pool Pump

    If double adaptors or stackable plugs are employed to operate more than one pump directly from this Pump Outlet Socket the Warranty will be void. Please refer to your Poolrite State Office for details. ADDING SALT TO THE POOL Start up procedure for marble surface pools...

  • Page 7: Calculating Pool Capacity

    = 360 kg What Salt Concentration To Use Although your Surechlor 4000 has been designed to operate with a wide range of salt concentrations, the minimum recommended level is 6000 mg/l (P.P.M.). However with heated and outdoor pools in tropical and sub-tropical climates, salt levels between 7000 and 8000 mg/l can be maintained in order to gain the benefits of increased chlorine output, reduced cell maintenance and extended cell life.

  • Page 8: Adding Salt And Stabiliser

    30 and 60 mg/l (ppm). pH buffer can also be added now if required. Dissolving The Salt Before attempting to operate the Surechlor 4000 cell, the salt must be allowed to fully dissolve in the pool water. This is the best achieved (after allowing sufficient time for the glue on the pipe fittings to set properly) by running the filter pump without the cell operating for 24 hours to circulate the water.

  • Page 9: Operating Instructions

    SETTINGS AND CONTROLS CHLORINE CONTROL — all models Because your Surechlor 4000 has been designed to operate over a wide range of salt levels, water temperature, running time, etc., a Chlorine Control has been provided to compensate for these variations.

  • Page 10: Setting The Time

    Setting The Time Press the menu button four times and press enter. Each program can be turned on by pressing the up button and turned off by pressing the down button. Press enter again and adjust the start time with the up and down buttons as necessary. Press enter again and adjust the stop time with the up and down buttons as necessary.

  • Page 11: Chlorine Level

    Common salt (Sodium Chloride) is made up of two elements, sodium and chlorine. When your Poolrite Surechlor 4000 is installed a measured amount of salt is dissolved in the pool water to make it slightly salty (about 15% of the salt found in sea water).

  • Page 12: Adding Acid

    Adding Acid If the addition of acid is indicated, be careful not to add too much at one time as this may destroy total alkalinity or cause harmful effects. We suggest you turn on the filter, add the acid to water in a plastic watering can to dilute, then distribute evenly around the pool away from walls, steps, etc.

  • Page 13: Maintenance Of Your Surechlor

    MAINTENANCE OF YOUR SURECHLOR 4000 Your Surechlor 4000 Auto Kleen has been designed to operate for extended periods with a minimum of maintenance. The cell cleaning function is performed automatically via the inbuilt electronic control module. Cell Cleaning (Manual Procedure) Remove Surechlor Power Pack plug from 240 volt power point.

  • Page 14: Common Causes Of Premature Cell Failure

    HOW LONG SHOULD YOUR CHLORINATOR CELL LAST? When installed on a normal domestic pool, Poolrite cell electrodes have a nominal life expectancy of approximately four years if they are correctly maintained. With operating conditions varying widely in different pools, the actual life of the cell electrodes can be quite different from the nominal life.

  • Page 16: Electrical Specifications

    Cell Fuse - 1.25 Amp for 15G, 25G, 35G. 2 Amp for 45G and 70G. APPROVALS All Poolrite Surechlor 4000 Salt Water Chlorinators have been fully tested and approved by the QLD Electrical Safety Office and have been issued with a AS/NZS 3136 Certificate of Approval.

  • Page 17: Appendix A — Menu Tree

    APPENDIX A — MENU TREE START UP DIAGNOSTICS S U R E C H L O R 2 5 G A G N O S T I T E S T O F F * L O A D I N E V A R U N D R Y...
  • Page 18 S E T U P B E E P E R O F F * O N * S E T Y E A R 2 0 0 4 S E T M O N T H J A N S E T D A Y S E T...
