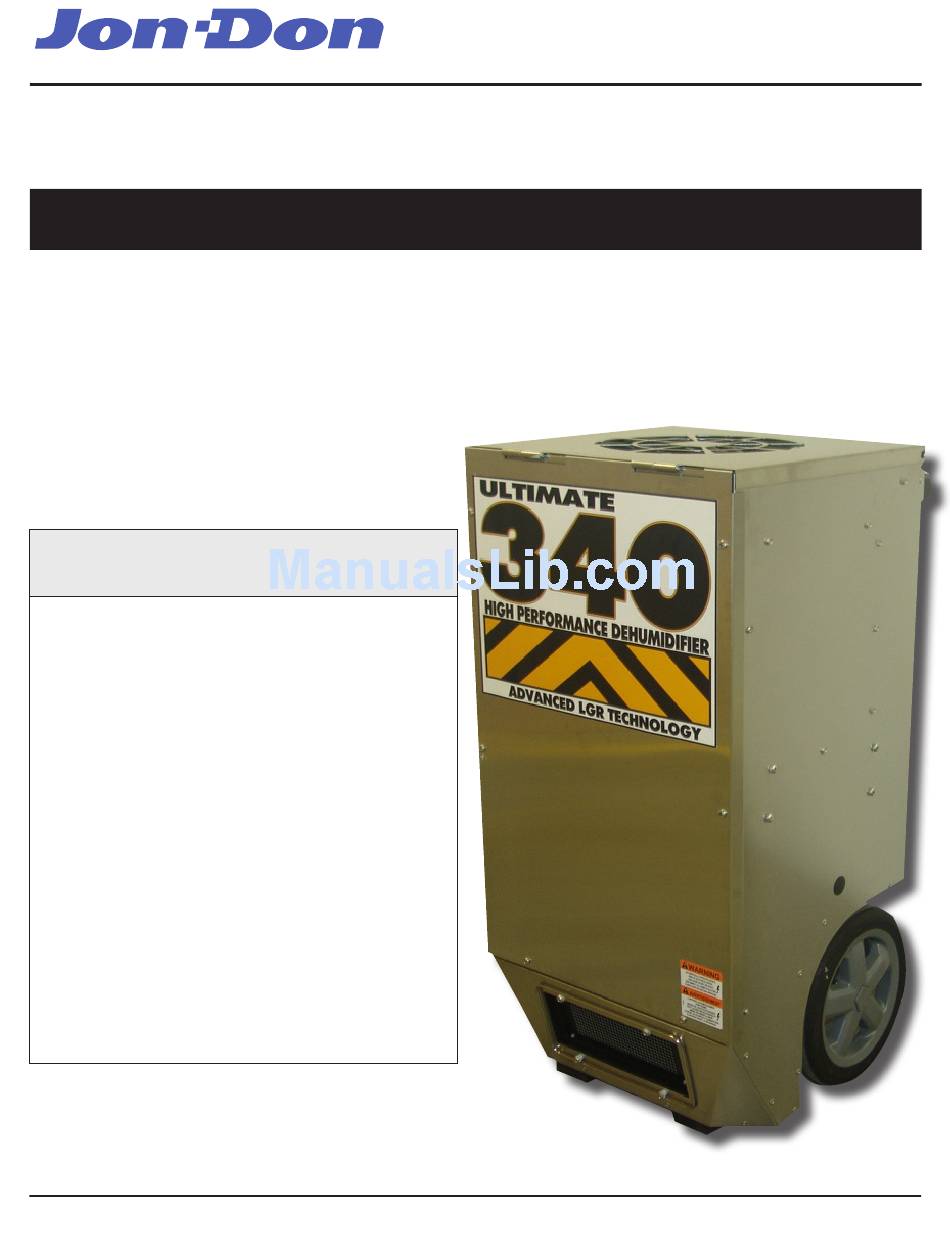

Owner's Manual — Ultimate 340
The Ultimate 340 is one of the most effective and versatile drying devices available. The Ultimate 340
removes more water and has more grain depression than other refrigerant dehumidifiers, even though it
only requires 10 amps of electricity.
The term LGR (Low Grain Refrigerant) was created to describe the unique drying capabilities of this
dehumidifier. These units were known for delivering substantially drier air, as well as for drying areas to
much lower humidity levels than conventional dehumidifiers.

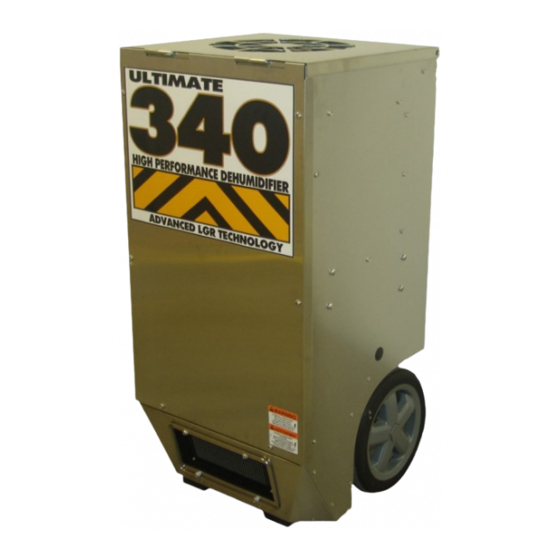

The Ultimate 340 LGR,
High Capacity Dehumidifier
• Improved water removal
145 pints per day AHAM (80ºF, 60%)
• Improved grain depression
The driest air from an LGR
• MERV-11 filtration
• Multiple ducting options
12" intake, 10" lay-flat exhaust
• Less than 10 amps
Removes the most pints of water per kilowatt
• Stainless steel cabinet
• Internal pump with 30 feet of hose
• Five-year warranty on the sealed refrigeration
system.
• 12" recessed wheels
• Solid state controls
Patent D570,988
Specifications subject to change without notice.
Toll-Free 1-800-556-6366
Installation, Operation & Service Instructions
Read and Save These Instructions
Ultimate 340
# OE-ULT340-EA
1
1.800.556-6366
TS-620
04/12
www.jondon.com

Advertisement

Table of Contents
loading

Related Manuals for Jon-Don Ultimate 340

Summary of Contents for Jon-Don Ultimate 340

  • Page 1: Introduction

    Installation, Operation & Service Instructions Read and Save These Instructions The Ultimate 340 is one of the most effective and versatile drying devices available. The Ultimate 340 removes more water and has more grain depression than other refrigerant dehumidifiers, even though it only requires 10 amps of electricity.

  • Page 2: Table Of Contents

    • If used in a wet area, plug it into a GROUND FAULT INTERRUPTER. • DO NOT use the Ultimate 340 as a bench or table. • It must always be used in the upright position. • The air inlet on top & the side outlet must be at least 1 foot from walls and other obstructions to air flow.

  • Page 3: Electrical Requirements

    2.3 Electrical Requirements unplugged. The previous total will be displayed the next time The Ultimate 340 plugs into a common grounded outlet on a the unit is turned on. The job hours can be reset by pressing 15 Amp circuit. It draws 10 Amps at 80°F, 60% RH. If used in and holding the HOURS button for 5 seconds when the unit is a wet area, a ground fault interrupter (GFI) is required.

  • Page 4: Storage

    3.2 Storage There are two issues to consider when the Ultimate 340 is stored between uses and both pertain to the water trapped in the unit: damage caused by freezing or biological growth. The effect of the trapped water can be greatly reduced if precautions are taken to remove as much as possible before storage.

  • Page 5: Air Mover Replacement

    Some dehumidification, air mover runs continuously but Evaporator coil frosted continuously, low dehumidifying compressor only runs sporadically. capacity. 1. Unit is in defrost cycle, DEFROST light on 1. Defrost thermistor loose or defective 2. Defrost thermistor defective or loose 2. Low refrigerant charge 3.

  • Page 6: Refrigerant Charging

    Fig. 3). 4.9 Gravity Drain Option If the condensate pump fails and cannot be replaced immediately, the Ultimate 340 can be used by draining by gravity. 1. Unplug the unit and remove the front cover. 2. Push the plastic plug on the right side (see Fig. 4) out from inside the unit.

  • Page 7: Wiring Diagram

    5 Wiring Diagram PART NO. REV. PH-4027288-EA PLUG THERMISTOR WHT-2 WHT-8 LEVEL SWITCH HUMIDISTAT COMPRESSOR BLK-12 BLOWER MOTOR FLOAT WIRE WHT-8 SAFETY WHT-9 PUMP WHT-7 PRESSURE Figure 3: Electrical schematic of Ultimate 340 Toll-Free 1-800-556-6366 www.jondon.com...

  • Page 8: Service Parts List

    6 Service Parts Item Part No. Qty. Description Item Part No. Qty. Description PH-4027275-EA Extension Cord, 20ft PH-4026311-EA Axle PH-4027257-EA Heat Exchanger PH-1284404-EA Cotter Pin PH-4028225-EA Evaporator PH-4027273-EA Skid Plate PH-4029176EA Compressor PH-4023080-EA Coupling Insert, .38 Tube PH-1970010-EA Relay PH-4027258-EA Plug Receptacle PH-4029606-EA 55 uFd Capacitor...
  • Page 9 This page intentionally left blank. Toll-Free 1-800-556-6366 www.jondon.com...

  • Page 10: Warranty

    (but all warranty periods will be extended by the period of time, if any, that the Ultimate 340 Dehumidifier is out of service while awaiting covered warranty service).
