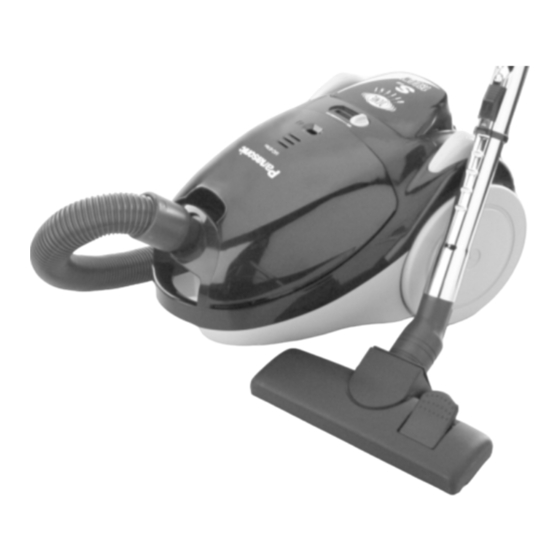

Panasonic MC-E761 Service Manual

Panasonic vacuum cleaner service manual
Hide thumbs Also See for MC-E761:
Table of Contents

Advertisement

Quick Links

SPECIFICATIONS

Power source
Input power (max.)
Vacuum
Power cord length
Radio of operation
Net weight
Dimensions (LxWxH) mm
Attachments:
Floor nozzle
Extension tube
Crevice nozzle
Specifications are subject to change without notice for further improvement.
MC-E761
AC230V
AC230-240V Depending on version
50Hz
1500W
29 kPa
5 m
7.8 m
6.1 kg
410x282x255
•
•
•
Ref.: Z32T4000

Vacuum Cleaner

MODEL MC-E761
Matsushita Electric España, S.A.
VACUUM CLEANER DIVISION
Zona Industrial del Polígono de CELRÀ
17460 CELRÀ (Girona) SPAIN

Advertisement

Table of Contents
loading

Related Manuals for Panasonic MC-E761

Summary of Contents for Panasonic MC-E761

  • Page 1: Specifications

    Floor nozzle • Extension tube • Crevice nozzle Specifications are subject to change without notice for further improvement. Ref.: Z32T4000 Vacuum Cleaner MODEL MC-E761 Matsushita Electric España, S.A. VACUUM CLEANER DIVISION Zona Industrial del Polígono de CELRÀ 17460 CELRÀ (Girona) SPAIN...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SPECIFICATIONS ................SCHEMATIC DIAGRAM PICTORIALWIRING DIAGRAM EXPLODED VIEW...

  • Page 3: Schematic Diagram

    SCHEMATIC DIAGRAM MC-E761 Black POWER SUPPLY AC 230 V 50 Hz Black THERMAL CUT-OUT PICTORIALWIRING DIAGRAM MC-E761 CORD REEL Grey VR22 VR21 Blue C3 + ON/OFF SWITCH MOTOR POTENTIOMETER Black White TRIAC DIAC Black Yellow Blue THERMAL CUT-OUT Black Yellow...

  • Page 4: Exploded View

    EXPLODED VIEW...
  • Page 5 EXPLODED VIEW...
  • Page 6 EXPLODED VIEW...

  • Page 7: Spare Parts List

    MOTOR COVER THERMAL CUT-OUT POWER CONTROL CIRCUIT SLIDING POTENTIOMTER ON/OFF SWITCH REAR SUPPRESOR CORD REEL UNIT CORD REEL UNIT CORD REEL UNIT Applied for PART No. Pcs/Set MC-E761 all countries ( ) AMC8A92T1034 • AMC8A01K0034 • AMC8A0281034 • AMC8A94P1034 • AMC8A1125034 •...
  • Page 8 SET COVER CARTON BOX CARTON BOX CUSHION A CUSHION B CUSHION B CUSHION SUPPLEMENT OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS Applied for PART No. Pcs/Set MC-E761 all countries ( ) AMC8P97P6000 • AMC8P90P1000 • AMC8P93L1000 • AMC8EZ3L0061 • AMC8EZ1L0061 •...

  • Page 9: Replacement Of Main Parts

    REPLACEMENT OF MAIN PARTS IMPORTANT: Before replacing any part always DISCONNECT THE CLEANER FROM THE ELECTRICITY SUPPLY. • MOTOR / CARBON BRUSHES (1) Motor 1. To remove the dust cover first pull it out from one side and then rotate it up wards to take it out. (Fig.1) 2.
  • Page 10 REPLACEMENT OF MAIN PARTS 3. Remove 7 screws from upper body and take out front cover and upper body. (Fig. 3) 4. Remove black and white lead wires (provided with quick- connect terminal) from the contact spring tabs and take out cord reel ass’y and motor unit.
  • Page 11 REMPLACEMENT OF MAIN PARTS 5. Disconnect yellow and black lead wires (provided with quick-connect terminal) from the power control circuit tabs. (Fig. 5) 6. Remove motor cover and rear/front motor support from the motor. (Fig. 6) 7. Disconnect yellow and black lead wires (provided with quick-connect terminal) from the carbon brush holder tabs and replace the motor with a new one.
  • Page 12 REPLACEMENT OF MAIN PARTS (2) Carbon brushes NOTE: The two carbon brushes should be replaced at the same time. 1. Take out motor unit and remove motor cover A and B as explained previously in paragraph (1) “Motor”, points 1-6. 2.
  • Page 13 REPLACEMENT OF MAIN PARTS • POWER CONTROL CIRCUIT / ON/OFF SWITCH / SLIDING POTENTIOMETER (1) Power Control Circuit 1. Take out cord reel ass’y and motor unit as explained previously in paragraph (1) “Motor”, points 1-4. 2. Disconnect yellow and black lead wires (provided with quick-connect terminals) from the power control circuit tabs.
  • Page 14 REPLACEMENT OF MAIN PARTS (3) Sliding Potentiometer 1. Remove upper body as explained previously in paragraph (1) “Motor”, points 1-3. 2. Take out the sliding potentiometer from its support and remove lead wires (blue and grey) from the potentiometer tabs. (Fig. 15) NOTE: Observe the correct position of the lead wires before installing the new one.
  • Page 15 REPLACEMENT OF MAIN PARTS 3. Separate cord reel unit and cord reel support. (Fig. 18) 4. Replace the cord reel unit with a new one. 5. Reassemble cord reel unit and cord reel support and refasten the screw. NOTE: Wind up the power cord extra times as indicated on the spring plate to maintain the cord reel spring efficiency.
  • Page 16 REPLACEMENT OF MAIN PARTS • BRAKE LEVER UNIT 1. Remove upper body as explained previously in paragraph (1) “Motor”, points 1-3. 2. Turn upper body over exposing the underside and remove brake lever unit by pressing it sidewards as indicated. (Fig.

  • Page 17: Trouble Shooting Guide

    Check if dust bag is full or dust accumulated in central filter. Check dust accumulated in motor fan (it could happen if the vacuum cleaner has been used with a broken dust bag or without central filter). Check if the potentiometer is...

  • Page 18: Packing Instructions

    PACKING INSTRUCTIONS...
