Electric Pyrolytic Oven
Model Number STR-APYRO
INSTRUCTION MANUAL
IM Version No: V1.4
Issue Date: 08 January 2016
AFTER SALES SUPPORT
info@tempo.org
AUS
1300 886 649
MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016
N13275

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STR-APYRO and is the answer not in the manual?

Questions and answers

Related Manuals for Stirling STR-APYRO

Summary of Contents for Stirling STR-APYRO

  • Page 1 Electric Pyrolytic Oven Model Number STR-APYRO INSTRUCTION MANUAL IM Version No: V1.4 Issue Date: 08 January 2016 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016 N13275...

  • Page 2: Welcome

    Welcome Congratulations on choosing to buy a STIRLING product. ® ® All products brought to you by STIRLING are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year In Home Warranty.

  • Page 3: Table Of Contents

    08 Product Overview 10 Installation 16 Getting Started 17 Instructions 27 Cooking Guidelines 29 FAQs 31 Other Useful Information 39 Repair and Refurbished Goods or Parts Notice AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...

  • Page 4: Warranty Details

    You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. YEAR IN HOME WARRANTY AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...

  • Page 5: General Safety Instructions

    • Damaged cord: If the power cord is damaged, it must be replaced by the manufacturer or a qualified service engineer in order to avoid a hazard. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...
  • Page 6 • Liability: We assume no liability for any eventual damages caused by improper use or installation of the appliance or by noncompliance with these instructions. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...
  • Page 7 • Danger of fire! Never leave items inside the oven cavity as this can be a fire hazard when the oven is switched on. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...

  • Page 8: Product Overview

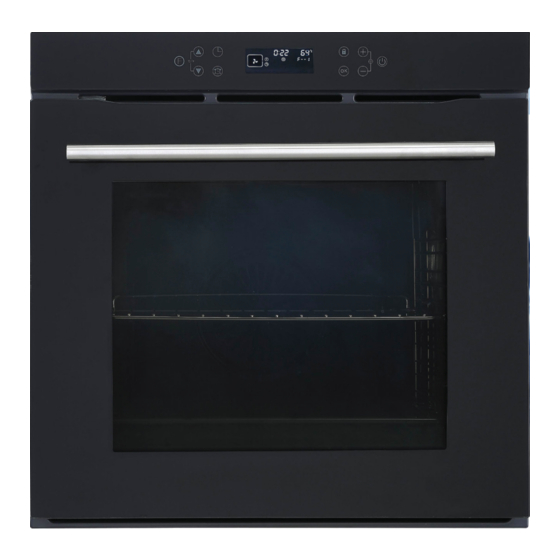

    Door handle Lamp (x2) G Baking/drip tray Also included, but not pictured: 4x ST4*26 screws and 4x sleeves for installation Instruction manual, Quick start guide, Warranty certificate AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...

  • Page 9: Led Display

    Manual (Function) cooking (F) symbol Pyrolytic self-cleaning symbol Function symbol Element operation symbol End time symbol NOTE: Only symbols for the functions selected will be illuminated at a time. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...

  • Page 10: Installation

    • Care must be taken to ensure that the temperature of the mains supply cable does not exceed 50°C. • If the mains supply cable is damaged, then it must be replaced by an appropriate replacement.   AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...
  • Page 11 1 pyrolytic self-cleaning function Oven temperature range 50 – 250°C Timer 24 hour, digital Rated voltage / frequency 220-240V AC / 50Hz Total rated input power 3500W AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...

  • Page 12: Installing The Oven Into The Kitchen Cabinet

    The kitchen area should be dry and aired and equipped with efficient ventila- tion. When installing the oven, ensure easy access to all control elements. Fig. 2 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...

  • Page 13: Positioning The Appliance

    Fig. 3: Ventilation and cut-out requirements for the installation of the appliance into a standard kitchen unit AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...
  • Page 14 Storage space Rear panel Remove rear panel from this section Storage space Rear panel Plinth Minimum ventilation cut-out 200cm AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...
  • Page 15 (marked with arrows in Fig. 5) and then use the four screws (supplied) to affix the oven cabinet into the housing unit. Fig. 5 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...

  • Page 16: Getting Started

    (baking tin, roasting dish, foil containers etc.) on the oven shelf provided; the side racks provide six height options. CAUTION! Take care to avoid burns, the oven becomes very hot during use. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...

  • Page 17: Instructions

    • To change the suggested oven temperature, press the PLUS/MINUS [ +/- ] button(s) while [ F ] is flashing, until the desired oven temperature is selected, then press the [ OK ] button. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...
  • Page 18 Moreover, this mode can also be used to thaw quickly white or red meat and bread by setting the temperature to 80°C. To thaw more delicate foods, set the thermostat to 60°C or use the Defrost mode (F--1). AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...
  • Page 19 Here are a few examples: cream puffs, sweet and savoury biscuits, savoury puffs, Swiss rolls, and small portions of vegetables au grain, etc. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...
  • Page 20   F-13 - Fast preheating This setting helps to increase the oven temperature rapidly to 200 °C AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...
  • Page 21 During the cooking the oven door must remain   closed. P--4 - Pizza This setting is for baking different types of pizza. Place the dough on the second shelf after preheating the oven. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...
  • Page 22 180-200 40-50 mins   P--6 Bread 25 mins 180-220 20-30 mins   P--7 Cake 30 mins 190-210 25-35 mins   P--8 Meat 30 mins 170-190 25-35 mins AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...

  • Page 23: Cooking Timer

    Then h mi n press [ OK ]. For example, if you set 1 minute, the oven will start heating in 1 minute. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...

  • Page 24: Other Functions

    The oven temperature can be displayed in degrees Celsius (°C) or degrees Fahrenheit (°F). To change from one to the other, press both FUNCTION UP/ DOWN selector buttons at the same time. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...
  • Page 25 • Roasting meat: Covering a roast or wrapping it in foil will preserve its juices and the oven will remain cleaner. However, the roast will cook faster in an uncovered pan. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...
  • Page 26 At the end of cooking, wipe the oven door thoroughly and take the roast out of the oven to rest. • Door opening: Do not open the oven door more often than required. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...

  • Page 27: Cooking Guidelines

    Weight Temperature Time Time lowest position: 1 Food (kg) °C highest position: 6 (mins) (mins) Beef 40-50 Pork 70-80 Chicken 50-60 Duck 50-60 Steak 20-30 Bread 35-45 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...
  • Page 28 Time lowest position: 1 Food (kg) °C (mins) highest position: 6 (mins) Beef 20-25 Pork 25-30 Chicken 40-45 Sausages 15-20 Mince patties 15-20 Corn 20-25 Vegetables 15-20 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...

  • Page 29: Faqs

    Ensure that the correct temperatures and shelf positions are being used. • Ensure that your dishes are placed centrally on the oven shelf. • Rotate the dish during cooking. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...
  • Page 30 IN CASE OF AN EMERGENCY In the event of an emergency, switch off all working units of the oven and call our after sales support line for advice AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...

  • Page 31: Other Useful Information

    Any damage caused to the appliance by a cleaning product will not be covered under your warranty. IMPORTANT! The oven has a pyrolytic self-cleaning function. See page 32 for instructions how to run this function. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...
  • Page 32 • If the power is cut off during pyrolytic self-cleaning, the oven door will remain locked until the power is on again and the temperature inside the oven has dropped to below 250°C. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...
  • Page 33 Fig. 8 Fan Guard AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...

  • Page 34: Removing The Oven Door

    • To refit the door, slide the hinges back into their slots (Fig. 10). Open the door fully. • IMPORTANT: The locking latches (A) must be closed back into their original positions before closing the door (Fig. 11). Fig. 10 Fig.11 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...
  • Page 35 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...

  • Page 36: Replacing The Oven Light Bulb

    CAUTION: Do not touch the light bulb directly with your hands! The oil on your fingers will cause it to fail. Wear a protective glove or use a tissue to hold the bulb. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016 Fig. 13...

  • Page 37: Spare Parts

    Do not attempt to carry out any repairs yourself! Spare parts Our after sales support centre stocks a wide range of spare parts for the STR-APYRO STIRLING Electric Pyrolytic Oven. To purchase a part, call the centre on 1300 886 649 or email us at info@tempo.org •...
  • Page 38 Observe any local regulations regarding the disposal of electrical consumer goods and dispose of it appropriately for recycling. Contact your local authorities for advice on recycling facilities in your area. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...

  • Page 39: Repair And Refurbished Goods Or Parts Notice

    Telephone: 1300 886 649 (Aust) - Fax: (02) 9975 2688 Tempo Help Desk: 1300 886 649 (Aust) (Operating Hours: Mon-Fri 08:30am to 06:00pm EST) Email: info@tempo.org YEAR IN HOME WARRANTY AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...
  • Page 40 Minor revisions V1.2 04 January 2016 Glass panel removal section updated V1.3 06 January 2016 Compliance updates V1.4 08 January 2016 Minor revisions on pages 19, 20, 32 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-APYRO PRODUCT CODE: 53038 03/2016...
