SERVICE MANUAL
COMPACT DISC
STEREO SYSTEM
SYSTEM
NSX-VC58
• This Service Manual contains information about the difference between
NSX-VC58 (HC) and NSX-VC58 (HT). If requiring the other information,
see Service Manual of NSX-VC58 (HR,HT), (S/M Code No. 09-006-432-0R1).
• If requiring information about the CD mechanism, see Service Manual
of AZG-1, (S/M Code No. 09-001-335-3NG).

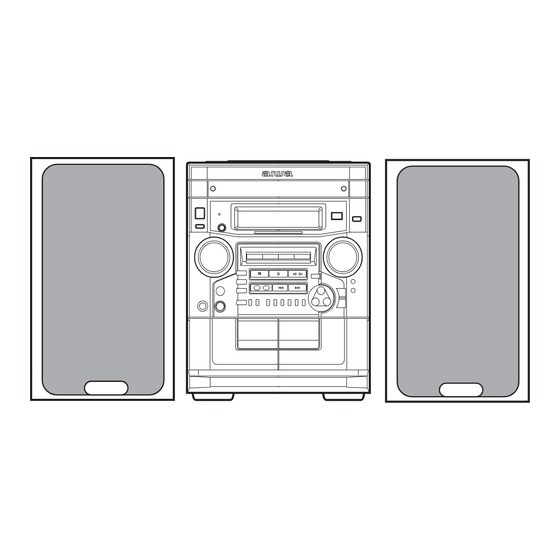

NSX-VC58
BASIC TAPE MECHANISM : 2ZM-3MK2 YPR9NC
BASIC CD MECHANISM : AZG-1 VEZD4RNDC
CD
SPEAKER
CASSEIVER
CX-NVC58
SX-WNBL53
S/M Code No. 09-009-432-0S1
REMOTE
CONTROLLER
RC-ZAS07
HC
