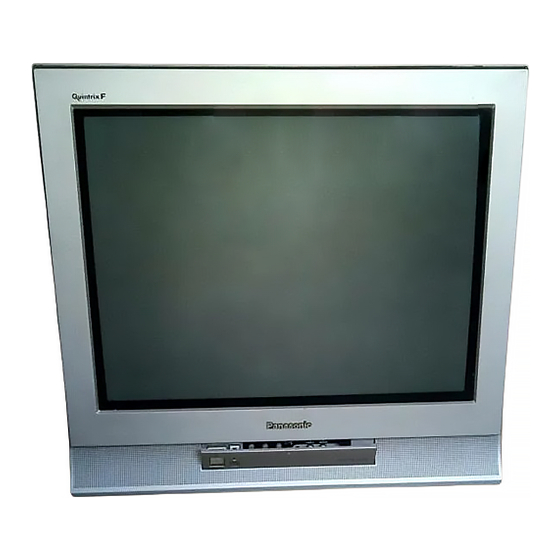

Panasonic TC-21PM10R Service Manual

Service Manual

Specifications

Power Source : AC AUTO 110-240V, 50/60Hz
Power Consumption : 81W
Aerial Impedance:75 unbalanced
Coaxial type
Receiving System : 17 System
Receiving Channels :
VHF 2-12 (PAL/SECAM B,K1)
0-12 (PAL B AUST)
1-9 (PAL B N.Z)
1-12 (PAL/SECAM D)
1-12 (NTSC M JAPAN)
2-13 (NTSC M U.S.A)
UHF 21-69 (PAL G,H,I/SECAM G,K,K1)
28-69 (PAL B AUST)
13-57 (PAL D,K)
13-62 (NTSC M JAPAN)
14-69 (NTSC M U.S.A)
CATV S1-S41(OSCAR)
1-125 (U.S.A CATV)
C13-C41(JAPAN)
S21-S41 (HYPER)
Z1-Z37 (CHINA)
Intermediate Frequency :
Video 38.0 MHz
Sound 31.5 MHz (D,K) / 32.5MHz (B,G)
32.0 MHz (I) / 32.5MHz (M)
Colour 33.57 MHz (PAL)
33.6 MHz (SECAM)
32.5 MHz (B,G)
33.75 MHz (SECAM)
34.42 MHz (NTSC)
Panasonic
Ω
ORDER NO. MTV 0006142C3
TC-21PM10R
MX-7 Chassis
Video / Audio Terminals :
FAV In : Video In 1 Vp-p 75
Video In Approx, 400mVrms
RAV In : Video In 1 Vp-p 75
Audio In Approx, 400mVrms
Monitor Out :Video Out1 Vp-p 75
Audio OutApprox, 400mVrms
High Voltage : 28.0 kV ( +/- 1.0 )
at zero beam current
Picture Tube : XA51LSK955X-A
51cm (21 inches)
Measured diagonally, 90 deflection
Audio Output : 3.5W
Dimensions : Height : 470 mm
Width : 508 mm
Depth : 475 mm
Mass : 23 kg
Specifications are subject to change without
notice.Mass and dimensions shown are approxi
mate.
2000 Matsushita Electric Industrial Co., Ltd.
c
All right reserved.Unauthorized copying and
distribution is a violation of law.
Colour Television
