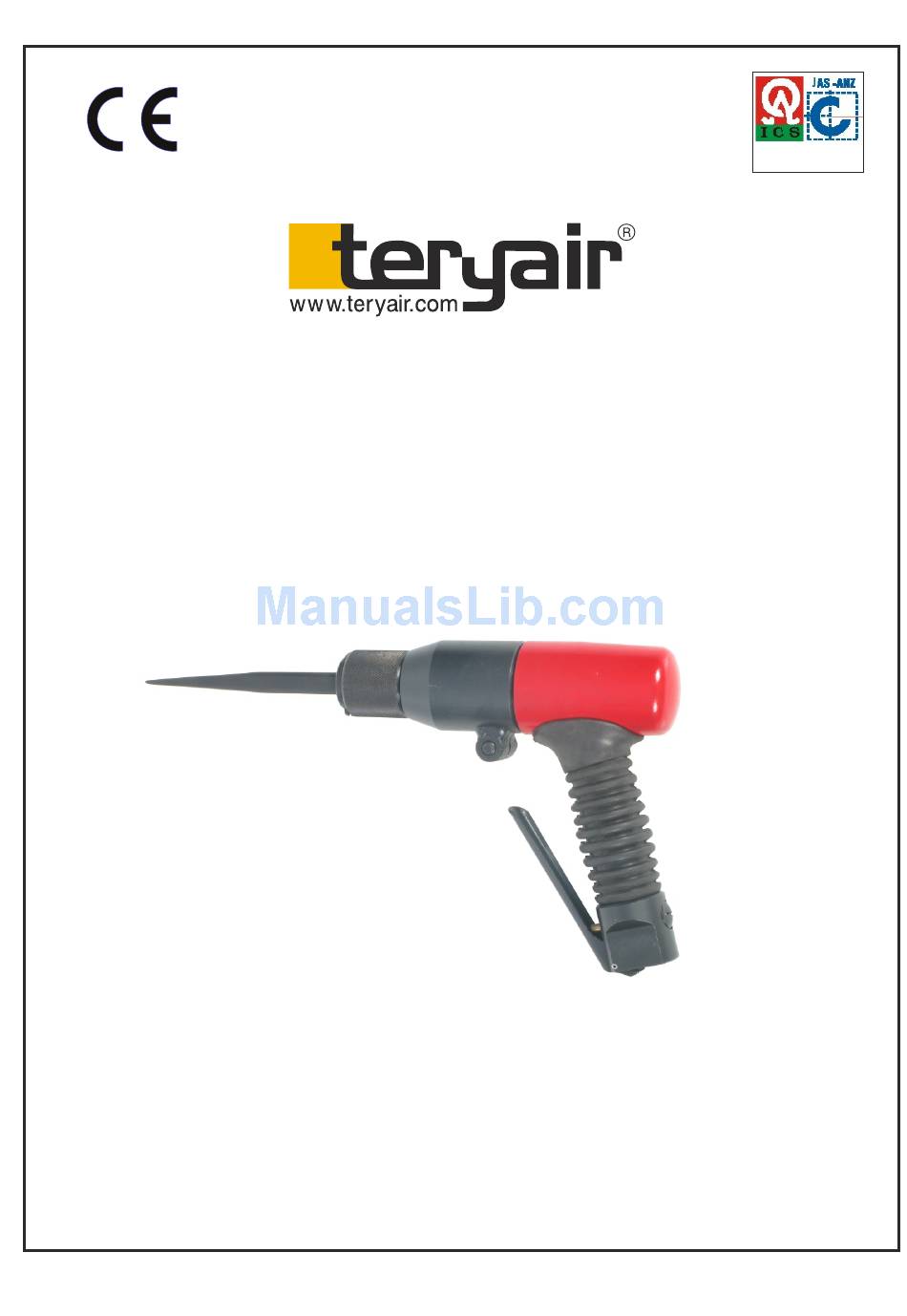

- Page 1 ISO 9001 : 2008 REQ1/3979 Product: Chisel Scaler MODEL: SC29PG Operation & Maintenance Guide FF - MM - 108 REV - 3 Sheet 1 of 5...
- Page 2 Chisel Scaler SC29PG Operation & Maintenance Guide (For 12.7mm A/F Square body and releasing slot at back type Chisel) OPERATION: Chisel Scalers are rugged, dependable tools designed to give years of satisfactory service. Follow the instructions mentioned here to enhance the life and performance of your scaler.
- Page 3 Chisel Scaler SC29PG Operation & Maintenance Guide (For 12.7mm A/F Square body and releasing slot at back type Chisel) To dis-assemble chisel scaler, remove chisel (22),from the tool described above .To remove chisel housing assy. Remove circlip (20) with the help of circlip piler. Remove stell ball (17) through the hole of ring (19) with little force.
- Page 4 Exploded view of SC29PG Assembly No. 1010000 Sheet 4 of 5 FF - MM - 108 REV - 3...
- Page 5 External circlip (light A -30) 200 90 68 Cap head screw (M8X30) JC 0175 F 19 ½' Sq shank chisel (optional) Note : Always use genuine TERYAIR spares part for best performance. Sheet 5 of 5 FF - MM - 108 REV - 3...
