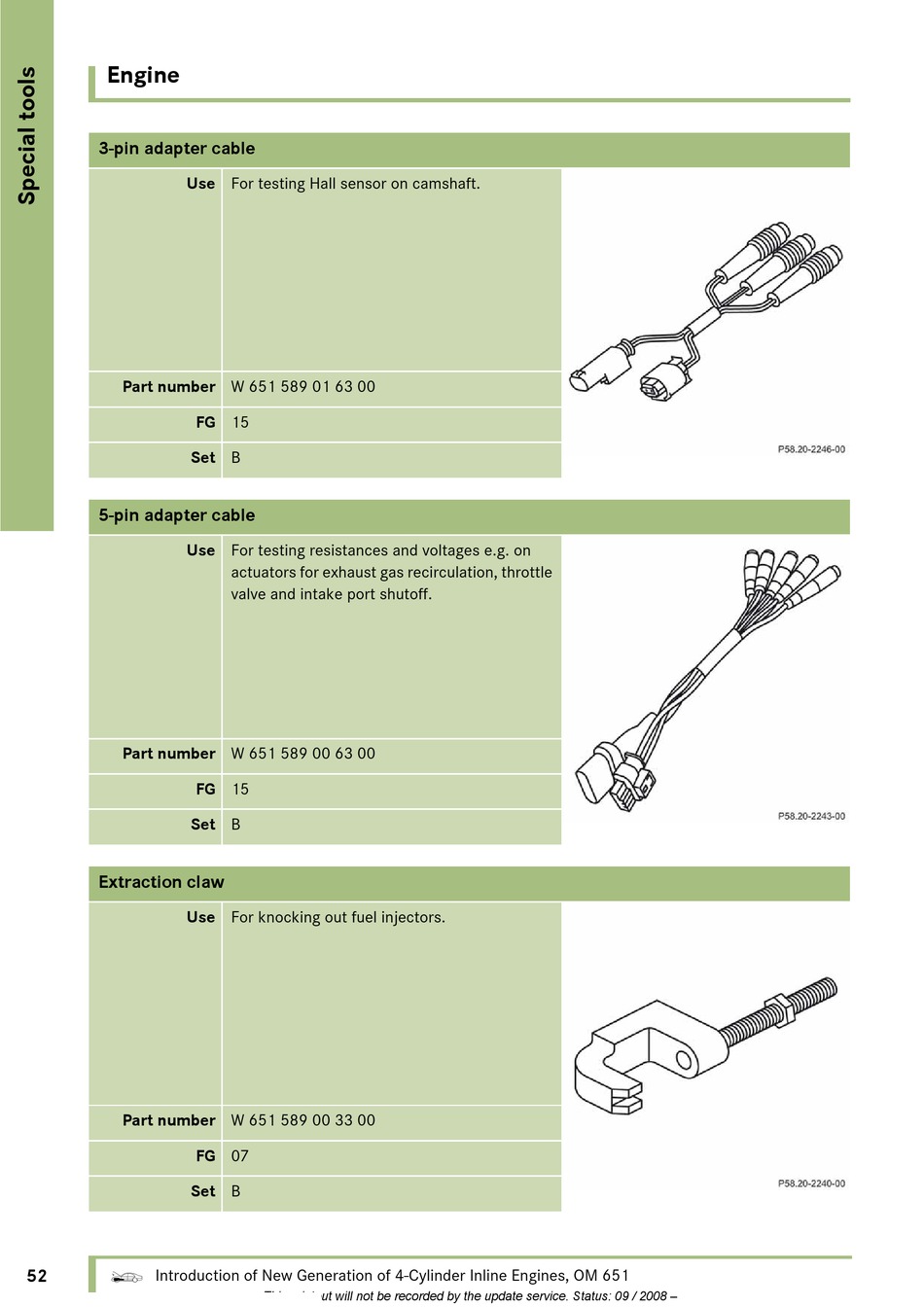

Engine
3-pin adapter cable
Use For testing Hall sensor on camshaft.
Part number W 651 589 01 63 00
FG 15
Set B
5-pin adapter cable
Use For testing resistances and voltages e.g. on
Part number W 651 589 00 63 00
FG 15
Set B
Extraction claw
Use For knocking out fuel injectors.
Part number W 651 589 00 33 00
FG 07
Set B
52
Introduction of New Generation of 4-Cylinder Inline Engines, OM 651
q
actuators for exhaust gas recirculation, throttle
valve and intake port shutoff.
– This printout will not be recorded by the update service. Status: 09 / 2008 –
