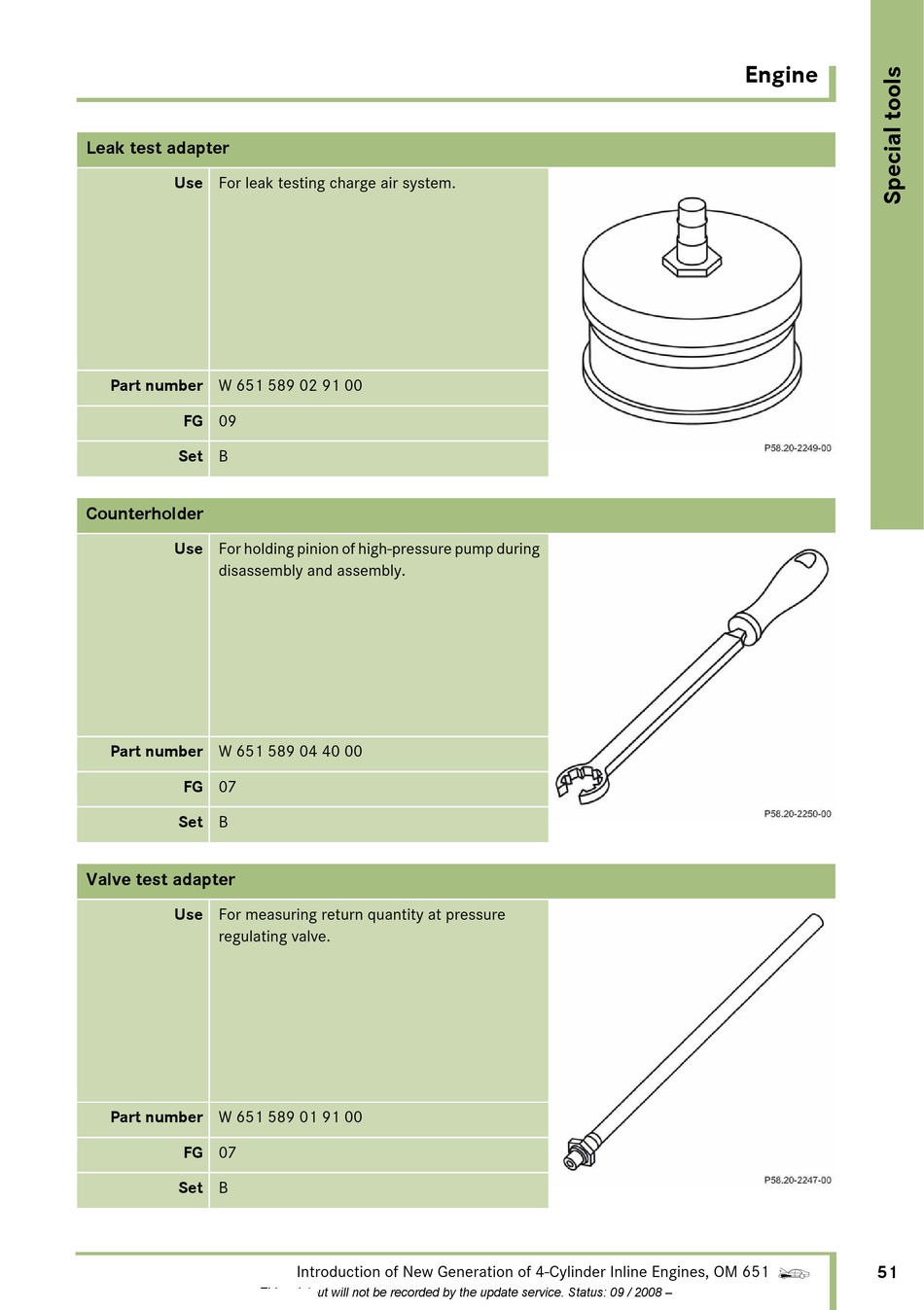

Leak test adapter
Use For leak testing charge air system.
Part number W 651 589 02 91 00
FG 09
Set B
Counterholder
Use For holding pinion of high-pressure pump during
disassembly and assembly.
Part number W 651 589 04 40 00
FG 07
Set B
Valve test adapter
Use For measuring return quantity at pressure
regulating valve.
Part number W 651 589 01 91 00
FG 07
Set B
– This printout will not be recorded by the update service. Status: 09 / 2008 –
Introduction of New Generation of 4-Cylinder Inline Engines, OM 651
Engine
51
