SPECIFICATION
This instrument will meet the electrical characteristics listed under Performance Requirement in Table 1-1, following com-
plete calibration . The following electrical characteristics apply over an ambient temperature range of OOC to +500C, except
as otherwise indicated. Warmup time for given accuracy is 20 minutes.

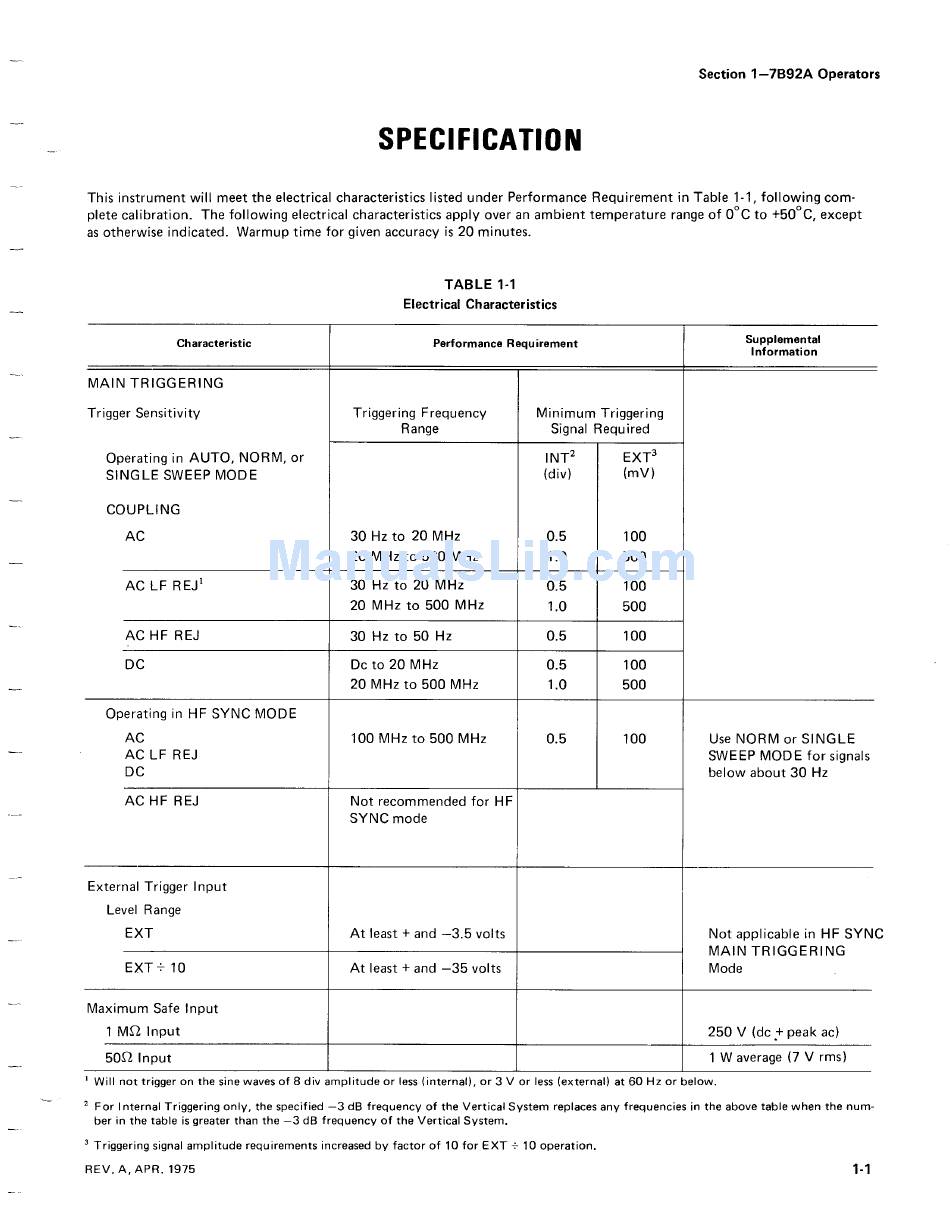

TABLE 1-1
Electrical Characteristics
'
Will not trigger on the sine waves of 8 div amplitude or less (internal), or 3 V or less (external) at 60 Hz or below.
Section 1-7B92A Operators
z For Internal Triggering only, the specified -3 dB frequency of the Vertical System replaces any frequencies in the above table when the num-
ber in the table is greater than the -3 dB frequency of the Vertical System .
s Triggering signal amplitude requirements increased by factor of 10 for EXT _ 10 operation.
REV. A, APR . 1975
Characteristic Performance Requirement
Supplemental
Information
MAIN TRIGGERING
Trigger Sensitivity Triggering Frequency Minimum Triggering
Range Signal Required
Operating in AUTO, NORM, or
INT2 EXT3
SINGLE SWEEP MODE
(div) (mV)
COUPLING
AC 30 Hz to 20 MHz 0.5 100
20 MHz to 500 MHz 1 .0 500
AC LF REJ' 30 Hz to 20 MHz 0.5 100
20 MHz to 500 MHz 1 .0
500
AC H F REJ 30 Hz to 50 H z
0.5 100
DC Dc to 20 MHz 0.5 100
20 MHz to 500 MHz
1 .0 500
Operating in HF SYNC MODE
AC
100 MHz to 500 MHz 0.5 100 Use NORM or SINGLE
AC LF REJ
SWEEP MODE for signals
DC below about 30 Hz
AC HF REJ Not recommended for HF
SYNC mode
External Trigger Input
Level Range
EXT
At least + and -3 .5 volts
Not applicable in HF SYN(
MAIN TRIGGERING
EXT - 10
At least + and -35 volts
Mode
Maximum Safe Input
1 M52 Input
250 V (dc + peak ac)
5052 Input
1 W average (7 V rms)
