INCANTO

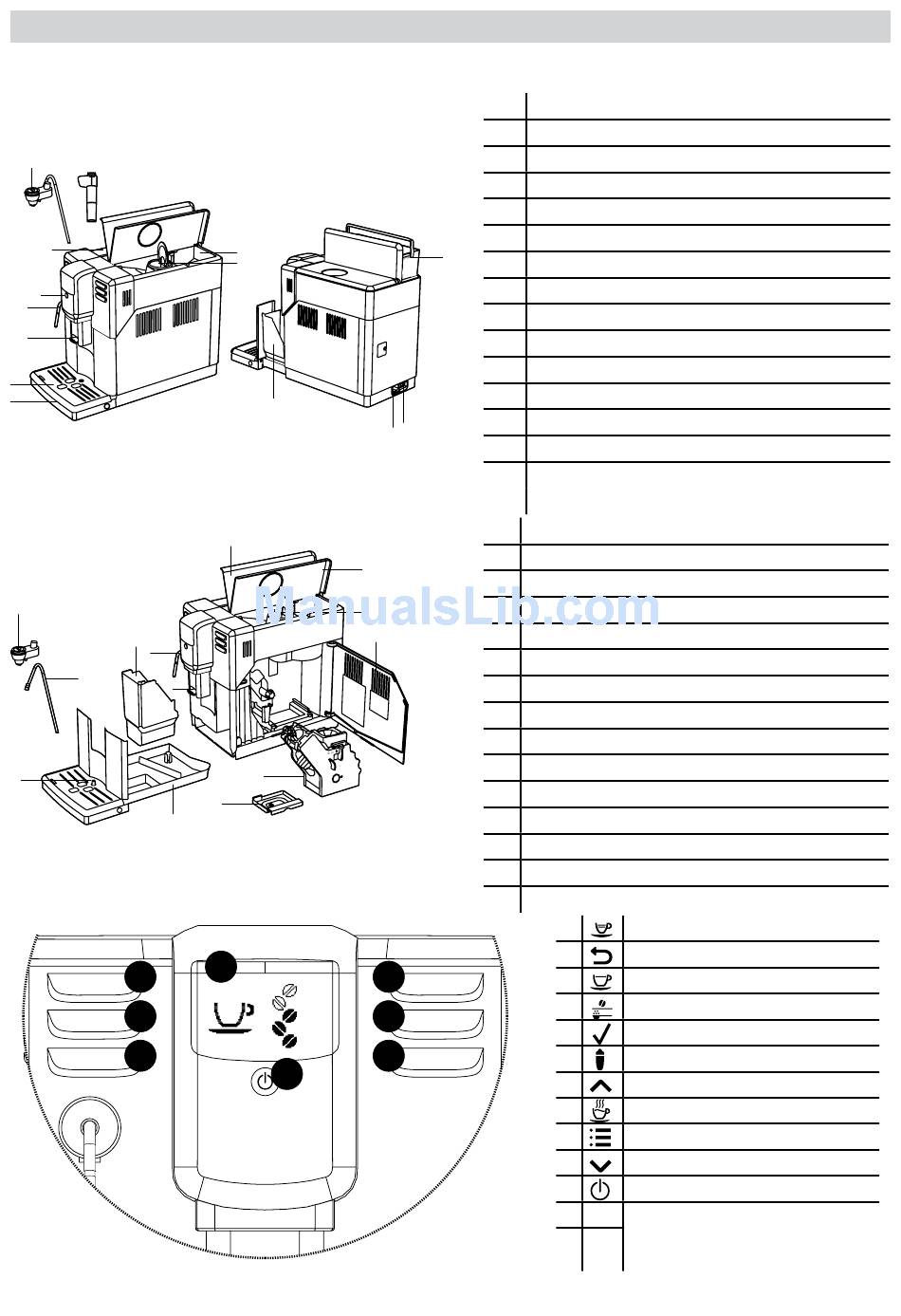

1.6.2. External machine parts Incanto AMF CMF

Main components
A
13
B
13
2
1
12
11
10
9
Main removable parts
12
11
9
13
7
10
8
1
ESPRESSO
2
ESPRESSO LUNGO
3
AROMA STRENGTH
3
4
8
7
1
2
3
4
6
5
8
4
5
6
7
1 STAND-BY button
2 Water tank seat
3 Coffee bean hopper
4 Pre-ground coffee compartment
5 Removable water tank
6 Main switch
5
I. ON
0. OFF
7 Power cord socket
8 Coffee grounds drawer
9 Drip tray
10 Drip tray grill
6
11 Coffee dispensing spout
12 Steam/hot water dispensing spout
13A Automatic milk frother (AMF)
13B
Classic milk frother (CMF)
1 Water tank lid
2 Coffee bean hopper lid
3 Pre-ground coffee compartment lid
4 Service door
5 Coffee residues drawer
6 Brew group
7 Coffee dispensing spout
8 Drip tray
9 Coffee grounds drawer
10 'Drip tray full' indicator
11 Steam/hot water dispensing spout
Steam wand (fixed)
Rubber grip
12 Automatic milk frother top
13 Milk frother suction tube
1
2
MILK FROTH
3
HOT WATER
4
MENU
5
6
7
8
01 INTRODUCTION
ESPRESSO button
ESC button
ESPRESSO LUNGO button
AROMA STRENGTH button
OK button
MILK FROTH button
UP button
HOT WATER button
MENU button
DOWN button
STAND-BY button
Display
In the example:
Main menu; ready for brewing
6/7
