Page 1 Simple Media Platform User’s Manual V1.01-N...
Page 2: About This Manual
About This Manual This manual describes the installation, setup and operation of this equipment in details. Please read it carefully to make sure you can operate the multiplexer correctly. Important Avoid personal injury and product damage! Do not proceed beyond any symbol until you fully understand the indicated conditions.
Page 3: Safety Instructions
Safety Instructions This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Electric Shock Hazard This equipment meets applicable safety standards.
Page 4 instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Only use attachments/accessories specified by the manufacturer.
Page 5: Installation Requirements
Installation Site When selecting the installation site, comply with the following: Protective Ground - The protective ground lead of the building's electrical installation should comply with national and local requirements. Environmental Condition - The installation site should be dry, clean, and ventilated. Do not use this equipment where it could be at risk of contact with water.
Page 6 AC Power This product requires short-circuit (overcurrent) protection to be provided as part of the building installation. Install only in accordance with national and local wiring regulations. The outlet must be near this equipment and must be easily accessible. Connect this equipment only to the power sources that are identified on the equipment-rating label normally located close to the power inlet connector(s).
Page 7: Electrostatic Discharge
General Servicing Precautions WARNING: Avoid electric shock! Opening or removing this equipment's cover may expose you to dangerous voltages. Be aware of the following general precautions and guidelines: Wristwatch and Jewelry - For personal safety and to avoid damage of this equipment during service and repair, do not wear electrically conducting objects such as a wristwatch or jewelry.
Page 8: Table Of Contents
Contents CHAPTER1 OVERVIEW ......................13 1.1 G ......................... 13 ENERAL 1.2 F ........................14 RONT ANEL 1.3 R ........................14 ANEL 1.4 I I/O M ................15 NTRODUCTION TO ODULE 1.4.1 DVB-S/S2 module ....................16 1.4.2 DVB-C module ......................17 1.4.3 DVB-T / ISDB-T Module ..................
Page 9: Table Of Contents
3.1.1 Assigning IP Addresses ................... 36 3.2.2 NMS Introduction ..................... 37 3.1.3 Basic Parameters Setting Introduction ..............49 3.1.4 Parameters Setting of the Sub-module ..............61 3.1.5 Program Input and Output Operation ..............109 3.1.6 Receiving Signal Auto- Backup Function ..............136 3.1.7 Configuration importation and exportation ............139 3.2 O ................
Page 10: Chapter1 Overview
Chapter1 Overview 1.1 General The device is a new generation integrated media platform with powerful media processing capability (4Gigabit data). Focused on the growing small and compound application requirement, it is architected to house three modules of various functional options to perform almost all the critical media application in a 1U chassis, including receiving, decoding, encoding, transcoding, scrambling and modulation.

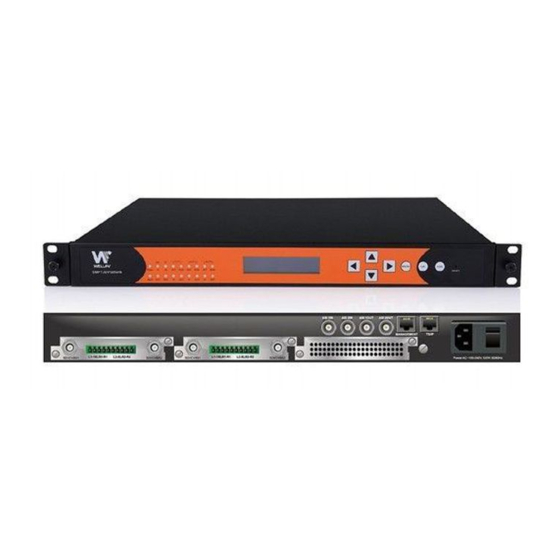

Page 11: Front Panel
H.264 SD/HD HDMI encoder module: two channels encoding concurrently H.264 SD/HD SDI/HDMI decoder module: two channels decoding concurrently 1.2 Front Panel 1. LED indicator: Indicate the status of the mother board and modules. Green and flashing: module is under initiation Green: normal Red and flashing: initiation fails Red: error detected...
Page 12: I Ntroduction To E Ach I/O M Odule
6.Power supply interface 7.Switch 1.4 Introduction to Each I/O Module The equipment fully incorporates the modular concept with built around a 1 RU high housing. The flexible modular concept ensures really easy system application switch and capacity upgrades. The following module is available: DVB-S/S2 module DVB-C module DVB-T module...
Page 13: Dvb-S/S2 Module
1.4.1 DVB-S/S2 module The DVB-S/S2 module is equipped with 4 RF interface ports. Each RF interface can be connected to one single LNB cable of a dish and receive all the programs transmitted on a satellite transponder. Up to 3 DVB-S/S2 modules can be installed on one unit, which means that one unit can support up to 12 DVB-S/S2 input signals (12 transponders).
Page 14: Dvb-C Module
1.4.2 DVB-C module Similar to DVB-S/S2 module, this module is for receiving DVB-C signals, and each module can support up to 4 DVB-C signal receiving and loop out. One unit supports to install a max of 3 DVB-C modules. Description Specification 2 x input (each handles two RF input signal) Inputs...
Page 15: Dvb-T / Isdb-T Module
1.4.3 DVB-T / ISDB-T Module Similar to DVB-S/S2 module, this module is for receiving DVB-T/ISDB-T signals, and each module can support up to 4 DVB-T/ISDB-T signal receiving and loop out. One unit supports to install a max of 3 DVB-T/ISDB-T modules. Description Specification Inputs...
Page 16: Gbe Ip Module
1.4.4 GbE IP module A GbE Interface module is equipped with 2 RJ45 connectors and 2 SFP connectors. To protect video services transported over IP networks from impairments caused by network jitter, IP packet loss, or out-of-order IP packets, a GbE Interface module with FEC option based on Pro-MPEG COP3 is provided.
Page 17: Ci Module
1.4.5 CI module The CI module is with 2 independent common interface slots, which supports multi-channel descrambling by inserting different CAM modules. Description Specification Connector PCMCIA Dual CI slots CA module Multicrypt / Simulcrypt, Hot Plug Conax, Irdeto, Viaccess, Nagravision, CAS Support Novel-Super TV, CTI, DVCrypt &...
Page 18: Asi I/O Module
1.4.6 ASI I/O module The ASI module is equipped with 4 BNC-type ASI interface ports, which can individually be configured as either ASI input port or ASI output port using the management software of the device. All ASI interface ports support Multiple Program Transport Streams (MPTS) as well as Single Program Transport Streams (SPTS) according to ISO/IEC 13818.
Page 19: H.264 Sd&Hd Sdi/Av Encoder Module
1.4.7 H.264 SD&HD SDI/AV Encoder module The H.264 SD&HD encoder module supports two A/V and SD/HD SDI input streams encoding simultaneously. Due to the highly encoding efficiency of the H.264 technology, this encoder module enables the operator to encode the analog and SDI streams at low bit rate for transmission.
Page 20: H.264 Sd&Hd Hdmi Encoder Module
1.4.8 H.264 SD&HD HDMI Encoder module The H.264 SD&HD HDMI encoder module supports two HDMI input streams encoding simultaneously. Due to the highly encoding efficiency of the H.264 technology, this encoder module enables the operator to encode the analog and SDI streams at very low bit rate for transmission.
Page 21: Mpeg2 Sd Sdi/Av Encoder Module
1.4.9 MPEG2 SD SDI/AV Encoder module The MPEG-2 SD encoder module supports two A/V or SDI input streams encoding simultaneously. It’s suitable for MPEG-2 broadcasting network operator. Description Specification 2×SDI, BNC 75Ω / 2×CVBS, 2×Audio inputs Inputs (balanced and unbalanced) Video Processing Video Format MPEG-2 4:2:0 MP@ML...
Page 22: Mpeg2 Sd Av Encoder Module
1.4.10 MPEG2 SD AV Encoder module The MPEG-2 SD encoder module supports two analogue Audio/Video input streams encoding simultaneously. It’s suitable for MPEG-2 broadcasting network operator. Description Specification 2×CVBS, 2×Audio inputs (balanced Inputs unbalanced) Video Processing Video Format MPEG-2 4:2:0 MP@ML Image Format PAL and NTSC Definition...
Page 23: Dvb Scrambler Module
1.4.11 DVB Scrambler module A DVB scrambler module is provided with 1 Gigabit Ethernet interface which is used to communicate with CAS server. The module is capable of a total throughput of 1 Gbps in and 1 Gbps out. It is fully compliant with DVB Simulcrypt standard and supports up to 4 different CAS Simulcrypt application.
Page 24: Qam/Cofdm Module
1.4.12 QAM/COFDM module This modulation module supports either 8 QAM channels or 4 COFDM channels modulation output depending on preloaded software. With up to 5 modules on a single unit, it supports up to 40 QAM frequencies or 20 COFDM frequencies outputs. Description Specification QAM Module...
Page 25: Tc2 & Tc4 Transcoder Module
1.4.13 TC2 & TC4 Transcoder module The transcoder module is capable of transforming two MPEG-4/H.264 programs to MPEG-2 format in high quality simultaneously. It supports the transformation of two internal programs within the unit, for example, the programs received from DVB-S2 module or ASI module. MPEG-4 to MEPG-2 Transcoder Module (TC2) Description Specification...
Page 26 Audio mode Stereo, joint stereo, dual channel, single channel MPEG-2 to MEPG-4 Transcoder Module (TC4) Description Specification Video Processing 2 channels (default) Processing Channel Quantity 4 channels (optional) Video Output Format MPEG-4 / H.264-AVC HP@L4 1920x1080 (60p/59.94p/30p/24p/60i/59.94i/50i); 1280x720 (60p/59.94p/50p); Definition 720x480 (60i);...
Page 27: Low Bitrate H.264/ Mpeg-2 Sd Encoder
1.4.14 Low Bitrate H.264/ MPEG-2 SD Encoder This Encoder supports to encode two Audio/ Video or SDI input streams, the encoding format include H.264 and MPEG-2 SD simultaneously. Due to the high encoding efficiency of the encoder chipset, this encoder module enables the operator to encode the analog and SDI streams at very low bitrate for transmission.
Page 28: Low Bitrate H.264/ Mpeg-2 Sd Transcoder
1.4.15 Low Bitrate H.264/ MPEG-2 SD Transcoder The Low bit rate transcoder module is capable of transcoding four internal programs into MPEG-2 or MPEG-4 AVC/H.264 format in high quality simultaneously. Due to the high efficient processing chipset, this transcoder can transcode the programs at a very low bit rate for operator to transmitting in the networks.
Page 29: Chapter2 Installation
Chapter2 Installation 2.1 Introduction This chapter contains the information for technicians installing the equipment. WARNING: Allow only authorized and qualified service personnel to install, operate, maintain, and service this product. Otherwise, personal injury or equipment damage may occur. 2.2 Installation Preparation Before You Start Make sure that the chassis is in good condition and that you have the tools and equipment needed.
Page 30: Rack Mounting
install the equipment in an environment that fits for the operation requirements. WARNING: Avoid damage to the equipment. Your warranty is void if you operate this product above the maximum specified operating temperature. We recommend the following activities to moderate the operating temperature: Mount ventilation profiles at the bottom and top of the 19-inch equipment rack.
Page 31: C Onnecting The Ac P Ower
1. Unpack the device. 2. Select a 1 RU high location in the rack. 3. If the rack holes are not threaded, install a cage nut in the top and bottom holes of the selected 1 RU space. 4. Mount a left and right support bracket in the 19-inch rack. 5.
Page 32 Software (NMS). Please connect the management port on the rear panel with the monitoring computer in advance Required Cable Use Category 5 (CAT5E, minimum) STP Ethernet cable for connecting the management ports. Switch...
Page 33: Chapter3 Operation Guide
Chapter3 Operation Guide 3.1 Operation through Network Management Software 3.1.1 Assigning IP Addresses The equipment is equipped with a 10/100Base-T port for communication with a remote control and monitoring PC. When the equipment leaves our factory, the Ethernet ports is configured with the following parameter settings: Parameter Default Setting...
Page 34: Nms Introduction
Media Platform Management PC IP Address 192.168.1.16 192.168.1.28 Gateway 192.168.1.1 192.168.1.1 Sub Mask 255.255.255.0 255.255.255.0 Note: to Change a parameter, you can first press OK button, Then the parameter will be selected with a blinking short line under its first character (or number), then you can use UP and DOWN button to change the parameter’s value as you desired, press OK button to take effect.
Page 35 For first time running the NMS, if the system firewall is activated, the connection attempt of the NMS will be blocked by the firewall and a security alert dialog box will pop up to notify you. In order to properly use the NMS, some settings need to be done in the windows firewall otherwise some features of the NMS will be blocked by the firewall.
Page 36 Turning off Windows Firewall might make your computer (and your network, if you have one) more vulnerable to damage from worms or hackers. Method 2: Allow a program to communicate through Windows Firewall (recommend) Operation steps: Open Windows Firewall by clicking the Start button , clicking Control Panel, clicking Security, and then clicking Windows Firewall.
Page 37 Restart the NMS, and the NMS can now communicate properly with the machine. Regarding other Firewall and antivirus software settings, it is similar with the settings of Windows Firewall. For first time log on, User Name and Password are required. Default User Name Step 2: and Password are “admin”.
Page 38 After successful log on, the following screen will display (PIC-3.2-2): The equipment you operate on will appear in the left white panel as format: “Device Name@ IP address” PIC-3.2-2 Note: If the equipment is not shown on the list, please try to Reset the Ethernet through the navigate key on the front panel to active the IP connection.
Page 39 The NMS main interface can be divided into four areas according to its functionality. (1) Toolbar: It includes shortcut to change password and save settings etc. (2) Equipment list: If more than one piece of equipment is connected to the NMS, the equipment will be listed in this area by its IP address.
Page 40 3.1.2.1 Toolbar (1) Password: select to change the login password. (2) AutoLogin: to choose whether auto log on the NMS (without inputting password) next time. (3) Re-Connect: click it to re-connect NMS to the equipment when the connection is lost and resume again due to any reason (4) Exit: exit the NMS.
Page 41 Add new device to the NMS. After selecting this button, a “Add device” window shows ·Device Type: Choose “equipment name@IP address” in the list. ·Device Name: Uneditable ·IP Address: type the target add device IP address ·Port: must be “30” Press “OK”...
Page 42 3.1.2.2 Equipment List In this section, it shows the connection status of all the equipments that the NMS scans in the network, and user can do “Connecting the Device”, “Add Device”, “Delete Device” operation. If this icon is in Green, it means the connection of the equipment and PC has been successfully set up.
Page 43 Connection set-up completes. (5) Add device: In case the equipment is not automatically detected by the NMS, user can manually add the device to the NMS. Follow the below procedures to add a device: Move the cursor to the ② Equipment List area. Use the mouse right button to click on the blank area.
Page 44 ·Port: must be “30” Press “OK” and a new device will be added to the device list. (6) Edit device: to edit the existing device connection parameters. Operation: Select a device, click the mouse right button. In the pop-up menu, select “Edit Device”, you can change the IP address here.
Page 45 3.1.2.3 Parameter setting and configuration area This is the main operation and configuration interface of the NMS. All the parameters setting and control on the equipment and each module is conducted here. Please refer to Chapter 3.1.3 for the detailed operation instruction. 3.1.2.4 Event information window This area shows the system event information including: current connected device name, device type, IP address, connection port, online/off-line status, and event time.
Page 46: Basic Parameters Setting Introduction
3.1.3 Basic Parameters Setting Introduction The Parameters Setting and System Application area includes the operation on the mainboard and sub-module. Setting and Configuration on the Mainboard The mainboard configuration includes 6 tabs: “Status”, “Program Info”, “System”, “License”, “Upgrade” and “Log”. Status: by selecting this item the NMS displays the current system operation data status.
Page 47 Blue: the effective input bit rate; Yellow: the total output bit rate; Green: the effective output bit rate; Red: alarm indicator, it means the actual output bit rate (it’s proportional to the amount of the programs you transfer from input port to output port in ‘Program Info’) is more than the output bit rate of some channel you set in sub-board 2.
Page 48 Program Info: this menu is to configure the input and output program of the equipment. ① Input Program Configuration ② Output Program Configuration ③ Operation Buttons ① Input Program Configuration: the “Input Program Configuration” is on the left side of the “Program Info”...
Page 49 Board1~6 represents the corresponding slots of the equipment. If the slot is inserted with a card module, the corresponding Board No. will be displayed on the “Input Program Configuration” window, and the name of the inserted module will be displayed after the Board No. For empty slot, no Board No.
Page 50 ② Output Program Configuration: In the “Output Program Configuration” window, it shows the inserted module which can be set to transmit output stream. These kinds of modules include the Gigabit IP module, ASI module, 8-QAM and 4-OFDM module, etc. Settings on the Output Program please refer to Chapter 3.1.5 of this manual. ③...
Page 51 System: the “System” setting provides the system information of the equipment mainboard and inserted modules, including the mainboard IP address, Subnet Mask, Gateway, MAC address and hardware/software version of each module. TRAP IP ADDRESS: This IP should be the same as the monitoring server’s IP. After correct setup, the IRD will pass the alarming and running information to the monitoring server.
Page 52 ClearPowerAlarm: when one of two power supply modules is removed or failed, the equipment will give sound alarm. Click this button to remove the alarm if needed. Reset: click it when a module works abnormal. Reboot: restart the whole equipment completely. Factory setting: get all parameter settings of main board and each module back to default setting.
Page 53 Click “ExportLicense” button to save the license file of the selected module, e.g. to export the old license as “license backup.license” Send the license file “license backup.license” to our company for an updated license. Select “UpgradeLicense” button to import the new license file from our company.
Page 54 License update succeeds. Upgrade: In the “Upgrade” tab, user can upgrade the software version of the mainboard and its module components. The upgrade usually is either to fix any bug or implement new features. Improper upgrade operation might damage the equipment. Contact your service provider before the upgrade.
Page 55 Click “Select File” button to open the upgrade files; After selecting the upgrade file, the upgrade file will be listed in the “Optional” window. Click the button to transfer the upgrade file from the left “Optional” window to the right “Selected” window.
Page 56 Note: 1. For some sub-modules upgrade, the upgrade files will be automatically put into the “Selected” window after selecting the file. 2. To unselect the upgrade file, double click the left mouse button on the selected file to remove it from the selected list. Click the “Start”...
Page 57 A notifying window shows up after successful upgrade. Log: In the “Log” tab, user can export the log file from storage chipset of the equipment. The log file includes running information which is helpful for our engineer to analyze issue if needed. Enter “Log”...
Page 58: Parameters Setting Of The Sub-Module
3.1.4 Parameters Setting of the Sub-module In accordance with the 5 modular slots of the equipment, there are total 5 module parameters setting tabs in the configuration menu. Each tab represents the corresponding slot of the equipment and displays the name of the inserted module. If the slot is empty, then the tab shows “Empty”...
Page 59 3.1.4.1 DVB-C Module The DVB-C module supports receiving programs compliant with DVB-C standard from 4 different frequencies simultaneously. The configuration page of this module includes two parts: Setting: set the parameters for receiving the input signal. Status: indicates the basic parameter and locking status of input signal. Setting In order to receive the input signal successfully, it’s important to set the correct parameters in the setting menu.
Page 60 KHz. Symbol Rate Symbol rate of the input channel. The unit is in KS/s. QAM Mode Select the actual QAM mode of the input channel. Note: the input signals of Port 1&2 are from the ‘RF-IN 1/2’ port of tuner 1, and the input signals of Port 3&4 are from the ‘RF-IN 3/4’...
Page 61 Indicates the bit rate of valid packet (excluding the null packet). Port#(E) The unit is Mbps. Port Indicates which input port the channel comes from. Indicates whether the input signal is LOCK (green) or UNLOCK Signal (red). Signal Strength Indicates the strength of input signal Signal Quality Indicates the quality of input signal Indicates the real-time bit error rate.
Page 62 Below are the key parameters: Parameters Description Port Indicates which input port the channels comes from Input the frequency of being used by the content provider which Frequency you want to receive programs. The unit is MHz Bandwidth depends upon the current standards on different Bandwidth countries, but it is variable at 6 MHz, 7 MHz, and 8MHz.
Page 63 Indicates the real-time bit error rate. 3.1.4.3 DVB-S/S2 Module The DVB-S/S2 module supports receiving programs compliant with DVB-S or DVB-S2 standard from 4 different frequencies (transponders) simultaneously. The configuration page of this module includes two parts: The configuration page of this module includes two parts: Status: indicates the basic parameter and locking status of input signal.
Page 64 Horizontal). Select the band of LNB you want to use, including Auto, Forced Band Selection Low and Forced High Type Select the actual type of your LNB, Single Band or Dual Band LO Low Frequency The low frequency of LNB. The unit is MHz LO High Frequency The high frequency of LNB.
Page 65 Once the signal turns GREEN, it means that it is LOCK. As a result, a data will appear on the status monitoring. Otherwise, the signal will turn to which means No Signal. Note: If there’s no signal received, please do as follows: •...
Page 66 The configuration page of this module includes two parts: Setting: set the parameters for receiving the input signal. Status: indicates the basic parameter and locking status of input signal. Setting Below are the key parameters: Parameters Description Type Set each ASI port to be Input or Output. PacketSize Set 188 or 204 packet size for outputs.
Page 67 Introduction to the parameters of status: Parameters Description Indicates the total bit rate of input signal, including the valid Port#(T) and null packet. The unit is Mbps Indicates the bit rate of valid packet (excluding the null Port#(E) packet). The unit is Mbps. OTE: •...
Page 68 IP Module Setting Interface By selecting the ‘IP’ tab on the NMS operation interface, the IP module setting interface will be displayed. The settings on the IP module include the settings on the ‘Input’, ‘Output’ and ‘Setup. ‘Setup’ Setting of the IP I/O Module In the ‘Setup’...
Page 69 Parameters Description Set IP address of IP module. The IP address of IP module is IP Address used for communication with CAS server that should be in the same IP section with IP address of the equipment Subnet Mask Set Subnet Mark of the IP module Gateway Set Gateway of the IP module MAC Address...
Page 70 Note: this parameter setting applies to all channels. Channel configuration EnableChannel Enable or disable corresponding input channel Set the IP address of the multicast/unicast that are going to SourceIPAddress receive SourcePort Set port of multicast/unicast Protocol Select UDP/RTP for multicast/unicast If the output IP stream quality looks not as good as the input ColPortMatching stream, user can select to ‘Enable’...
Page 71 configure its transmitting parameters. On: enable the IP receiving function. Enable Off: disable the IP receiving function. Note: this parameter setting applies to all channels. Channel configuration EnableChannel Enable or disable corresponding output channel SourcePort Set port of multicast/unicast DestIPAddress Set IP address of the multicast/unicast.
Page 72 Parameters Description Indicates the total bit rate of input signal, including the valid #(T) and null packet. The unit is Mbps Indicates the bit rate of valid packet (excluding the null #(E) packet). The unit is Mbps. NOTE: • Once the IP module is properly configured, a status data will automatically appear.
Page 73 The configuration page of this module includes two parts: Setting: set the parameters for receiving the input signal. Status: indicates the basic parameter and locking status of input signal. QAM Module Parameters Setting Below are key parameters: Parameters Description Bandwidth Select the bandwidth of output RF, 6M/7M/8M are available.
Page 74 Note: for the RF frequencies of port 2~8, they will be set automatically by the NMS base on the frequency of port 1 and the ‘Bandwidth’ setting. Set modulation type of each modulators port. The Mode modulation mode can be QAM16, QAM32, QAM64, QAM128, QAM256.
Page 75 4-COFDM Module Parameter Setting Below are the key parameters: Parameters Description Bandwidth Select the bandwidth of output RF, 6M/7M/8M are available. Set RF output signal level in dBu, the value RF Level is RF Level 90dBuV~112dBuV. SpectrumShaping Enable or disable it according to the requirement of receiver. Enable Switch ‘Enable’...
Page 76 Introduction to the parameters of status: Parameters Description Indicates the total bit rate of input signal, including the valid TS#(T) and null packet. The unit is Mbps Indicates the bit rate of valid packet (excluding the null TS#(E) packet). The unit is Mbps. RF Level status Indicates if the physical RF port works (green) or not (red) Note:...
Page 77 The configuration page of this module includes two parts: Setting: set the parameters for receiving the input signal. Status: indicates the basic parameter and locking status of input signal. Setting In the CI module NMS interface, there are four items for user to select/configure. Only after the parameters are correctly set can the CI module work normally.
Page 78 effect when user selects the CBR mode. ！Please set a bigger bitrate value than the input TS rate and reserve a bit buffer. Note: for the descrambling operation on a program, please refer to “Descramble Operation”, page-51 of this manual for the details. After setting all the parameters, you should press ‘Set’...
Page 79 Below are the key parameters: Parameters Description CAM Port Indicates which CAM the user is operating. Indicates if the CAM module is detected (Inserted) or not CAM Insert Status (Null) Indicates if the initialization of CAM module is successful CAMInitStatus (Good) or failed (No good) CAM Narr Indicates the CAM module name.
Page 80 The configuration page of this module includes two parts: Setting: set the parameters for receiving the input signal. Status: indicates the basic parameter and locking status of input signal. Setting Below are the key parameters: Parameters Description Channel Indicates which input port the channel comes from. Video Source To select the correct video source for the input.
Page 81 The total encode rate of video and audio contents. Encode Rate Calculated automatically by the software. GOP Struct To select GOP structure. Video PID To edit the video PID. Audio PID To edit the audio PID. PCR PID To edit the PCR PID. PMT PID To edit the PMT PID.
Page 82 3.1.4.9 SD MPEG2 SDI/AV Encoder Module The 2-SD MPEG2 SDI/AV Encoder Module supports encoding 2 SDI channels or 2 AV channels simultaneously. The configuration page of this module includes two parts: Setting: set the parameters for receiving the input signal. Status: indicates the basic parameter and locking status of input signal.
Page 83 Audio Encode Rate To choose the encoding bitrate for the audio. The total encode rate of video and audio contents. Encode Rate Calculated automatically by the software. Audio Mode To select the audio mode GOP Struct To select GOP structure. Video PID To edit the video PID.
Page 84 3.1.4.10 SD MPEG2 AV Encoder Module The 2-SD MPEG2 AV Encoder Module supports encoding 2 AV channels simultaneously. The configuration page of this module includes two parts: Setting: set the parameters for receiving the input signal. Status: indicates the basic parameter and locking status of input signal. Setting Below are the key parameters: Parameters...
Page 85 PCR PID To edit the PCR PID. Video PID To edit the video PID. Audio PID To edit the audio PID. PMT PID To edit the PMT PID. Provider Name To edit the program provider name. Program Name To edit the program name. Service ID Default value of the service ID.
Page 86 3.1.4.11 HD H.264 HDMI Encoder Module The HD H.264 HDMI Encoder Module supports encoding 2 HDMI channels simultaneously. The configuration page of this module includes two parts: Setting: set the parameters for receiving the input signal. Status: indicates the basic parameter and locking status of input signal. Setting Below are the key parameters: Parameters...
Page 87 Audio PID To edit the audio PID. PCR PID To edit the PCR PID. PMT PID To edit the PMT PID. Service ID To edit the service ID. Transport Stream ID To edit the transport stream ID. Provider Name To edit the program provider name. Program Name To edit the program name.
Page 88 3.1.4.12 DVB Scrambler Module Insert the scrambler module to an empty slot. After successful initialization, log on NMS and select “Scrambler” tab to enter the scrambler configuration window: Below are the key parameters: Parameters Description the scrambler module supports up to 4 different CAS Simulcrypt. CAChannel User can configure different settings for each CAS system by selecting different “CAChannel”...
Page 89 EMMGTCPPort server. Otherwise connection cannot be set up between the CAS server and the scrambler module. EMMGUDPPort EMMSendType EMMPID EMMBandwidth EMMChannelID EMMStreamID EMMDataID To ensure the scrambler module can set up connection successfully with the CAS server, user shall configure the correct parameters on the scrambler module IP Setting button: Click this button to set an IP address for the scrambler module per the network environment.
Page 90 After inputting the correct parameters, the scrambler module shall connect with the CAS server. Add the AC Data for each program of a TS stream Click “Add” button on the NMS In the “Add ECM” window, input the ACData (Hex), and click “Add” to insert the AC Data.
Page 91 After finishing all the parameters setting and the AC Data insertion, click “Set” button on the NMS to apply for the settings. After configuring on the scrambler module setting window, user shall operate in the “Program Info” tab to specify which program to be scrambled and transfer to the transmission module (QAM/IP/ASI) for output.
Page 92 Select the program which is to be scrambled and transfer it from the signal source to the scrambler module at “Output Program Info”. (To know how to transfer programs, please refer to chapter 3.1.5) In below example picture, program “FujianTV1” is selected and is transferred from DVB-S2 module in “Input Program Info”...
Page 93 In the “Scrambler Setting” window, select an AC Data we previously input and click “OK” to bond with the selected program. After the program is scrambled, the button indicators of the program name will turn to black color.
Page 94 The scrambling program stream will be automatically transferred to the Scrambler module in the “Input Program Info” window for transmission. Select the program we just scrambled in the Scrambler module in “Input Program Info” window, and transfer it to any transmission module.
Page 95 and cannot be changed by the user. Introduction to the parameters of status: Parameters Description 1(I)~12(I) the input bitrate of channel1~channel12 1(O)~12(O) the output bitrate of channel1~channel12 the bitrate of ECM generated by ECMG the bitrate of EMM generated by EMMG The communication status between ECMG and Scrambler.
Page 96 Setting: set the parameters for receiving the input signal. Status: indicates the basic parameter and locking status of input signal. Setting Parameters Description The channel quantity represents the supported max. transcoding channels. For 2-channel transcoding module, channel1~channel2 are available in this option, Channel while channel1~channel4 are available for 4-channel module.
Page 97 CBR: the encoded program bitrate is a constant value. VBR: the encoded program bitrate can be variable according to the input program content Set the encoded video bitrate, range from 1.0 to Video Encode Rate 20.0Mpbs Set the encoded audio bitrate, range from 64 to Audio Encode Rate 384Kpbs Total bitrate automatically by the software which is not...
Page 98 Introduction to the parameters of status: Parameters Description Indicates the total bit rate of input signal, including the valid Port#(T) and null packet. The unit is Mbps Indicates the bit rate of valid packet (excluding the null Port#(E) packet). The unit is Mbps. FirmwareIniStatus the status indicates if the firmware is initiated successfully Note:（1）...
Page 99 Setting Parameters Description The channel quantity represents the supported max. transcoding channels. For 2-channel transcoding module, channel1~channel2 are available in this option, while Channel channel1~channel4 are available for 4-channel module. Each channel transcoding parameters can be set in separated pages when selecting different channel. To select output channel audio mode.
Page 100 output. To select the video standard. Options as available for: Video Standard NTSC/PAL. GOP Size Set the GOP size, range from 0~255 Set the GOP struct, options: GOP Sruct IBBPBBPBB/IPPPPPPPP/IIIIIIIIII/IBBPBBPBB To set the output video resolution the same as input OutputVideoResolution video resolution.
Page 101 3.2.4.15 SD H.264/MPEG-2 SDI/AV Encoder Module (Premium) The 2-SD H.264 SDI/AV Encoder Module supports encoding 2 SDI channels or 2 AV channels in very low bit rate simultaneously. The configuration page of this module includes two parts: Setting: set the parameters for receiving the input signal. Status: indicates the basic parameter and locking status of input signal.
Page 102 Select encoding mode, Encode Mode available options include: CBR and VBR Video Max Encode Rate To set the upper limit of encode rate for VBR mode. Video Min Encode Rate To set the bottom limit of encode rate for VBR mode. Video Encode Rate To set the encode rate for CBR mode.
Page 103 Parameters Description Indicates the total bit rate of input signal, including the valid Port#(T) and null packet. The unit is Mbps Indicates the bit rate of valid packet (excluding the null Port#(E) packet). The unit is Mbps. Video Resolution the resolution of input video 3.2.4.16 Low Bitrate H.264/MPEG-2 SD Transcoder Module The low bitrate SD transcoder module supports transforming 2 HD or 4 SD channels to MPEG-2 or H.264 SD format in very low bit rate simultaneously.
Page 104 available options include: MPEG-1 Layer II and AAC Select encoding mode, Video Encode Mode available options include: CBR and VBR Video Max Encode Rate To set the upper limit of encode rate for VBR mode. Video Min Encode Rate To set the bottom limit of encode rate for VBR mode. Video Encode Rate To set the encode rate for CBR mode.
Page 105 Parameters Description Indicates the total bit rate of input signal, including Port#(T) the valid and null packet. The unit is Mbps Indicates the bit rate of valid packet (excluding the Port#(E) null packet). The unit is Mbps. Decoder1 Firmware Version Indicate the decoder module firmware version...
Page 106: Program Input And Output Operation
3.1.5 Program Input and Output Operation Note: the proper functionality of the equipment input/output depends on the correct settings of each inserted module. Please refer to Chapter 3.1.4 to set up the parameters of each module before taking the Input/Output setting of the equipment. Click “Program Info”...
Page 107 Name of the module The port number depends on the Physical interface of the module The TS number depends on the channel output capability of the module Operation Procedures Two kinds of operation are provided: 1) transfer the whole TS including all PIDs; 2) transfer programs one by one.
Page 108 2) Transfer programs one by one Select the module which you want to transmit the output stream. Select which TS (Channel) to output the stream, and then click the right mouse button to choose ‘Add TS’. Input the “Original Network ID” and “TS ID” for the channel, and click the “Add” button.
Page 109 The input “Original Network ID” and “TS ID” will be assigned to the selected output TS (channel). To change the “Original Network ID” and “TS ID”, use the left mouse button to click the TS (channel) name when it is being selected. Then the TS (channel) name will be in editable status.
Page 110 Click the button to set transfer of the selected TS from the “Input Program Info” to the “Output Program Info”. Follow the save operation steps, user can set the selected input stream to be transmitted at any assigned output TS (channel). Advanced Configuration Channel Name Edit To change the Channel Name, use the left mouse button to click the TS (channel)
Page 111 Select and change the TS (Channel) Name PID Edit Click the “+” symbol under the channel name, then all the elements of that channel will be expanded and displayed.
Page 112 All the elements of the channel are editable. The edit shall be compliant with the related regulation of DVB. Descramble Operation Note: 1. The descramble function needs the support of a CI descrambling module. 2. The inserted CAM should be able to support the CAS of the scrambling program. 3.
Page 114 • Note: To avoid any SI problem, it is recommended to use “Bypass” mode when transfer the program to CI module, following content will describe the operation: Right click on the TS in which there is (are) channels need to be decode, and select BypassTS, then the status icon besides the TS name will turn to yellow, and the programs in the TS is not abable to be selected seperately.
Page 115 To cancel the descrambling operation on a program, just use the right mouse button to click the descrambling program and select menu “Non-descramble”. After the program is scrambled, the button indicators of the program name will turn to black color. Back to the input program window, the descrambled programs have already been automatically transferred to the corresponding port of the CI module and waiting for setting to output.
Page 116 transmission modules (IP/QAM/ASI). Click “Set” button to apply all the settings at the final step. Operation of program descrambling finish.
Page 117 Data Insertion NIT Insertion 1. Connect the equipment through NMS, and complete the configuration on the output module. Here take 8QAM module as an example. The 8QAM 8TS output is set at frequencies 474, 482, 490, 498, 506, 514, 522 and 530, SR 6.875.
Page 118 2. Switch to “Program Info” tab to configure the output channels at each QAM channel. Here we output total 6 programs at 3 TS channels: CCTV-1, CCTV-2 and CCTV-7 at TS1; CCTV-11, CCTV-12 at TS2; CCTV-MUSIC at TS3 ...
Page 119 4. PSI/SI menu interface. 5. Select “NIT Actual”, and use mouse right button to click and select “Add NIT”. 6. Input “Network ID” and “Network Name” for the new NIT to distinguish with other NIT, and click “Ok”...
Page 120 7. Under the new added NIT table, find the “transport_stream” item and use mouse right click on it to select “Add NIT TS”. 8. Input the Network ID and the TS ID. The ID must be same as that set in the output TS channel.
Page 121 9. Under the new added “transport_stream”, find the item “transport_descriptor”, use mouse right button to select to add proper descriptor base on the actual situation. We select “Add Cable Descriptor” here because we use 8QAM module. 10.
Page 122 After input the descriptor, click “Add”, then user can expand the “transport_descriptor” menu to check whether the new added data correct or not. Then repeat steps 7~10 to add other frequencies to this NIT table. 11. After the configurations of the NIT, do remember to click “Set” and then “Save” button in the “Program Info”...
Page 123 LCN Insertion In telecommunications, a logical channel number (LCN), also known as virtual channel, is a channel designation which differs from that of the actual radio channel (or range of frequencies) on which the signal travels. The most common reason for a television station using a virtual channel is to minimize viewer confusion when a digital transmission is airing on a different channel from the one the station used in analog mode.
Page 124 2. Select TS1 channel and click mouse right button, then select “PSI/SI” to enter the “PSI/SI” menu. 3. Enter ‘NIT Actual→Transport _Streams’ and then select “transport_descriptor” with mouse right button and select “Add LCN Descriptor” option.
Page 125 In the displayed operation window: 1) Double click “Board5[8QAM(A/C)]-Port1-TS1” in “BoardTSList”. All programs within TS1 will be listed in “Programs”. 2) Double click a program, the service ID of this program will appear in column “service id”. Input the the LCN that designated for this program. 3) Keep “visible_service_flag”...
Page 126 4. To modify the LCN descriptor, right click “Local_channel_descriptor” and select “Modify LCN Descriptor” to go back to step3. Select “Delete” to delete LCN descriptor. 5. After the settings on all output TS channel, do remember to click “Set” and then “Save” button in the “Program Info”...
Page 127 OTA descriptor Insertion To do the OTA upgrade for STB, generally you need insert an OTA descriptor into the NIT under the central frequency in head-end equipments. 1. Right click the TS which you set as central frequency TS and click ‘PSI/SI’. 2.
Page 128 3. Input the Tag and OTA descriptor and click ‘Add’ BAT Insertion If you need insert the BAT table in some frequency, you can simply following the steps as below: 1. Right click the TS where you want to insert the BAT and click ‘PSI/SI’. 2.
Page 129 3. Right click ‘Transport Stream’ under ‘Bouquet Descriptor’ and click ‘Add Bouquet TS’. To delete the BAT, right click ‘Bouquet ID x’ and then click ‘Delete’. 4. Input the Original Network ID and TS ID.
Page 130 5. To add the service type for some program, right click ‘Transport Descriptor’ under ‘Transport stream id’ and then select ‘Add service list descriptor’. 6. Input service ID and select the service type from right part, and then click ‘Add’ to add the service type for this program.
Page 131 8. To add other private descriptor, right click ‘Transport Descriptor’ under ‘Transport stream id’ and then select ‘Add other descriptors’. Input the Tag and Data in Hexadecimal and click ‘Add’.
Page 132 SDT Descriptor Insertion To add the SDT descriptor, please go to ‘Program Info’ of the NMS. 1. Find the program you want to add the SDT descriptor in and click ‘+’ before ‘SDT Info’. Right click ‘SDT Descriptors’ and then click ‘Add Description’. 2.
Page 133: Receiving Signal Auto- Backup Function
3.1.6 Receiving Signal Auto- Backup Function The equipment supports auto-backup function for the receiving signals. Once the main receiving module breaks down, the backup module automatically takes over the signal receiving function to guarantee no signal lost happen in this case. This auto-backup function can be achieved on all equipments receiving module types, including DVB-S2 module, IP Input module and ASI module.
Page 134 Right click on the module name, and select “Main” or “Backup” for each module. As an example, here we set module in slot 2 as the “Main” module, and the one in slot 6 as the “Backup” module. After the setting, the modules will be marked with different color buttons in front of the module names for differentiation.
Page 135 Click “Set” button to apply for the settings as the last step.
Page 136: Configuration Importation And Exportation
3.1.7 Configuration importation and exportation The backup configuration files of equipments are very important for the operator in actual application. It can help operator to restore all previous configuration quickly in case that equipment loses configuration or you need replace the current equipment due to any reason, so that the equipment can continue operating with less break time.
Page 137 3. To import the backup file to the equipment, go to ‘System’ and click ‘Import’.
Page 138 4. Select the backup file and click ‘Save’. Then the file will be imported automatically. Export and import the program list only. Go to ‘Program Info’ and click ‘Export’ or ‘Import’ to export or import the program list. Export and import the configuration of one sub-board only. Go to the sub-board which you want to export configuration from or import configuration into, and click ‘Export’...
Page 139: O Peration Through F Ront P Anel
3.2 Operation through Front Panel For some basic operation, such as checking the equipment and sub-board information, and working status, besides using the NMS, user can also operate via the front panel control buttons and menu. For detailed configuration on each module and advanced application, it is recommended to operate via NMS.
Page 140: Front Panel Operation Procedure
Class1 Class2 Class3 Class4 Class5 Default Parameter Enable Dest Address 227.010.020.080 Channel 1 Program Setup Dest Port 01234 TS Packet TS/IP Output Channel 2-12 The same with Channel 1 Setting Program Setup Stream IP Address 192.168.001.034 Stream MAC Address A0-69-86-00-FF-FF Stream Subnet Mask 255.255.255.000 Stream Gateway...
Page 141: Chapter4 Equipment Specifications
Chapter4 Equipment Specifications Chassis Height: 1RU Dimension: 480mm x 44mm x 440mm Weight: 7.5Kg Power Supply Unit: Single PSU Max. 125W (fully loaded) AC90~240V 50/60Hz Operating Temperature: 0~50℃ (35~118°F) Storage Temperature: -10~70℃ (14~158°F) Humidity: 5%~95% Operating Altitude: 200~10000AMSL...
Page 142: Chapter5 Terminologies
Chapter5 Terminologies ASI：Asynchronous serial interface BAT：Bouquet Association Table CAT：Condition Access Table CVBS: Composite Video, Blanking, and Sync, equals to “Composite video”. DVB: Digital Video Broadcasting EIT：Event Information Table FEC：Forward Error Correction HD：High Definition HDMI：High-Definition Multimedia Interface IEC：International Electrotechnical Commission ISO：International Organization for Standardization LCD：Liquid Crystal Display QAM：Quadrature Amplitude Modulation LED：Light-emitting diode...
Page 143 PSI：Program Specific Information PSU：Power Supply Unit QPSK：Quadrature Phase-Shift Keying SD：Standard Definition SDT：Service Description Table SI：Service Information SPTS：Single Program Transport Stream TDT：Time and Date Table...

Wellav smp100 User Manual

Chapter1 Overview

Chapter2 Installation

Chapter3 Operation Guide

Chapter4 Equipment Specifications

Chapter5 Terminologies

Quick Links

Need help?

Questions and answers

Related Manuals for Wellav smp100

Summary of Contents for Wellav smp100

Table of Contents
