D-Link DUB-1312 User Manual

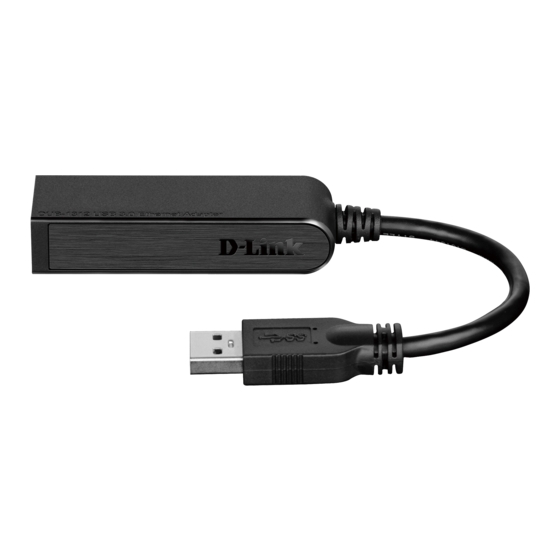

Usb 3.0 gigabit ethernet adapter
Hide thumbs
Also See for DUB-1312:
- Quick installation manual (81 pages) ,
- User manual (24 pages) ,
- Quick installation manual (25 pages)
Related Manuals for D-Link DUB-1312
Summary of Contents for D-Link DUB-1312
- Page 1 Version 1.0 | August 12, 2013 User Manual USB 3.0 Gigabit Ethernet Adapter DUB-1312...
-
Page 2: Preface
Preface D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Revision Date Description August 12, 2013 • Initial release for Revision A1... -
Page 3: Table Of Contents
Features ....................3 Technical Specifications ..............20 Hardware Overview ................4 Contacting Technical Support ............21 Software Installation ................5 Windows® 8 and 7 ................ 5 Warranty ....................22 Windows Vista® ................7 Registration ..................28 Windows® XP .................. 8 D-Link DUB-1312 User Manual... -
Page 4: Package Contents
Section 1 - Product Overview Package Contents DUB-1312 USB 3.0 Gigabit Ethernet Adapter DUB-1312 Drivers and Manual on CD-ROM Quick Installation Guide If any of the above items are missing or damaged, please contact your reseller. Minimum Requirements Computer with the following: •... -
Page 5: Introduction
Introduction The DUB-1312 USB 3.0 Gigabit Ethernet Adapter is designed to plug into an available Universal Serial Bus (USB) port on any desktop, laptop, or notebook computer running Microsoft Windows® 8,7, Vista®, XP, Mac OS® X, or Linux. Based on the USB 3.0 standard, the DUB-1312 can extend the transfer speeds of USB Fast Ethernet adapters to true one Gbps connectivity.*... -
Page 6: Features
Section 1 - Product Overview Features Designed for versatility and performance, the DUB-1312 USB 3.0 Gigabit Ethernet Adapter has the following features: • Compliant with the latest USB 3.0 specification • Backwards compatible with USB 2.0/1.1/1.0 specifications • True one Gbps network connectivity •... -
Page 7: Hardware Overview
Hardware Overview COMPONENT DESCRIPTION Ethernet Port Plug an Ethernet cable from a switch or router into this port. USB Connector Plug this connector into a USB port on your PC (use USB 3.0 for best performance). D-Link DUB-1312 User Manual... -
Page 8: Software Installation
Section 2 - Installation Software Installation Insert the CD included with the DUB-1312 into your computer’s DVD or CD drive, then proceed to the corresponding installation section according to your operating system. Skip ahead to “Windows Vista®” on page “Windows® XP” on page “Mac... - Page 9 Section 2 - Installation When the InstallShield Wizard is finished, plug the DUB-1312’s USB cable into an available USB port on your PC. Within a few seconds, Windows will detect a new device and install the device driver software automatically.
-
Page 10: Windows Vista
Section 2 - Installation Windows Vista® After you insert the CD into the CD drive, the DUB-1312 menu screen will appear. Click Install to begin the DUB-1312 driver installation. The InstallShield Wizard window will pop up. This driver does not have WHQL digitally signed certification. If you see a warning message regarding WHQL status, you must accept unsigned driver installation in order to continue. -
Page 11: Windows® Xp
Note: The DUB-1312 user interface may differ in appearance for different regions. Plug the DUB-1312’s USB cable into an available USB port on your PC. Within a few seconds, Windows will detect a new device. You will see the Found New Hardware message in the pop-up window. -
Page 12: D-Link Dub-1312 User Manual
Section 2 - Installation The Found New Hardware Wizard window will open. Select Yes, this time only and click Next to continue. Click Install the software automatically and click Next to continue. D-Link DUB-1312 User Manual... -
Page 13: D-Link Dub-1312 User Manual
Section 2 - Installation When the device driver installation is complete, proceed to “Connecting the Adapter to a Network” on page D-Link DUB-1312 User Manual... -
Page 14: Mac Os® X
Although the following screen shots were taken from Mac OS X 10.6, the steps are similar using other versions of OS X. Your operating system should be version 10.6 or above. Insert the DUB-1312 CD into your computer’s DVD or CD drive, then go to the DUB-1312 folder and navigate to \Drivers\Mac. Double-click DUB- 13X2_v1.4.0.pkg. - Page 15 You will see a reminder you that you must restart your computer once the installation has been completed. Click Continue Installation to proceed. The computer will then restart itself after the installation is complete. Proceed “Connecting the Adapter to a Network” on page 15. D-Link DUB-1312 User Manual...
-
Page 16: Linux 2.6.14
5. If the compilation is successful, the DUB-13X2.ko will be created under the current directory. If you wish to use the modprobe command to mount the driver, execute the following command to install the driver: [root@localhost template]# make install D-Link DUB-1312 User Manual... - Page 17 If you wish to load the driver manually, go to the driver directory and execute the following commands: [root@localhost template]# modprobe usbnet [root@localhost template]# insmod DUB-13X2.ko If you wish to unmount the driver, execute the following command: [root@localhost anywhere]# rmmod DUB-13X2 Proceed to “Connecting the Adapter to a Network” on page D-Link DUB-1312 User Manual...
-
Page 18: Connecting The Adapter To A Network
Section 2 - Installation Connecting the Adapter to a Network 1. Attach an Ethernet cable to the Ethernet port on the DUB-1312. 2. Attach the other end of the Ethernet cable to your network switch or router. Note: If your switch or router has ports with gigabit capability, make sure you use one of these ports to achieve maximum data transfer speeds. -
Page 19: Completing The Installation
After installation, the Connection Speed LED on the DUB-1312 will illuminate solid orange only if the device is connected to a 1 Gbps network. It will remain off if the DUB-1312 is connected to a 10/100 Mbps network. The Link/ACT LED will be solid green when a connection is present, and will flash green when data is being transmitted or received. -
Page 20: Troubleshooting
• Ensure that the DUB-1312 is plugged in to a USB 3.0 port, and that the drivers for this port are correctly installed. • Check your network cable. A cable with specification for Category 5e (enhanced) or above is required for gigabit speeds, with a maximum length of 100 metres. - Page 21 • The D-Link USB DUB-1312 should appear with a green and gold network adapter symbol. Note: If the D-Link USB DUB-1312 appears in the Device Manager with a bright yellow ! (exclamation mark) or a red x, there may be a hardware conflict.
- Page 22 [root@localhost template]# lsmod | grep DUB_13X2 Then you should get a reply similar to the following lines: DUB_13X2 DUB_13X2 22667 0 Usbnet 25214 1 DUB_13X2 If you have a problem installing the D-Link DUB-1312 USB driver, please contact D-Link Technical Support. D-Link DUB-1312 User Manual...
-
Page 23: Technical Specifications
POWER • Bus powered 0.5 A @ 5 V DC PACKAGE CONTENTS • DUB-1312 USB 3.0 Gigabit Ethernet Adapter DIMENSIONS (W X D X H) • Quick Installation Guide • 2.87 x 0.84 x 0.79 inches (73 x 21.3 x 20 mm) •... -
Page 24: Contacting Technical Support
• Hardware Revision (located on the label on the bottom of the adapter (e.g. rev A1)) • Serial Number (s/n located on the label on the bottom of the adapter). You can find software updates and user documentation on the D-Link website as well as frequently asked questions and answers to technical issues. -
Page 25: Warranty
Any repair or replacement will be rendered by D-Link at an Authorized D-Link Service Office. The replacement hardware need not be new or have an identical make, model or part. D-Link may, at its option, replace the defective Hardware or any part thereof with any reconditioned product that D-Link reasonably determines is substantially equivalent (or superior) in all material respects to the defective Hardware. -
Page 26: Limited Software Warranty
D-Link further warrants that, during the Software Warranty Period, the magnetic media on which D-Link delivers the Software will be free of physical defects. The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under this Limited Warranty will be, at D-Link’s option, to replace the non-conforming Software (or defective media) with software that substantially conforms to D-Link’s... - Page 27 • USA residents send to 17595 Mt. Herrmann, Fountain Valley, CA 92708. D-Link will not be held responsible for any packages that are lost in transit to D-Link. The repaired or replaced packages will be shipped to the customer via UPS Ground or any common carrier selected by D-Link.
-
Page 28: Limitation Of Liability
Appendix C- Warranty While necessary maintenance or repairs on your Product can be performed by any company, we recommend that you use only an Authorized D-Link Service Office. Improper or incorrectly performed maintenance or repair voids this Limited Warranty. Disclaimer of Other Warranties: EXCEPT FOR THE LIMITED WARRANTY SPECIFIED HEREIN, THE PRODUCT IS PROVIDED “AS-IS”... -
Page 29: Copyright Statement
No part of this publication or documentation accompanying this product may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as stipulated by the United States Copyright Act of 1976 and any amendments thereto. -
Page 30: Industry Canada Statement
The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. For detailed warranty information applicable to products purchased outside the United States, please contact the corresponding local D-Link office. -
Page 31: Registration
Appendix D - Registration Registration Product registration is entirely voluntary and failure to complete or return this form will not diminish your warranty rights. Version 1.0 August 12, 2013 D-Link DUB-1312 User Manual...
