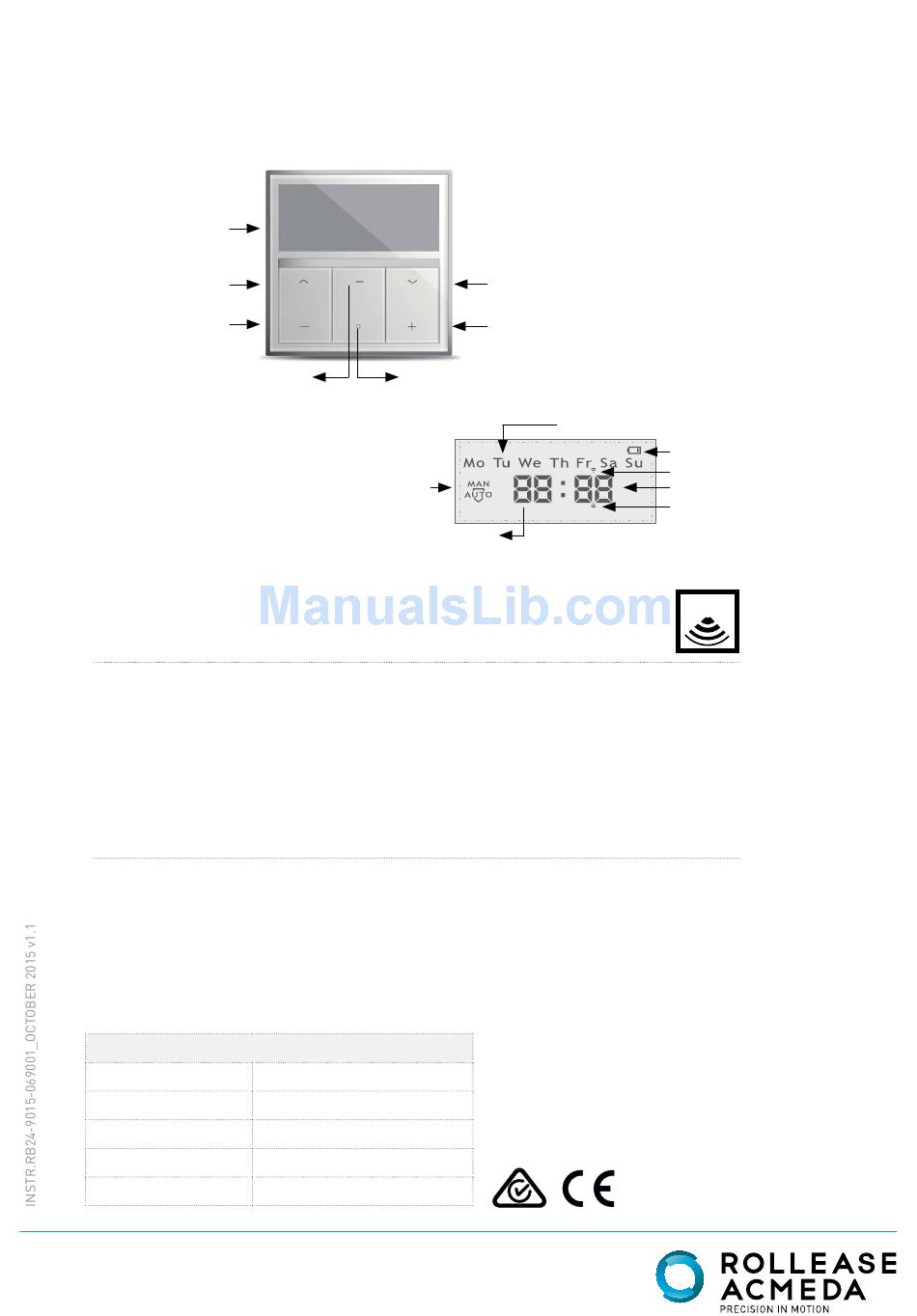

A U TO M AT E R F 4 0 1 s R E M OT E IN STRU CTI O NS
RF401s Single Channel Remote Control / With Timer
LCD Screen
CH (-)
TIME SETTING BUT-
D ES C R IPT IO N
AUTOMATE RF401s is a Single channel 433MHz wall mounted control-
ler compatible with the AUTOMATE EL motor range. It includes a daily
Timer Function and large LCD display.
CO N T EN T S
•
Wall mount transmitter
•
Magnetic holder & fixing screws
•
Instruction Manual
•
3V - CR2430 Battery
TECHNICAL SPECIFICATIONS
Voltage:
Frequency:
Transmitting Power:
Operating Temperature:
Transmission Distrance:
Page. 1 of 8
P/N: RB24-9015-069001
UP
STOP
MANUAL / AUTO / RANDOM MODE
3V (CR2430)
433.92 MHz
10 milliwatt
-5˚C - 50˚C
up to 200 meters (open space)
DOWN
CH (+)
TIME CONFIRMATION BUT-
MODE BUTTON
WEEK
HOUR
POWER
UP COMMAND
MINUTE
DOWN COMMAND
433MHz
