Flueing Installation Instructions for
Internally installed Water Heater
Models REU V2632FFU / REU V2632FFUC
This Flue shall be installed in accordance with: -
Manufacturer's Installation Instructions
Local Gas Fitting Regulations
Municipal Building Codes
AGA Installation Code for Gas Burning Equipment
Any other relevant Statutory Regulation
This appliance and flue system must be installed,
serviced and removed by an Authorised Person.
UP
UP
UP
Distributed and Serviced in Australia under a Quality
system certified as complying with ISO 9002 by
Standards Australia Quality Assurance Services
.
Advertisement
Table of Contents
Related Manuals for Rinnai REU V2632FFUC
Summary of Contents for Rinnai REU V2632FFUC
- Page 1 Flueing Installation Instructions for Internally installed Water Heater Models REU V2632FFU / REU V2632FFUC This Flue shall be installed in accordance with: - Manufacturer’s Installation Instructions Local Gas Fitting Regulations Municipal Building Codes AGA Installation Code for Gas Burning Equipment...
-
Page 2: Table Of Contents
4. The Required clearances of the Internal Rinnai Infinity when installed as a single unit are shown in Fig.1A The appliances are AGA certified to be installed side by side as shown on page 7, allowing a Minimum distance between flues. -
Page 3: Flueing Options
(It is important to use soft soap, e.g.: Liquid hand soap, as hard FFROOFCOWL FFROOFCOWL detergents may damage the seals and PVC outer section). Rinnai recommend 100 mm of Minimum Minimum pipe (gas and water) section Clearance Clearance between the isolating valves and... -
Page 4: Direct Flueing With Wall Terminal
1. This option (Fig.2) can be used when the water heater is mounted against an internal wall and flueing needs to extend horizontally to exit an external wall. The Rinnai Infinity 'Direct Flueing components' must be used for this purpose, together with extension pieces & bends as required. Total flue length can be up to 9 metres long &... -
Page 5: Vertical Straight Flueing With Roof Terminal

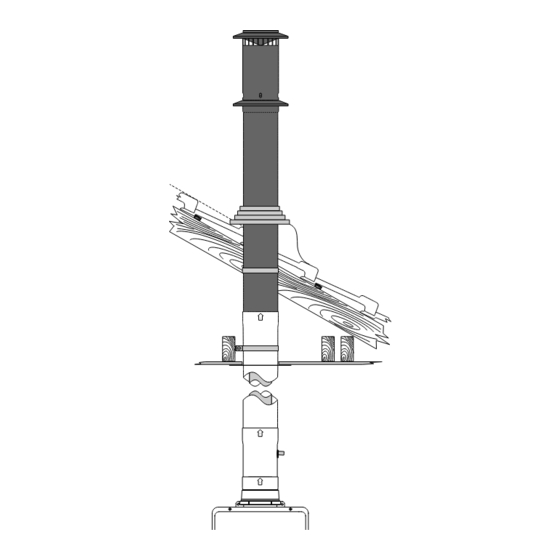

3. Vertical Straight Flueing With Roof Terminal This option can be used when the water heater needs to be flued vertically through the roof. The Rinnai Infinity 'Vertical Flueing Components' with extension pieces and condensate trap (if necessary) is used for this purpose. -
Page 6: Combination Vertical / Horizontal Installations
Flueing Installation Instructions 4. Combination Vertical & Horizontal Installations The Rinnai Infinity can be installed virtually anywhere using a wall or roof terminal, extension pieces (mounted horizontally and vertically), bends, adaptors and condensate traps as required. Dimensions and clearances of the Vertical Flue Terminal when installed in the roof are as shown in (Fig.4). -
Page 7: Multiple Vertical / Horizontal Installations
3. Ensure all ends are cut square (The use of a mitre box will ensure a clean square cut). 4. Ensure all cut ends are free from debris and burrs. FFROOFCOWL FFCONDK Penetration Required length Fig.9 Fig.8 Rinnai Australia Pty Ltd 20/08/2003 Page 7 of 10... -
Page 8: Condensate Drain
The condensate trap will collect condensate from the flue system. This condensate must be drained to the outside of the building via a condensate drain pipe. Because the condensate is mildly acidic, Rinnai recommend Clipsal 16mm rigid Grey UPVC or equivalent conduit and associate fittings: Grey UPVC Pipe (Catalogue number 9016MD), 90°... -
Page 9: Flue Dimensions & Part Numbers
Elbow 90 Degrees FFBEND90 9314109107647 Condensate Trap FFCONDK 9314109107708 Flue Pipe 1000mm length FFPIPE1000 9314109107061 Horizontal Flue Terminal FFWALLTERM 9314109107685 Vertical Flue Terminal FFROOFCOWL 9314109107678 Ceiling Ring FFWSEAL 9314109107722 Wall Plate FFWPLATE 9314109107715 Rinnai Australia Pty Ltd 20/08/2003 Page 9 of 10... -
Page 10: Minimum Flue Clearances
