Drylam Fujipla LPE-6510 Quick Start Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Fujipla LPE-6510 Laminator
Quick Start Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fujipla LPE-6510 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Drylam Fujipla LPE-6510

Summary of Contents for Drylam Fujipla LPE-6510

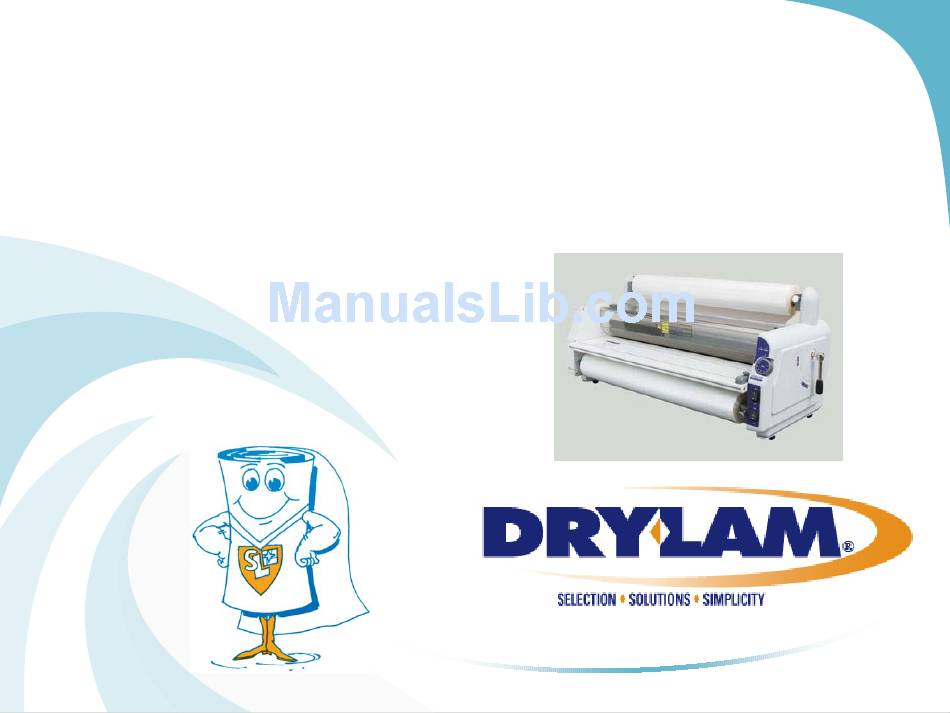

  • Page 1 Fujipla LPE-6510 Laminator Quick Start Guide...

  • Page 2: Getting Started

    If shipment is necessary for laminator repair, you will need to repack the  laminator in its original box. Call for help  During set-up or for problems and questions, call DryLam toll free at 888-  633-1973 We recommend you read the entire operators manual ...
  • Page 3 Film Supply Shafts (also called film mandrels) Film Supply shafts have adjustable  clips in center to allow for variance in film roll cores that are too large or too small. There are 2 clips on each shaft and  are adjustable.

  • Page 4: Loading Film

    Loading Film Insert Film shaft into roll film. Core clip on  top of shaft should point towards you. Film should be positioned so the film unrolls  off of the bottom side of the roll. If film is loaded on the supply shafts properly, ...
  • Page 5 Loading Film Film rolls on shafts should be  dropped into supply shaft holders on top and bottom of the machine. Make sure film adhesive side (dull  side) is facing out away from heat shoes. Prepare to thread film by reviewing ...

  • Page 6: Film Threading

    Film Threading Top roll of film goes on top of the top idler  bar. Bottom roll film goes behind and under the  bottom idler bar.
  • Page 7 Film Threading Overlap top and bottom films across  the heat shoes. Top film should extend down just  below the top heat shoe. Pull bottom film up to just over the  top heat shoe and press it against the top roll film to stick it in place.
  • Page 8 Film Threading Insert threading card into the nip  opening of the laminator pushing the overlapped film in between the heat shoes into the rollers, also called the nip. Laminator rollers should be open at the  time you push in the threading card. Close laminating nip rollers by rotating ...
  • Page 9 Film Threading Advance laminator by pushing  forward on the drive switch. Film threading card should exit  within 10 seconds at the rear of the machine. If card does not appear in 10  seconds, stop machine as a wrap could be occurring.
  • Page 10 Film Threading Continue advancing the film web  until threading card is fully exited. Adjust brake tension on laminator  by rotating set screws until contact is made of the screw to the nylon brake then turn 1 ½ turns further clockwise.
  • Page 11 Film Threading Continue advancing film web  through laminator until most wrinkling coming across heat shoe clears prior to going into the nip rollers. Adjust film tension with set  screws located on the right of the laminator near the film supply shafts to help smooth wrinkles.
  • Page 12 Resources Additional Resources are available:  Web site: www.drylam.com  Owners Manuals  Maintenance Manuals  Videos  Toll Free: 888-633-1973  YouTube: www.youtube.com/drylam ...
