Onix AUHR-014 Instruction Manual

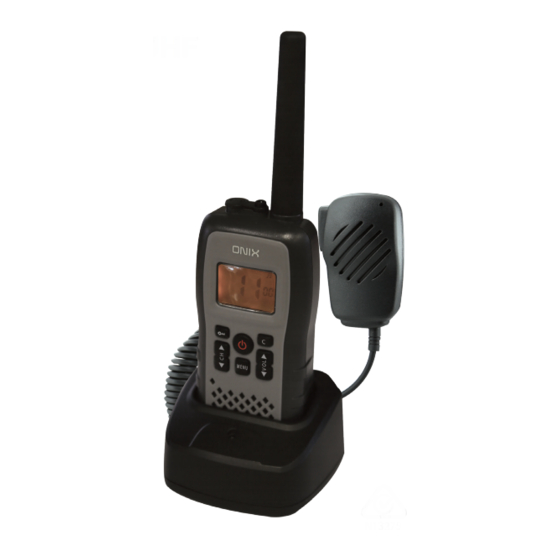

Handheld uhf
Hide thumbs

Advertisement

Table of Contents

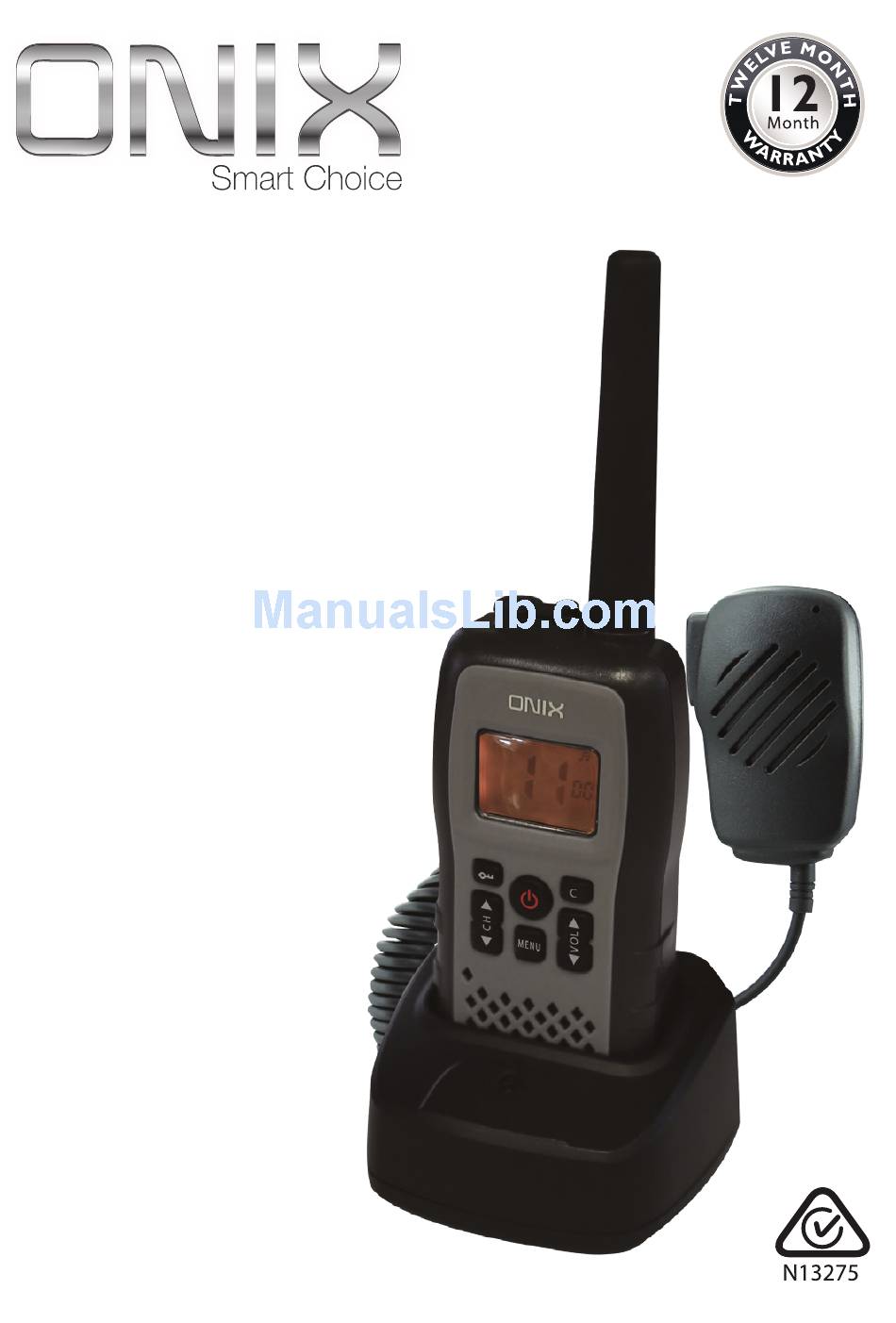

Handheld UHF
CB Radio
Instruction Manual
Model: AUHR-014
Customer Helpline
1300 886 649

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AUHR-014 and is the answer not in the manual?

Questions and answers

Related Manuals for Onix AUHR-014

Summary of Contents for Onix AUHR-014

  • Page 1 Handheld UHF CB Radio Instruction Manual Model: AUHR-014 Customer Helpline 1300 886 649...

  • Page 2: Welcome

    Welcome Congratulations on choosing to buy an ONIX® product. All ® products brought to you by Onix are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty.

  • Page 3: Table Of Contents

    Contents Welcome General Safety Instructions Product Overview Features Getting Started Instructions Channels and Frequencies FAQs Technical Specifications www.tempo.org 1300 886 649 Model: AUHR-014 Product Code: 49203 03/2015...

  • Page 4: General Safety Instructions

    • If your radio is exposed to salt water, clean your radio thoroughly with fresh water, and dry it before turning it on. www.tempo.org 1300 886 649 Model: AUHR-014 Product Code: 49203 03/2015...

  • Page 5: Product Overview

    1 Earpiece Microphone 2 Car Adaptor 3 Protective Cover/Carry Case 4 Handheld UHF CB Radio 5 Speaker Microphone 6 Charging Cradle Also included, but not pictured: Belt Clip AC Adaptor www.tempo.org 1300 886 649 Model: AUHR-014 Product Code: 49203 03/2015...
  • Page 6 14 Volume up button 6 External VOX-microphone jack 15 Volume down button 7 Key lock button 16 Menu button 8 Channel up button 17 Built-in speaker 9 Channel down button www.tempo.org 1300 886 649 Model: AUHR-014 Product Code: 49203 03/2015...
  • Page 7 J REP icon - illuminates when the repeater function is activated K Selected channel indication (1-80) L Stop watch function icon M Power save function icon N Roger beep function icon O Battery status indicator www.tempo.org 1300 886 649 Model: AUHR-014 Product Code: 49203 03/2015...

  • Page 8: Features

    Features The AUHR-014 is a portable two-way UHF CB radio. It is compact, rugged and fits easily in your hand. This handheld UHF radio will give you consistent, outstanding performance in virtually all conditions and situations. To ensure you get the most from all its features, please read these instructions carefully before use.

  • Page 9: Getting Started

    LCD, the battery capacity is low and you need to recharge the battery. Charging the Battery The AUHR-014 must be used with its original charger base and AC adaptor or car adaptor. • Make sure the unit is turned off.
  • Page 10 • Lithium Ion batteries must be disposed of properly. Consult your local recycling authorities for proper disposal instructions. • Do not dispose of the battery pack in a fire. Doing so may cause an explosion. www.tempo.org 1300 886 649 Model: AUHR-014 Product Code: 49203 03/2015...
  • Page 11 Getting Started (Cont.) Replacing the Supplied Lithium Ion Battery The AUHR-014 comes with a rechargeable Li-Ion battery pack pre- installed. In case you need to replace the battery pack, follow the instructions below: To remove the battery: • Unscrew the screw and then remove the battery cover.
  • Page 12 Connecting the VOX Microphone or Speaker Microphone To use either one of these accessories, simply plug it into the VOX- microphone socket on top of the radio. www.tempo.org 1300 886 649 Model: AUHR-014 Product Code: 49203 03/2015...

  • Page 13: Instructions

    RX icon will be displayed. • Press the CHANNEL UP/DOWN button once to select the desired channel (1 - 80) • Press and hold the CHANNEL UP/DOWN button to move faster through the selection. www.tempo.org 1300 886 649 Model: AUHR-014 Product Code: 49203 03/2015...
  • Page 14 (channels 1-8 and 41-48). • Channel 11 is the customary calling channel in Australia for establishing communication. • Channel 40 is the customary road vehicle channel. www.tempo.org 1300 886 649 Model: AUHR-014 Product Code: 49203 03/2015...
  • Page 15 When the repeater function is on, the REP icon will be illuminated on the LCD. Only use this function for extending your communication range when you know the channel of the repeater facility in your area. www.tempo.org 1300 886 649 Model: AUHR-014 Product Code: 49203 03/2015...
  • Page 16 If it senses no signal within 10 seconds, it automatically switches to the power save mode and the Power Save icon will appear on the LCD. The radio can still receive transmission in this mode. www.tempo.org 1300 886 649 Model: AUHR-014 Product Code: 49203 03/2015...
  • Page 17 Transmitter RF Power Setting Your radio has a HI/LO Power selection function. This function is very convenient to reduce the current drain and extend the battery life when communicating within a short distance. www.tempo.org 1300 886 649 Model: AUHR-014 Product Code: 49203 03/2015...
  • Page 18 VOX level starts flashing on the LCD. • Press the CH UP or CH DOWN buttons to select the level of sensitivity (from 01 to 05). The VOX level 05 indicates the highest VOX sensitivity. www.tempo.org 1300 886 649 Model: AUHR-014 Product Code: 49203 03/2015...
  • Page 19 It will restart when no more signal is detected on that channel. • If you press the PTT or LOCK buttons during the scanning operation, scanning will stop automatically and the radio will return to the last used channel. www.tempo.org 1300 886 649 Model: AUHR-014 Product Code: 49203 03/2015...
  • Page 20 • To confirm the selection and exit the Menu mode, press the LOCK or MENU button to move to the next function. • Press the C (Call tone) button to transmit the call tone melody. www.tempo.org 1300 886 649 Model: AUHR-014 Product Code: 49203 03/2015...
  • Page 21 • To confirm the selection and exit the Menu mode, press the LOCK or MENU button to move to the next function. • When the keypad tone is enabled, the tone icon appears on the LCD. www.tempo.org 1300 886 649 Model: AUHR-014 Product Code: 49203 03/2015...
  • Page 22 DOWN button to stop the function. The radio can still operate in this mode. • To reset the timer, press the CH DOWN button twice. • To exit to Stand-by mode, press the LOCK button. www.tempo.org 1300 886 649 Model: AUHR-014 Product Code: 49203 03/2015...

  • Page 23: Channels And Frequencies

    476.7250 477.2250 476.7500 477.2500 476.7750 ~# 35 477.2750 476.8000 477.3000 476.8250 477.3250 476.8500 477.3500 476.8750 477.3750 476.9000 477.4000 The notes (*, ~, #, +, ++) are explained on page 25. www.tempo.org 1300 886 649 Model: AUHR-014 Product Code: 49203 03/2015...
  • Page 24 476.7125 477.2125 476.7375 477.2375 476.7625 477.2625 476.7875 477.2875 476.8125 477.3125 476.8375 477.3375 476.8625 477.3625 476.8875 477.3875 476.9125 477.4125 The notes (*, ~, #, +, ++) are explained on page 25. www.tempo.org 1300 886 649 Model: AUHR-014 Product Code: 49203 03/2015...
  • Page 25 ACMA Radio Communications (Citizens Band Radio Stations) Class Licence and in New Zealand by MED General User Radio Licence for Citizens Band Radio and operation is subject to conditions contained in those licences. www.tempo.org 1300 886 649 Model: AUHR-014 Product Code: 49203 03/2015...

  • Page 26: Faqs

    1.5m apart. • The radios may be too far apart, or obstacles may interfere with transmission. The talk range is up to 10km in clear, unobstructed conditions. www.tempo.org 1300 886 649 Model: AUHR-014 Product Code: 49203 03/2015...

  • Page 27: Technical Specifications

    The list of currently authorized channels can be obtained from the ACMA website in Australia and the MED website in New Zealand. www.tempo.org 1300 886 649 Model: AUHR-014 Product Code: 49203 03/2015...
  • Page 28 After Sales Support Centre on 1300 886 649 before returning it to the store for a refund. www.tempo.org www.tempo.org 1300 886 649 1300 886 649 Model: AUHR-014 Product Code: 49203 03/2015 Model: AUHR-014 Product Code: 49203 03/2015...
